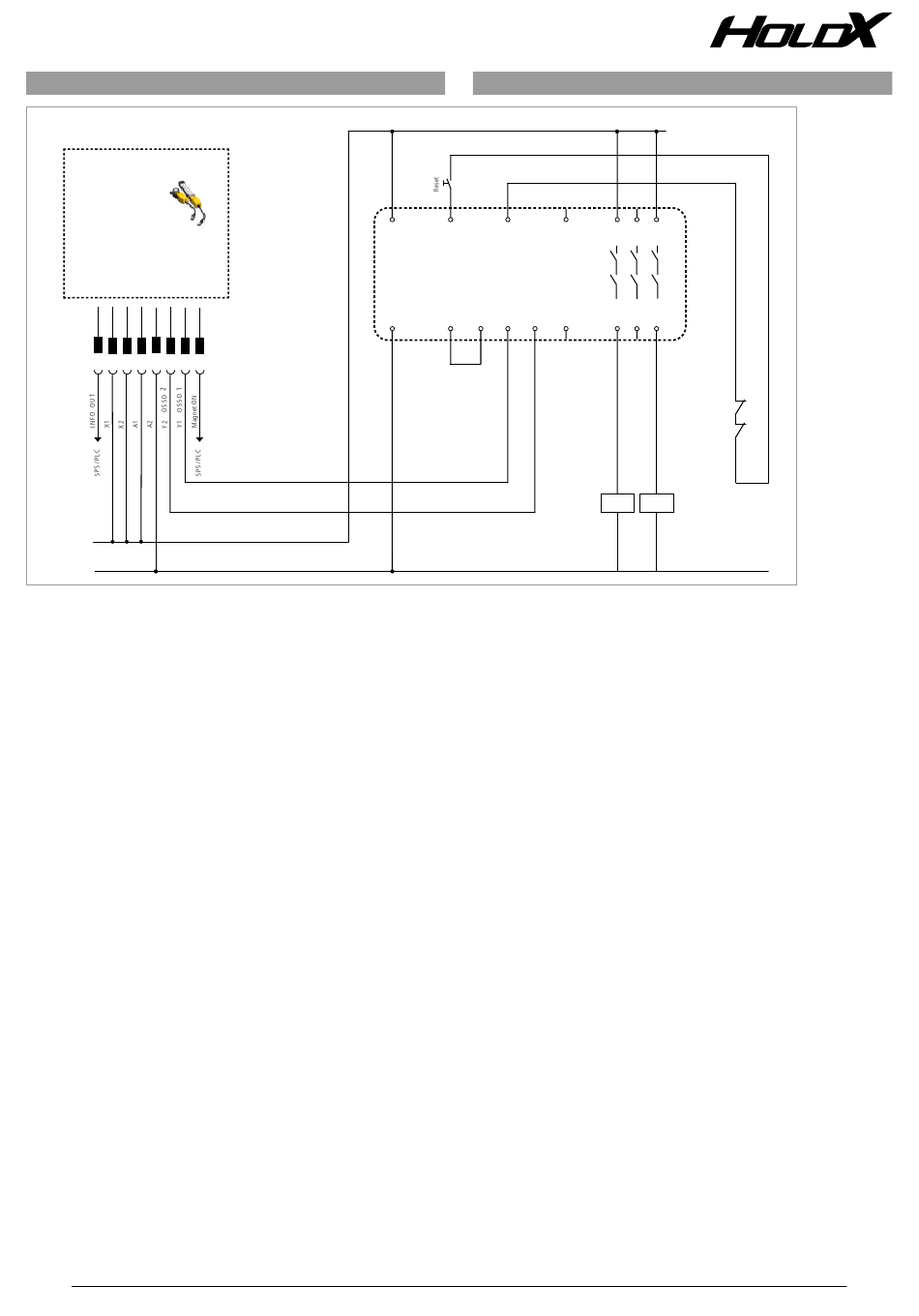

Fig.16: Connection example 2
Connection HOLDX RL1-P8-S-B-S0129, HOLDX RL1-P8-W-B-S0131, safety relay S series with manual reset.
The inputs X1 and X2 are connected with 24 VDC. Outputs Y1 and Y2 are connected to the SSP safety relay S series. Two contactors are connected to the safety relay and monitored in the
reset input of the safety relay. The diagnosis output pin 5 and the input magnet ON can be connected e.g. to a PLC.
