tell Gate Control PRO 4G.IN4.R2 Inbetriebsetzung Seite 4

Inhaltsverzeichnis

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

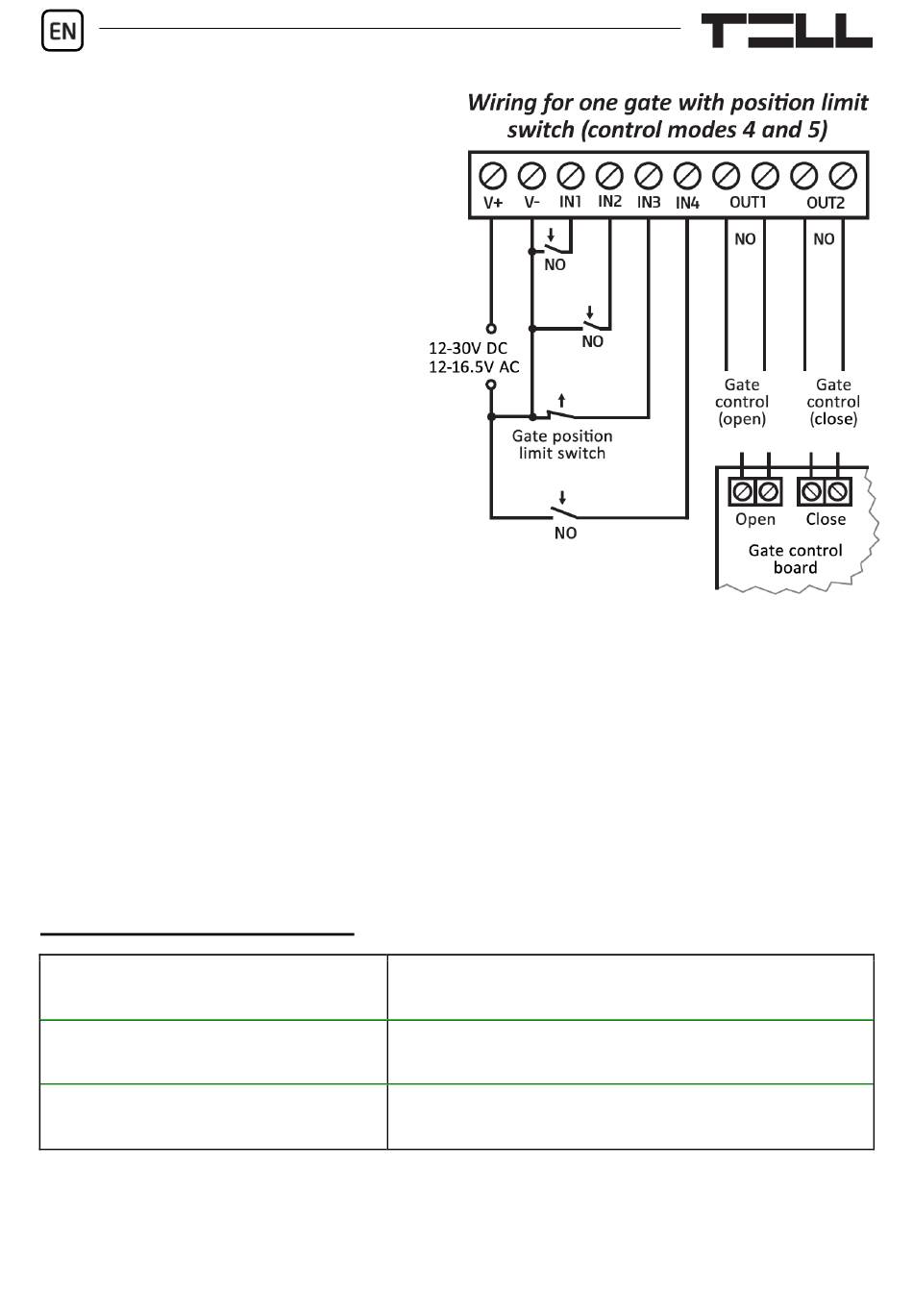

Control mode 4:
- For
single-gate
that require triggers for opening
and closing on different inputs.
- Opening and then closing by a
single call/control command.
- Both outputs are normally open
(NO).
- The opening trigger signal is
provided by output OUT1, and
the closing trigger signal is
provided by output OUT2.
- Holding the gate locked in open
state permanently on a second
call/control command.
- The gate position limit switch
can be connected to input IN3.
Control mode 5:
- For single-gate automations that require triggers for opening and closing on
different inputs.
- Opening and then closing by separate calls/control commands.
- Both outputs are normally open (NO).
- The opening trigger signal is provided by output OUT1, and the closing trigger
signal is provided by output OUT2.
- The gate position limit switch can be connected to input IN3.
-> Chapter 3, 5.2.4 and 5.2.8 of the Installation and Application Manual.
STATUS LED SIGNALS:
Slowly flashing green
Flashing red
Permanent red
automations
Normal operation,
connected to the mobile or WiFi network
The mobile or WiFi service is unavailable,
or system startup/restart is in progress
SIM card error
(only for the product variants with a modem)
4
