Gate Control PRO – 4G/2G/WiFi Quick Guide
- A control call/command only opens the gate. Closing must be done
automatically by the gate automation control board.
Control mode 2:
- For one or two gates, or one gate with two opening options (partial/ total
opening).
- Both outputs are normally open (NO).
- Both outputs are controlled by call with caller identification as configured
(OUT1 only, OUT2 only, or both at the same time).
- You can control both outputs separately with the mobile app.
- Output control permission can be configured separately for each user and
each output.
- Gate position limit switches can be connected to inputs IN3 (for gate No. 1)
and IN4 (for gate No. 2).
- A control call/command only opens the gate. Closing must be done
automatically by the gate automation control board.

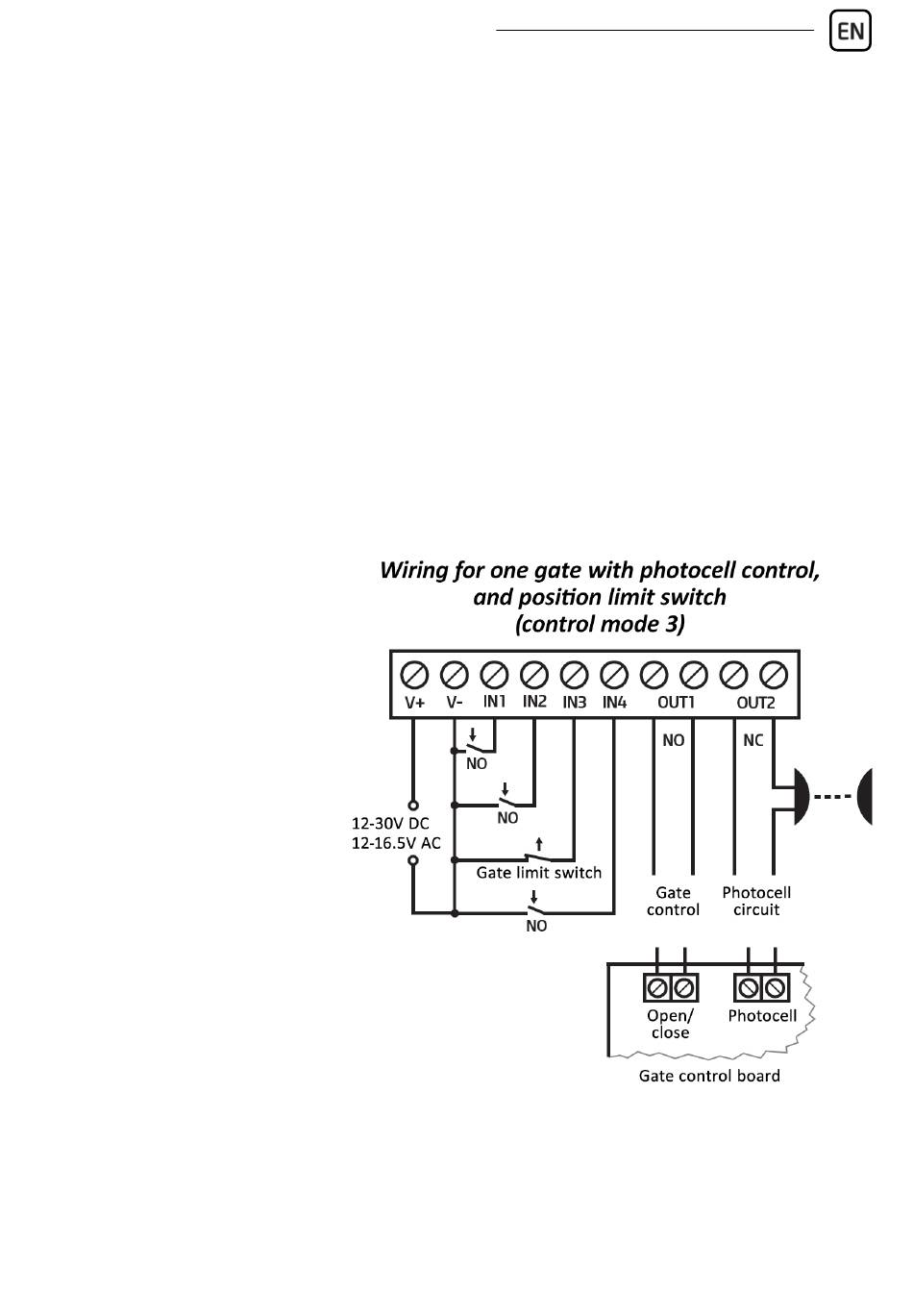

Control mode 3:
- For single-gate
mations that
triggers for opening and
closing on the same
input.
- Opening and
closing by
call/control command.
- Output OUT1
normally open
while OUT2 is normally
closed (NC).
- Output OUT1 is used to
control the gate, while
OUT2 is used
interrupt the photocell
sensor circuit, thereby
providing an option to
hold the gate locked in
open state for the configured period.
- Holding the gate locked in open state permanently on a second call/control
command.
- The gate position limit switch can be connected to input IN3.
auto-
require
then
a single
is
(NO),
to
