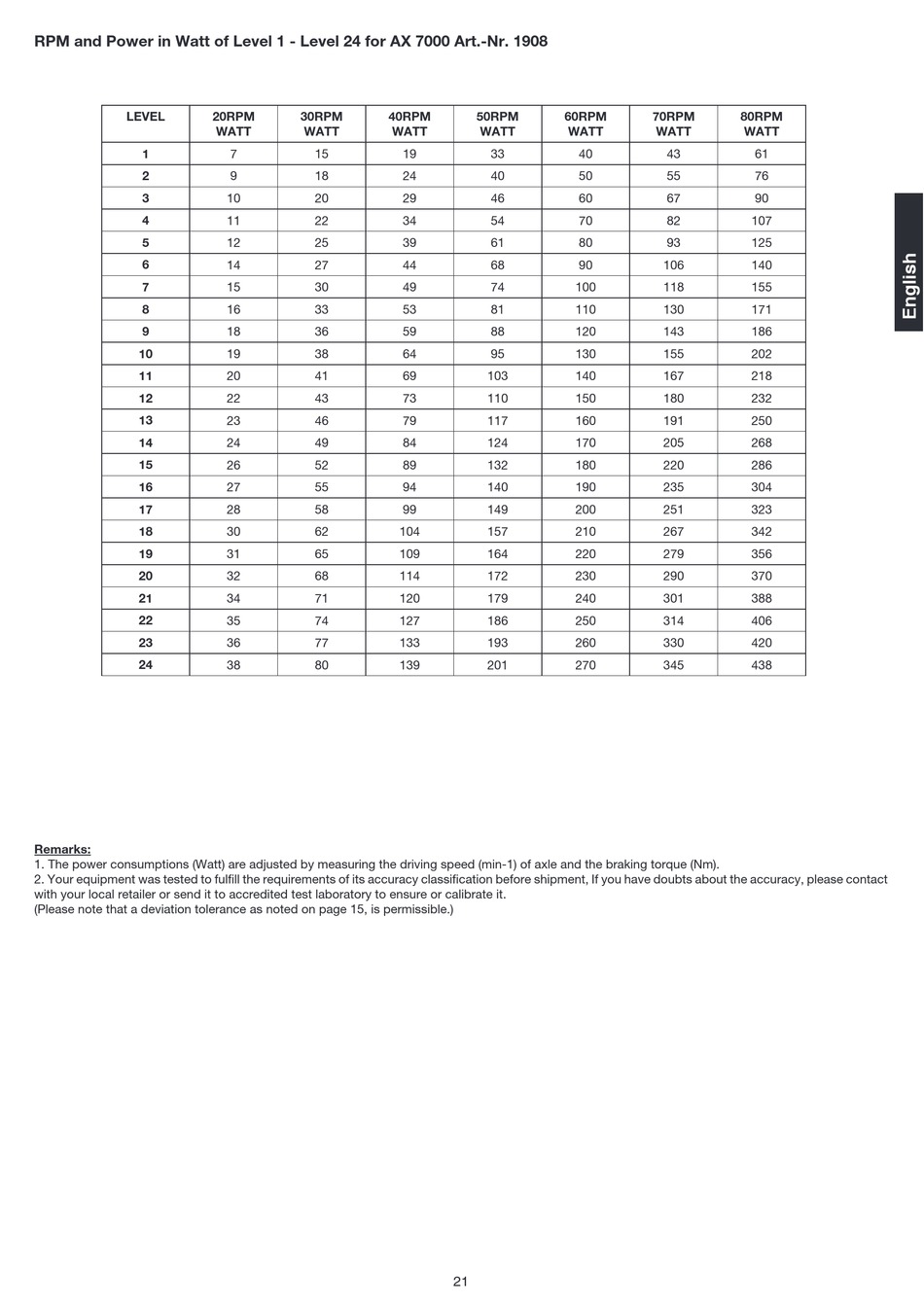

RPM and Power in Watt o Level 1 - Level 24 or AX 7000 Art.-Nr. 1908
LEVEL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Remarks:
1. The power consumptions (Watt) are adjusted by measuring the driving speed (min-1) o axle and the braking torque (Nm).
2. Your equipment was tested to ulll the requirements o its accuracy classication beore shipment, I you have doubts about the accuracy, please contact
with your local retailer or send it to accredited test laboratory to ensure or calibrate it.
(Please note that a deviation tolerance as noted on page 15, is permissible.)
20RPM 30RPM
WATT WATT
7 15
9 18
10 20
11 22
12 25
14 27
15 30
16 33
18 36
19 38
20 41
22 43
23 46
24 49
26 52
27 55
28 58
30 62
31 65
32 68
34 71
35 74
36 77
38 80
40RPM 50RPM
WATT WATT
19 33
24 40
29 46
34 54
39 61
44 68
49 74
53 81
59 88
64 95
69 103
73 110
79 117
84 124
89 132
94 140
99 149
104 157
109 164
114 172
120 179
127 186
133 193
139 201
21
60RPM 70RPM
WATT WATT
40 43
50 55
60 67
70 82
80 93
90 106
100 118
110 130
120 143
130 155
140 167
150 180
160 191
170 205
180 220
190 235
200 251
210 267
220 279
230 290
240 301
250 314
260 330
270 345
80RPM
WATT
61
76
90
107
125
140
155
171
186
202
218
232
250
268
286
304
323
342
356
370
388
406
420
438
