Commend G15-TEL Kurzanleitung

G15-TEL
Telephone interface card for connecting the Intercom Server GE 150 to an analogue PABX subscriber or
to a standard telephone line.

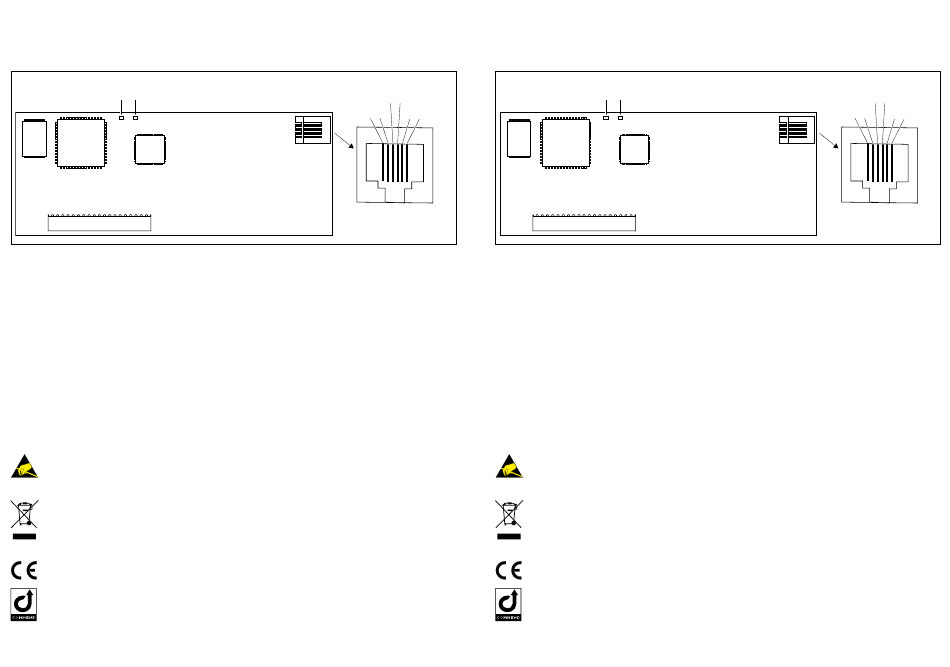

Connection diagram
Status LEDs
Run Line
Installation
The G15-TEL can be inserted into the slots "1" to "10" .
Installation reference for Germany
The G15-TEL may be connected to an analogue telephone connection only as single dialling
equipment. For this, use a F-coded TAE plug.
Extent of supply
• Telephone interface
• Connection cable (3 m/9.8 ft)
• Short reference
Safety warnings
• The G15-TEL shall be installed or replaced by trained and qualified personnel only.
• Cards may be exchanged only with voltage switched off.
• Before using the G15-TEL, ensure all cables are connected correctly and not damaged.
• Do not make any unauthorised modifications to the G15-TEL.
• In the event of problems, contact your equipment supplier in the first instance.
Observe the precautions for handling of electrostatic sensitive devices.
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or commercial
waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is applicable
in the European Union member states.
Manufacturer's reference
This device complies with the European directives listed below by fulfilling corresponding
standards:
• Electromagnetic compatibility (directive 2014/30/EU)
• The restriction of the use of certain hazardous substances in electrical and electronic
equipment (directive 2011/65/EU)
For technical specifications, see the respective manual.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
Type: D-BZ-G15-TEL, Version: 2.0/0317 Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
G15-TEL
Telephone interface card for connecting the Intercom Server GE 150 to an analogue PABX subscriber or
to a standard telephone line.
Connection diagram
Connection telephone line
A B
NC NC
NC NC
NC = not connected
