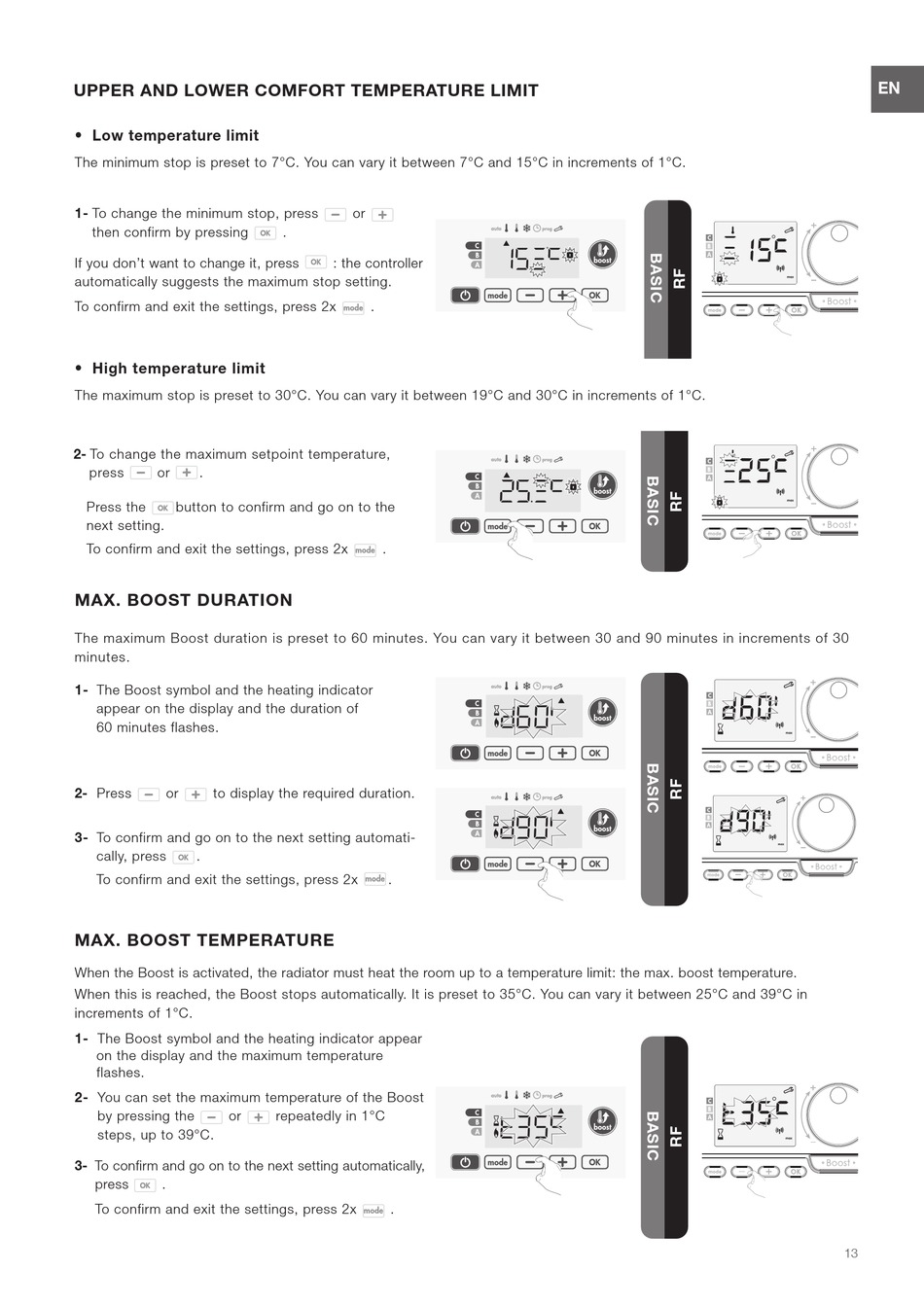

UPPER AND LOWER COMFORT TEMPERATURE LIMIT
• Low temperature limit
The minimum stop is preset to 7°C. You can vary it between 7°C and 15°C in increments of 1°C.
1- To change the minimum stop, press
then confirm by pressing
If you don't want to change it, press
automatically suggests the maximum stop setting.
To confirm and exit the settings, press 2x
• High temperature limit
The maximum stop is preset to 30°C. You can vary it between 19°C and 30°C in increments of 1°C.
2- To change the maximum setpoint temperature,
press or .
Press the button to confirm and go on to the
next setting.
To confirm and exit the settings, press 2x
MAX. BOOST DURATION
The maximum Boost duration is preset to 60 minutes. You can vary it between 30 and 90 minutes in increments of 30
minutes.
1- The Boost symbol and the heating indicator
appear on the display and the duration of
60 minutes flashes.
2- Press or to display the required duration.
3- To confirm and go on to the next setting automati-
cally, press .
To confirm and exit the settings, press 2x
MAX. BOOST TEMPERATURE
When the Boost is activated, the radiator must heat the room up to a temperature limit: the max. boost temperature.
When this is reached, the Boost stops automatically. It is preset to 35°C. You can vary it between 25°C and 39°C in
increments of 1°C.
1- The Boost symbol and the heating indicator appear
on the display and the maximum temperature
flashes.
2- You can set the maximum temperature of the Boost
by pressing the or
steps, up to 39°C.
3- To confirm and go on to the next setting automatically,
press .
To confirm and exit the settings, press 2x
or
.
: the controller
.
.
.
repeatedly in 1°C
.
EN
15 c
O
25 c
O
d60 d60
d90 d90
t35 c
O
t35
13
