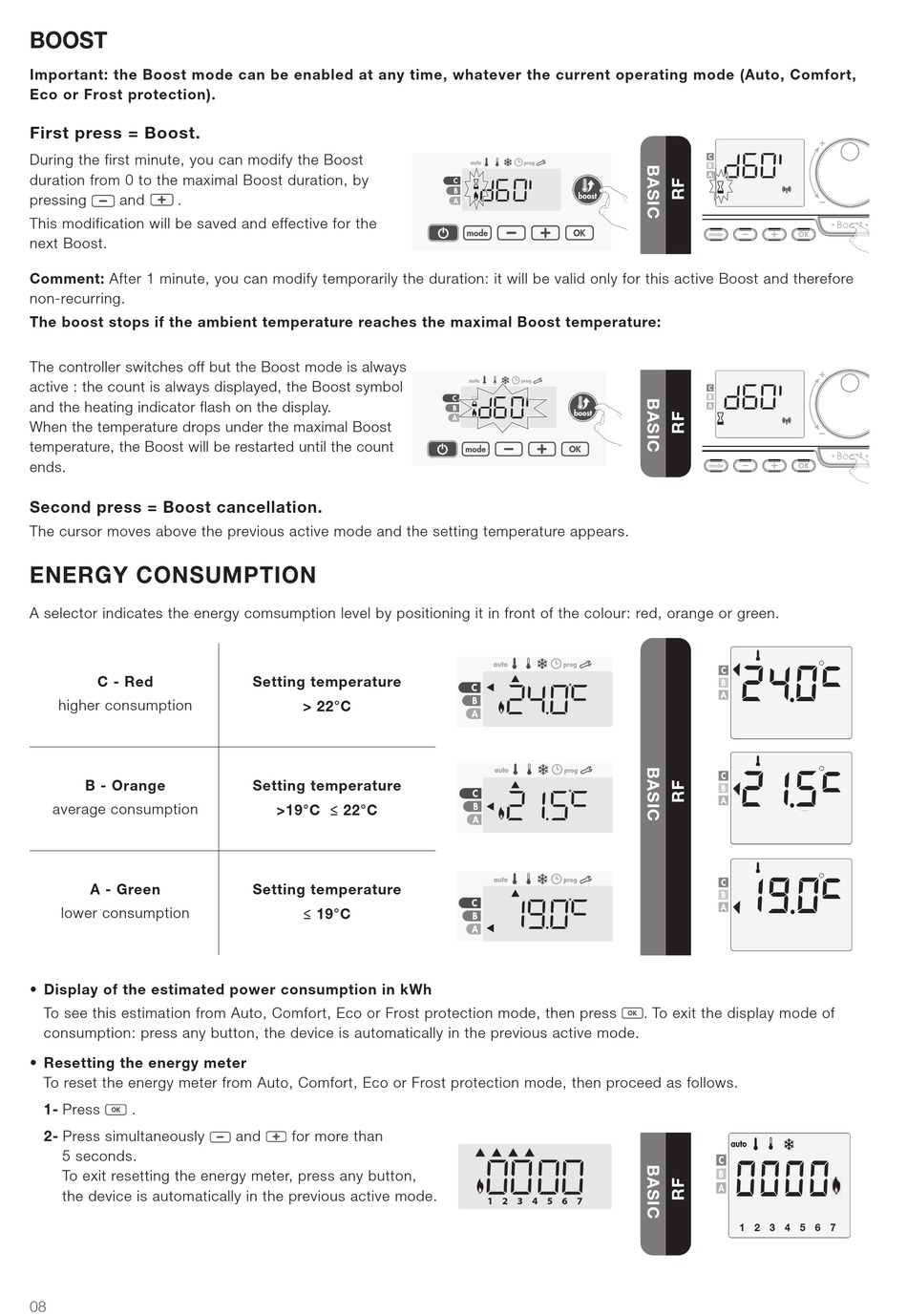

BOOST
Important: the Boost mode can be enabled at any time, whatever the current operating mode (Auto, Comfort,
Eco or Frost protection).
First press = Boost.
During the first minute, you can modify the Boost
duration from 0 to the maximal Boost duration, by
pressing
and
.
This modification will be saved and effective for the
next Boost.
Comment: After 1 minute, you can modify temporarily the duration: it will be valid only for this active Boost and therefore
non-recurring.
The boost stops if the ambient temperature reaches the maximal Boost temperature:
The controller switches off but the Boost mode is always
active : the count is always displayed, the Boost symbol
and the heating indicator flash on the display.
When the temperature drops under the maximal Boost
temperature, the Boost will be restarted until the count
ends.
Second press = Boost cancellation.
The cursor moves above the previous active mode and the setting temperature appears.
ENERGY CONSUMPTION
A selector indicates the energy comsumption level by positioning it in front of the colour: red, orange or green.
C - Red
higher consumption
B - Orange
average consumption
A - Green
lower consumption
• Display of the estimated power consumption in kWh
To see this estimation from Auto, Comfort, Eco or Frost protection mode, then press
consumption: press any button, the device is automatically in the previous active mode.
• Resetting the energy meter
To reset the energy meter from Auto, Comfort, Eco or Frost protection mode, then proceed as follows.
1- Press
.
2- Press simultaneously
5 seconds.
To exit resetting the energy meter, press any button,
the device is automatically in the previous active mode.
08
Setting temperature
> 22°C
Setting temperature
>19°C ≤ 22°C
Setting temperature
≤ 19°C
and
for more than
. To exit the display mode of
1 2 3 4 5 6 7
24 . 0 c
O
21 . 5 c
O
19 . 0 c
O
0000
1 2 3 4 5 6 7
