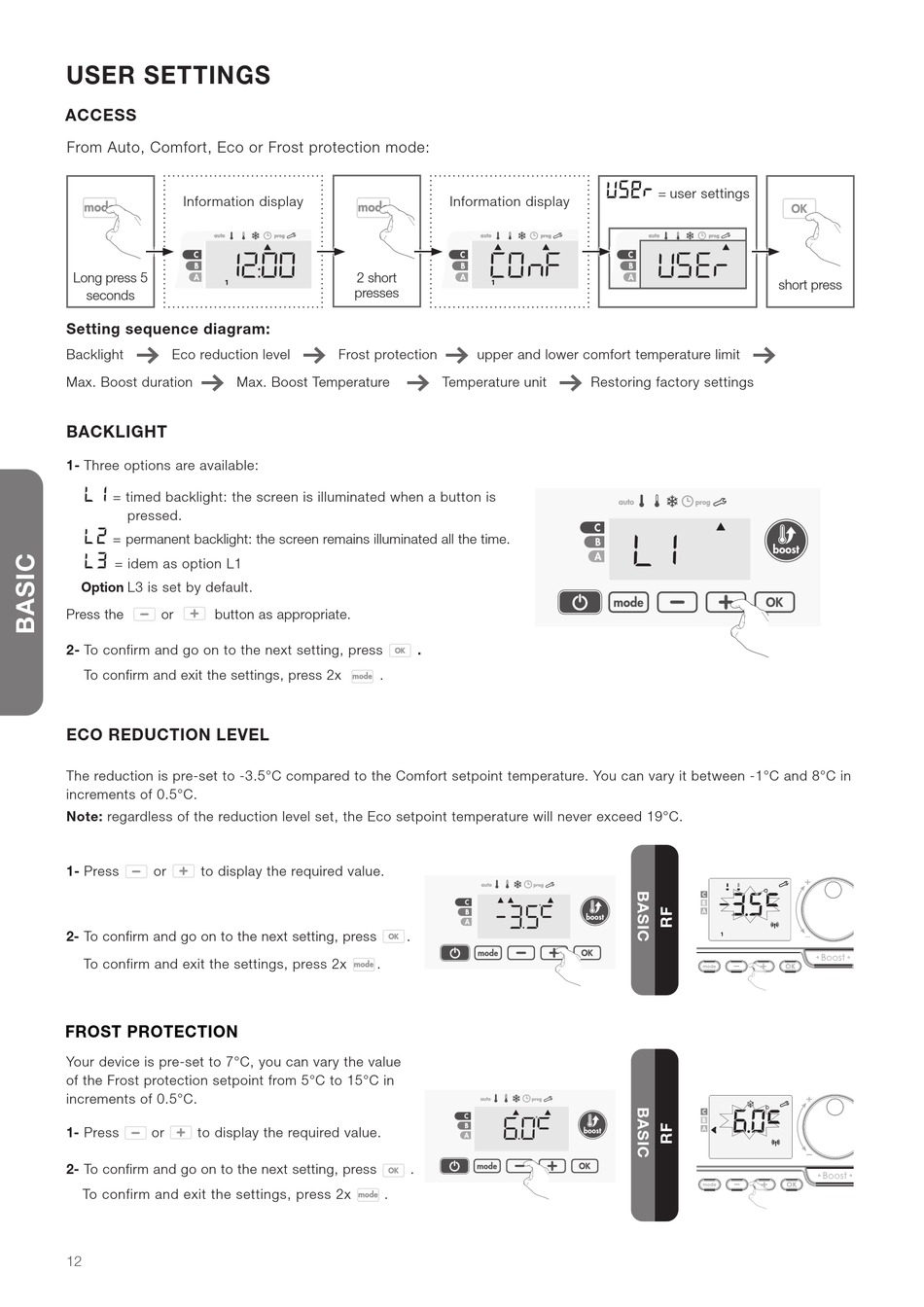

USER SETTINGS

ACCESS
From Auto, Comfort, Eco or Frost protection mode:
Information display
Long press 5
1
seconds
Setting sequence diagram:

Backlight

Eco reduction level
Max. Boost duration Max. Boost Temperature
BACKLIGHT
1- Three options are available:
L1
= timed backlight: the screen is illuminated when a button is
pressed.
L2
= permanent backlight: the screen remains illuminated all the time.
L3
= idem as option L1
Option L3 is set by default.
Press the or button as appropriate.
2- To confirm and go on to the next setting, press
To confirm and exit the settings, press 2x
ECO REDUCTION LEVEL
The reduction is pre-set to -3.5°C compared to the Comfort setpoint temperature. You can vary it between -1°C and 8°C in
increments of 0.5°C.
Note: regardless of the reduction level set, the Eco setpoint temperature will never exceed 19°C.
1- Press
or to display the required value.
2- To confirm and go on to the next setting, press
To confirm and exit the settings, press 2x
FROST PROTECTION
Your device is pre-set to 7°C, you can vary the value
of the Frost protection setpoint from 5°C to 15°C in
increments of 0.5°C.
1- Press or to display the required value.
2- To confirm and go on to the next setting, press
To confirm and exit the settings, press 2x
12
Information display
2 short
1
presses
Frost protection upper and lower comfort temperature limit
Temperature unit
.
.
.
.
.
.
User
= user settings
Restoring factory settings
c
O
3 . 5 3 . 5
O
6 . 0 6 . 0
short press
c
