Technical data

EN

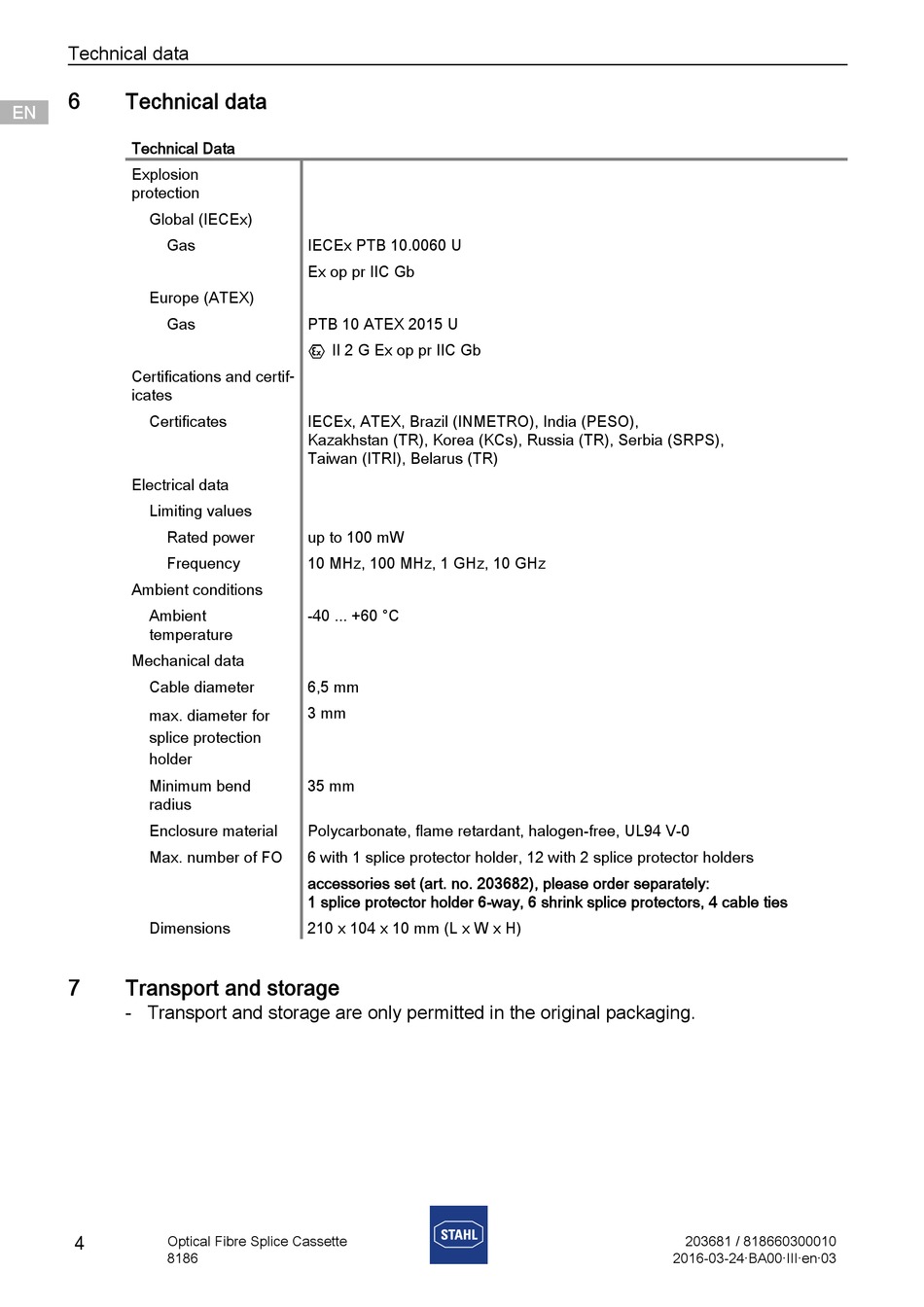

6 Technical data
EN
EN
Technical Data
EN
Explosion
protection
EN
Global (IECEx)
EN
Gas
EN
EN
Europe (ATEX)
EN
Gas
EN
EN
Certifications and certif -
icates
EN
Certificates
EN
EN
EN
Electrical data
Limiting values
EN
Rated power
EN
Frequency
EN
Ambient conditions
EN
Ambient
EN
temperature
EN
Mechanical data
EN
Cable diameter
EN
max. diameter for
splice protection
EN
holder
EN
Minimum bend
radius
Enclosure material
Max. number of FO
Dimensions
7

Transport and storage

- Transport and storage are only permitted in the original packaging.
4
Optical Fibre Splice Cassette
8186
IECEx PTB 10.0060 U
Ex op pr IIC Gb
PTB 10 ATEX 2015 U
E II 2 G Ex op pr IIC Gb
IECEx, ATEX, Brazil (INMETRO), India (PESO),
Kazakhstan (TR), Korea (KCs), Russia (TR), Serbia (SRPS),
Taiwan (ITRI), Belarus (TR)
up to 100 mW
10 MHz, 100 MHz, 1 GHz, 10 GHz
-40 ... +60 °C
6,5 mm
3 mm
35 mm
Polycarbonate, flame retardant, halogen-free, UL94 V-0
6 with 1 splice protector holder, 12 with 2 splice protector holders
accessories set (art. no. 203682), please order separately:
1 splice protector holder 6-way, 6 shrink splice protectors, 4 cable ties
210 x 104 x 10 mm (L x W x H)
203681 / 818660300010
2016-03-24·BA00·III·en·03
