Installation

EN

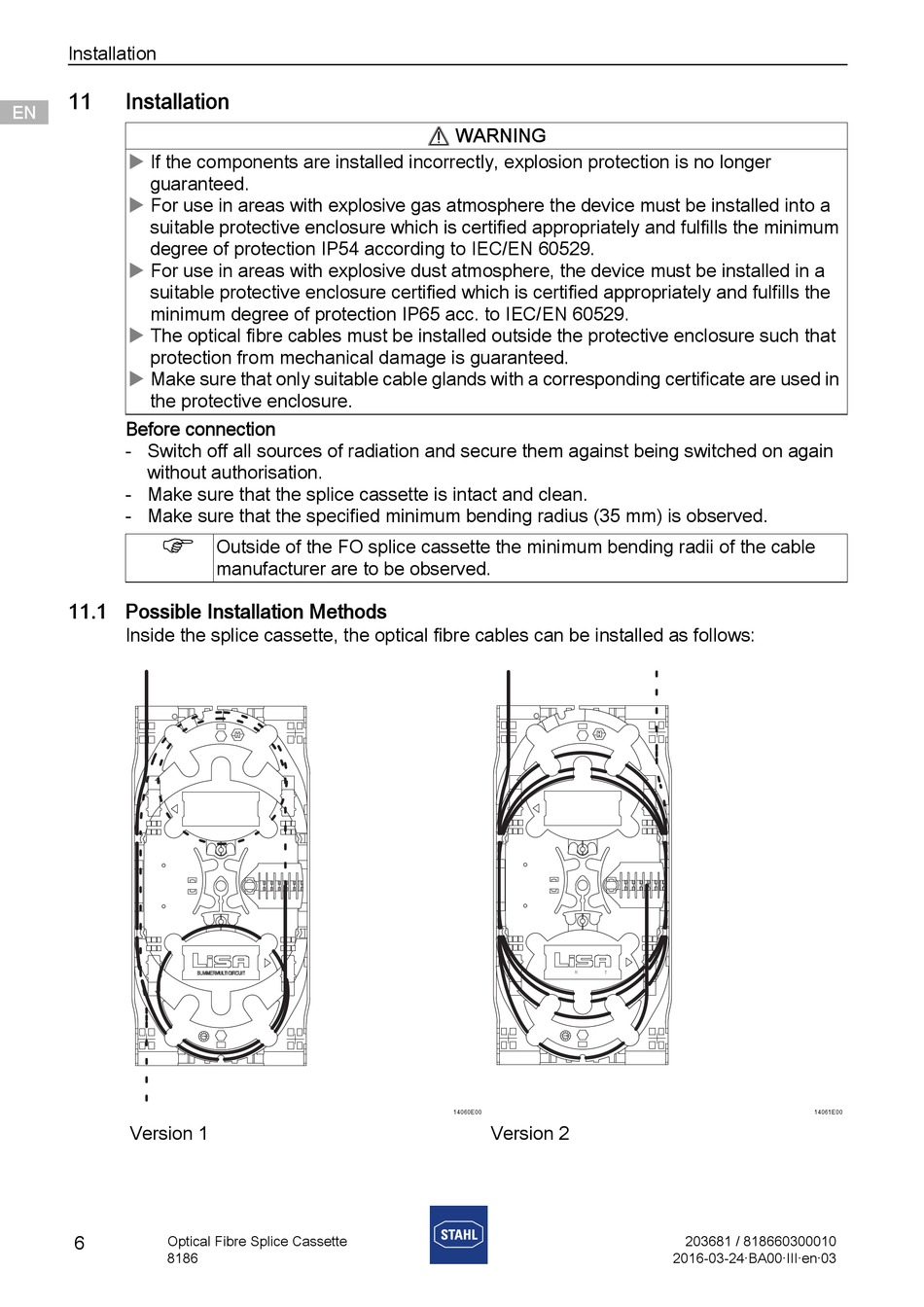

11 Installation
EN
EN
If the components are installed incorrectly, explosion protection is no longer

EN
guaranteed.
EN
For use in areas with explosive gas atmosphere the device must be installed into a

suitable protective enclosure which is certified appropriately and fulfills the minimum
EN
degree of protection IP54 according to IEC/EN 60529.
EN
For use in areas with explosive dust atmosphere, the device must be installed in a

EN
suitable protective enclosure certified which is certified appropriately and fulfills the
EN minimum degree of protection IP65 acc. to IEC/EN 60529.
The optical fibre cables must be installed outside the protective enclosure such that

EN
protection from mechanical damage is guaranteed.
EN
Make sure that only suitable cable glands with a corresponding certificate are used in

EN
the protective enclosure.
EN
Before connection
- Switch off all sources of radiation and secure them against being switched on again
EN
without authorisation.
EN
- Make sure that the splice cassette is intact and clean.
EN
- Make sure that the specified minimum bending radius (35 mm) is observed.

EN
EN
EN

11.1 Possible Installation Methods

EN
Inside the splice cassette, the optical fibre cables can be installed as follows:
EN
EN
EN
EN
EN
Version 1
6
Optical Fibre Splice Cassette
8186
Outside of the FO splice cassette the minimum bending radii of the cable
manufacturer are to be observed.
WARNING
14060E00
Version 2
14061E00
203681 / 818660300010
2016-03-24·BA00·III·en·03
