Technical Data
EN
4.2

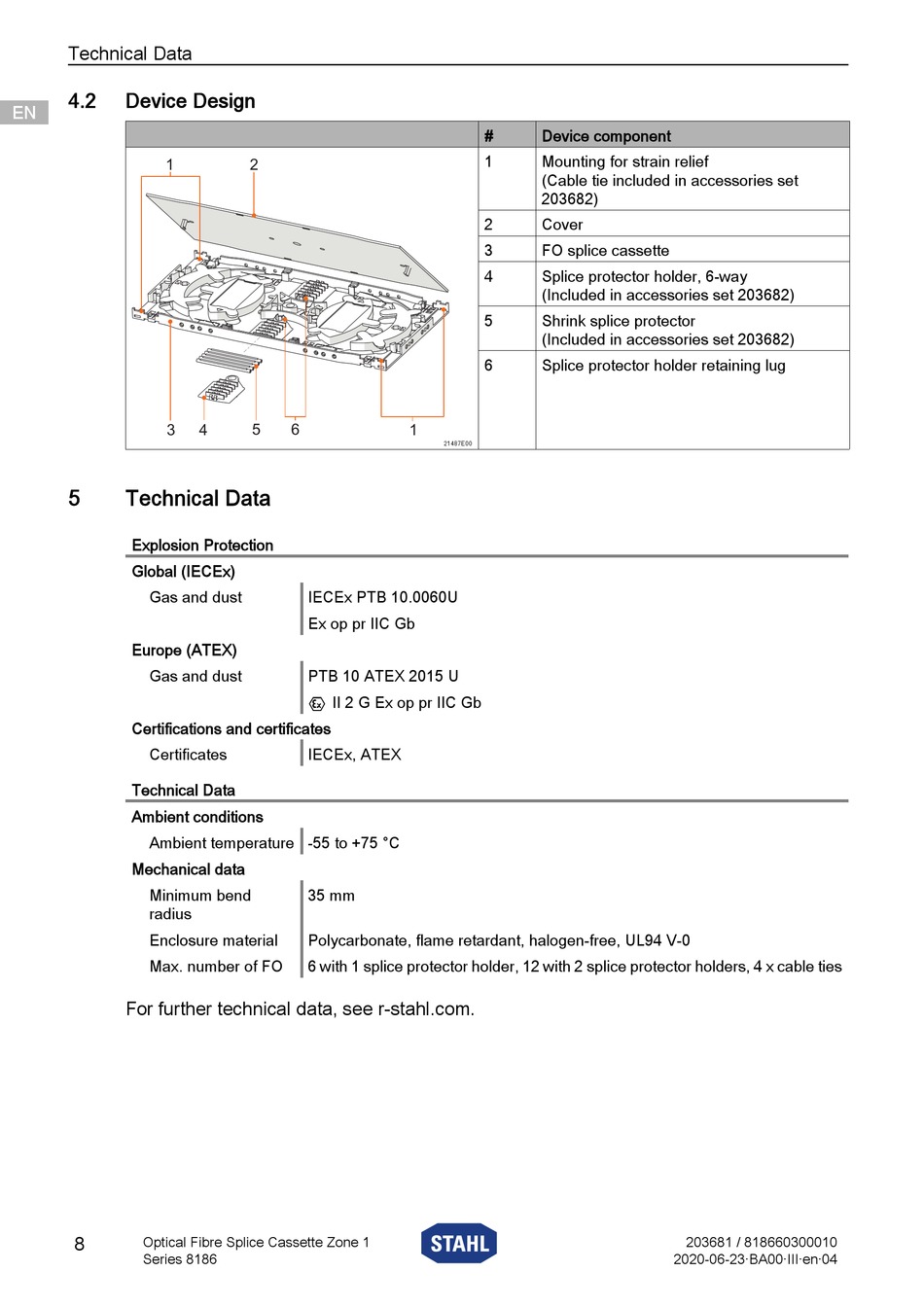

Device Design
EN
EN
1
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
3
EN
EN
5
Technical Data
EN
EN
Explosion Protection
EN
Global (IECEx)
Gas and dust
EN
EN
Europe (ATEX)
EN
Gas and dust
EN
EN
Certifications and certificates
EN
Certificates
EN
Technical Data
Ambient conditions
Ambient temperature -55 to +75 °C
Mechanical data
Minimum bend
radius
Enclosure material
Max. number of FO
For further technical data, see r-stahl.com.
8
Optical Fibre Splice Cassette Zone 1
Series 8186
2
4
5
6
IECEx PTB 10.0060U
Ex op pr IIC Gb
PTB 10 ATEX 2015 U
E II 2 G Ex op pr IIC Gb
IECEx, ATEX
35 mm
Polycarbonate, flame retardant, halogen-free, UL94 V-0
6 with 1 splice protector holder, 12 with 2 splice protector holders, 4 x cable ties
#
Device component
1
Mounting for strain relief
(Cable tie included in accessories set
203682)
2
Cover
3
FO splice cassette
4
Splice protector holder, 6-way
(Included in accessories set 203682)
5
Shrink splice protector
(Included in accessories set 203682)
6
Splice protector holder retaining lug
1
21487E00
203681 / 818660300010
2020-06-23·BA00·III·en·04
