DMX-CONTROLLED OPERATION

You can control the LED DFE-50 Beam-Flower Effect individually via your DMX-controller. Connect the
device to the controller.
Set set DIP switch 10 to ON.
Every DMX-channel has a different occupation with different features.

Addressing

Each device occupies 6 channels. To ensure that the control signals are properly directed to each device,
the device requires addressing. This is to be adjusted for every single device by changing the DIP-switches
as set out in the table below.
The starting address is defined as the first channel from which the device will respond to the controller.
Please make sure that you do not have any overlapping channels in order to control each device correctly
and independently from any other fixture on the DMX data link. If two, three or more devices are addressed
similarly, they will work similarly.

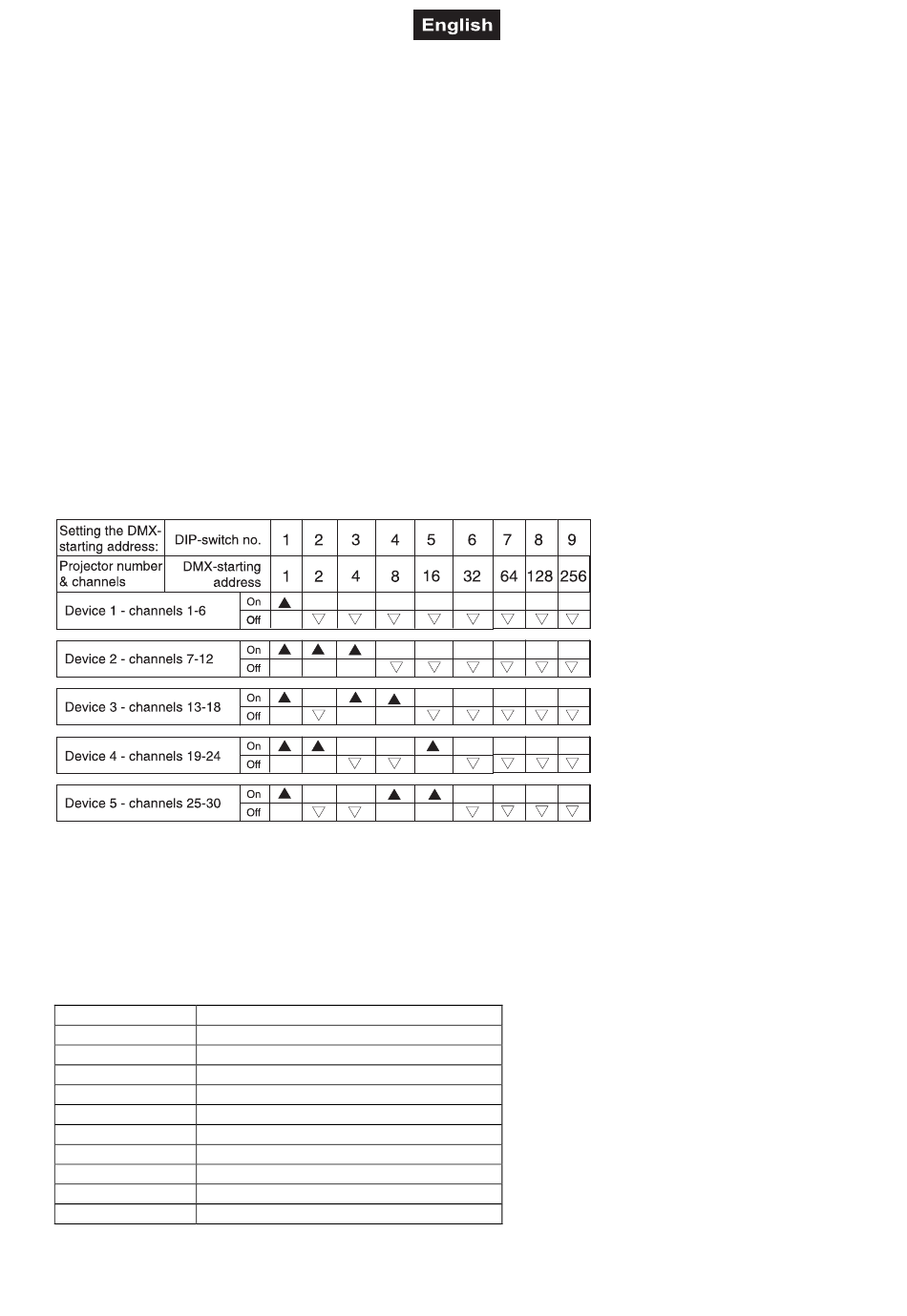

Occupation of the DIP-switches:
Controlling:
After having addressed all LED DFE-50 Beam-Flower Effect devices, you may now start operating these via
your lighting controller.

DMX-protocol

Channel 1 ~ Solid colors, Color change
Value:
000 – 004 Blackout
005 – 028 Red
029 – 056 Green
057 – 084 Blue
085 – 112 Blue / green
113 – 140 Red / blue
141 – 168 Green / red
169 – 197 RGB
198 – 224 Auto: 3-color chase
225 – 255 Auto: 7-color chase
Characteristic:
