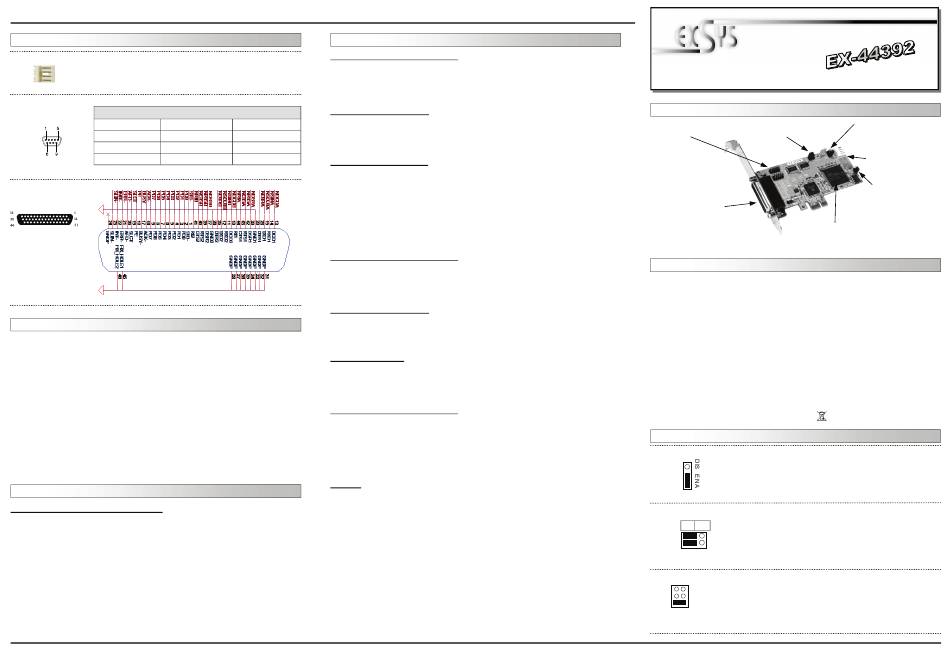

JUMPER SETTING & CONNECTORS:
J7:
1 +5V
2 GND
For power over pc, power supply must be connected to J7!
3 GND
4 +12V
DB9M:
Serial 9 Pin D-SUB connector male :
Pin
Signal
Pin
1
CDC
4
2
RXD
5
3
TXD
6
DB 44F:
HARDWARE INSTALLATION :
If you are ready with the jumper settings, please proceed with the following installation
instructions. Because the designs of computers are different, only general installation
instructions are given. Please refer your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Com-
puter and gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of your
computer. Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the expansion slot, and then gently but firmly, insert the card.
Make sure the card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION :
Windows 9x/ME/2000/XP/Vista & 7:
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-Rom
drive. Now enter the Path "D:\IO\OXFORD\" and then the directory of your operating
system into the box for the Path/Source and click at >next/continue<. Now Windows
searches for the drivers in the specified directory. Follow the hardware assistant and
finish the installation. If Windows recognizes other new devices repeat the above de-
scribed steps. Attention! Restart Windows in any case after installing the drivers.
5
English
English
English
EX
EX-
EX
-
-
44392
44392
44392
DRIVER INSTALLATION :
CHECK THE INSTALLED DRIVER:
Click at >Start< >Run< then enter "compmgmt.msc" and click at >OK<. In the win-
dows that opens select >Device Manager<. Under „Ports (COM and LPT)" you
should find a new „PCI Port" as sample (Com3). If you see this or similar entries the
card is installed correctly.
CHANGE PORT NUMBER:
If you like to change the port number for example COM 3 to COM5, open the >Device
Signal
Pin
Signal
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
DTR
7
RTS
between COM 3 till 256.
GROUND
8
CTS
DSR
9
RI
Windows Server 200x:
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-Rom
drive. Now enter the Path "D:\IO\OXFORD\" and then the directory of your operating
system for Server 2000: "2000", for Server 2003: "XP32" or "XP64", for den Server
2008: „Vista32" or „Vista64" and for the Server 2008 R2: „Win7_32bit" or Win7_64bit"
into the box for the Path/Source and click at >next/continue<. Now Windows searches
for the drivers in the specified directory. Follow the hardware assistant and finish the
installation. If Windows recognizes other new devices repeat the above described
steps. Attention! Restart Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at >Start< >Run< then enter "compmgmt.msc" and click at >OK<. In the win-
dows that opens select >Device Manager<. Under „Ports (COM and LPT)" you
should find a new „PCI Port" as sample (Com3). If you see this or similar entries the
card is installed correctly.
CHANGE PORT NUMBER:
If you like to change the port number for example COM 3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM 3 till 256. The LPT Ports can be changed in the same way!
Windows NT 4.0:
Start Windows NT and insert the driver CD into your CD-ROM drive (for example D:).
Click at >Start< >Run< and enter „D:\IO\OXFORD\NT4\Install_Serial.exe" then click
>OK<. Windows NT will now start the setup program and install the driver. Please
Restart Windows NT after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at >Start< >Programs< >Administrative Tools[Common]< >Windows NT-
Diagnostics< then click at >Resource< >IRQ<. Here you should find the entry „09
oxser 0
PCI". Then click at >I/O-Port< here you should see the entries „D400-D407
oxser
0
for the ports. The I/O addresses can change depends which system and card is in-
stalled. If you see these or similar entry's the card is installed correctly.
LINUX:
There are no drivers available for Linux, but the card is supported by the most versions
of Linux. Because each individual distribution and kernel version of Linux is different,
sadly we cant provide a installation instruction. Please refer to the installation manual
for standard IO ports from your Linux version! In some newer versions the card will
even be installed automatically after starting Linux.
PCI" „D800-D802
oxser
0 PCI" and „DC00-DC1F oxser 0 PCI"
6
English
English
English
Bedienungsanleitung
Bedienungsanleitung
Vers. 1.0 / 14.12.10
AUFBAU :
J2+ 10 Pin interner
JP2 Power auf 9 Pin Stecker
J3 Serieller Anschluss
J8: 44 Pin D-Sub Buchse
mit Octopus Kabel
für die Anschlüsse S1 + S2
BESCHREIBUNG & TECHNISCHE DATEN :
Die EX-44390 ist eine PCI-Express Multi I/O Karte mit 2 seriellen FIFO 16C95x Ports,
für den Anschluss von High-Speed seriellen RS-232 Peripherie Geräten (z.B. Terminal,
Modem, Plotter usw.). Der serielle PCI-Express Bus unterstützt dabei optimal die Leis-
tung des schnellen 16C95x Chipsets mit 128byte FIFO Cache. Die EX-44390 gewähr-
leistet so eine sichere Datenübertragung und exzellente Performance von bis zu
921KBaud/s für jedes angeschlossene Gerät! Sie unterstützt alle PCI-Express Slots
von x1 bis x16. Es ist nicht möglich die I/O Adressen und Interrupts manuell einzustel-
len, da die Einstellungen der Karte vom System (BIOS) und beim Installieren des Be-
triebssystems automatisch vorgenommen werden.
Kompatibilität:
PCI-Express x1 bis x16
Betriebs Systeme:
WIN 9x/ME/NT4/2000/XP/Server 2003/Vista/7(Linux vom OS)
Anschlüsse:
2 x 9 Pin Sub-D Stecker
Lieferumfang:
EX-44392, CD, Anleitung, Octopus Kabel mit 2 x 9 Pin Stecker
LowProfile Bügel
CE
Zertifikate:
/ FCC / RoHS / WEEE
JUMPER EINSTELLUNG & ANSCHLÜSSE:
Jumper zum einstellen des Parallel Ports.
JP1:
DIS
= Der parallel Port ist abgeschaltet (Werkseinstellung).
ENA
= Der Parallel Port ist Eingeschaltet.
Achtung: Bitte nicht veränder. Wird nur für die Karte EX-44390 benötigt
DIS
= Am Pin 9 liegt das Standard Signal RI (Ring Indicator).
JP2:
DIS PWR
PWR
= Am Pin 9 kann jetzt eine Spannung von DC5V oder
S1
S2
Die Einstellung der Spannung nehmen sie mit JP3 vor. Dies sollte aber
bei Standard Anwendungen nicht verstellt werden.
Wenn sie den Jumper JP2 für S1 und S2 auf PWR gesetzt haben,
JP3:
können sie jetzt mit dem JP3 den Spannungswert einstellen. Es gibt 3
AUX5V
verschiedene Spannungsquellen. (Nur in Verbindung mit JP2 auf PWR!)
AUX12V
PCI12V
AUX 5V = 5Volt vom PC-Netzteil
AUX 12V = 12Volt vom PC-Netzteil
PCI 12V = 12Volt vom Mainboard (STANDARD)
JP3 Jumper für die Strom-
ein- oder ausschalten
quelle (Netzteil oder
PCI-Express Bus)
J7: Anschluss für
PC-Netzteil
JP1:
Parallel Port
Ein/Ausschalten
Bitte nicht
verändern
Oxford
OXmPCI952 Chipset
DE97424562 / WHQL
(Werkseinstellung)
DC12V eingestellt werden.
