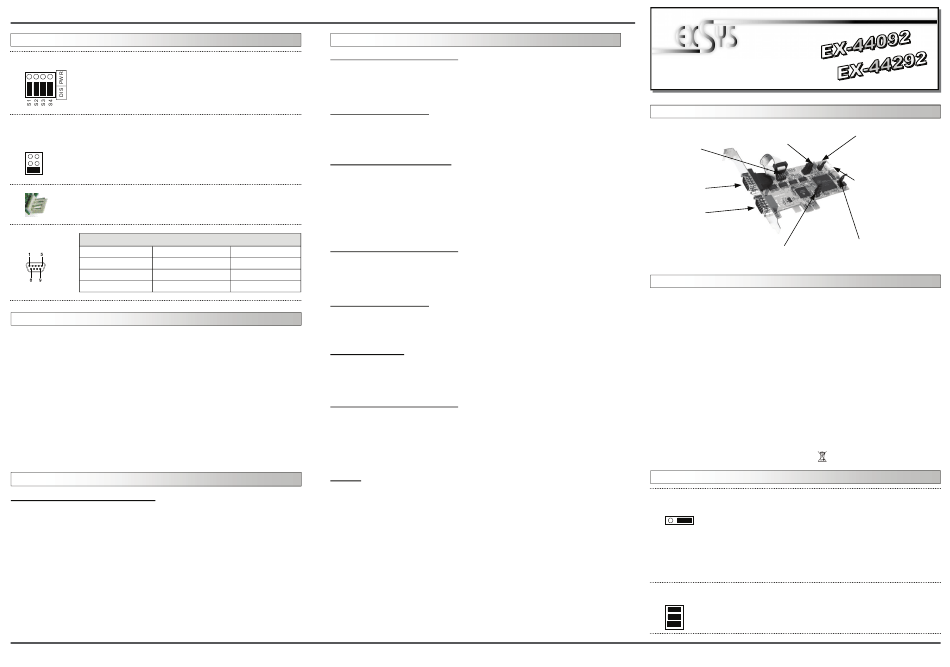

Exsys EX-44092 Bedienungsanleitung

EX EX- EX - - 44092 / EX 44092 / 44092 / EX EX- - - 44292 44292 44292
JUMPER SETTING & CONNECTORS:
DIS = The pin 9 is connected with the RI (Ring Indicator)
JP3:
signal as standard RS-232 definition (Factory setting).
PWR = The pin 9 is connected with a power either from PCI
Express slot or from Aux Power connector (J8) The power source is
controlled by JP4 jumper (see the following section).
JP4: Only if JP3 is set to PWR! The pin 9 from the serial port connector will
be supplied with DC5V or DC12V. There are 3 sources depends on the
jumper position of JP4.
AUX5V = DC5V from J8, pc power supply connection is required
AUX5V
AUX12V = DC12V from J8, pc power supply connection is required
AUX12V
PCI12V PCI12V = DC12V from PCI Express (Factory setting) J8 no cable
J8: 1 +5V
For aux power (JP4) J8 must be connected to pc power supply !
2 GND
If not, the card wont work.
3 GND
4 +12V
DB 9M:
Serial 9 Pin D-SUB connector (S1 and S2):
Pin Signal Pin
1 CDC 4
2 RXD 5 GROUND
3 TXD 6
HARDWARE INSTALLATION :
If you are ready with the jumper settings, please proceed with the following installation
instructions. Because the designs of computers are different, only general installation
instructions are given. Please refer your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Com-
puter and gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of your
computer. Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the expansion slot, and then gently but firmly, insert the card.
Make sure the card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION :
Windows 9x/ME/2000/XP & Vista:
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-Rom
drive. Now enter the Path "D:\IO\OXFORD\" and then the directory of your operating
system "95_98_ME" "2000" "XP32" "XP64" "Vista32" or "Vista64" into the box for
the Path/Source and click at >next/continue<. Now Windows searches for the drivers
in the specified directory. Follow the hardware assistant and finish the installation. If
Windows recognizes other new devices repeat the above described steps. Attention!
Restart Windows in any case after installing the drivers.
5
English English English EX EX EX- - - 44092 / 44092 / EX 44092 / EX
DRIVER INSTALLATION :
CHECK THE INSTALLED DRIVER:
Click at >Start< >Run< then enter "compmgmt.msc" and click at >OK<. In the win-
dows that opens select >Device Manager<. Under „Ports (COM and LPT)" you
should find a new „PCI Port" as sample (Com3). If you see this or similar entries the
card is installed correctly.
CHANGE PORT NUMBER:
If you like to change the port number for example COM 3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM 3 to 256.
Windows Server 2000/2003:
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-Rom
drive. Now enter the Path "D:\IO\OXFORD\" and then the directory of your operating
system for Server 2000: "2000" and for Server 2003: "XP32" or "XP64" into the box
for the Path/Source and click at >next/continue<. Now Windows searches for the
drivers in the specified directory. Follow the hardware assistant and finish the installa-
tion. If Windows recognizes other new devices repeat the above described steps.
Attention! Restart Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER:
Signal Pin Signal
Click at >Start< >Run< then enter "compmgmt.msc" and click at >OK<. In the win-
DTR 7 RTS
dows that opens select >Device Manager<. Under „Ports (COM and LPT)" you
8 CTS
should find a new „PCI Port" as sample (Com3). If you see this or similar entries the
card is installed correctly.
DSR 9 RI
CHANGE PORT NUMBER:
If you like to change the port number for example COM 3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM 3 to 256.
Windows NT 4.0:
Start Windows NT and insert the driver CD into your CD-ROM drive (for example D:).
Click at >Start< >Run< and enter „D:\IO\OXFORD\NT4\Install_Serial.exe" then click
>OK<. Windows NT will now start the setup program and install the driver. Please
Restart Windows NT after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at >Start< >Programs< >Administrative Tools[Common]< >Windows NT-
Diagnostics< then click at >Resource< >IRQ<. Here you should find the entry „09
oxser 0 PCI". Then click at >I/O-Port< here you should see the entries „D400-D407
oxser 0
for the ports. The I/O addresses can change depends which system and card is in-
stalled. If you see these or similar entry's the card is installed correctly.
LINUX:
There are no drivers available for Linux, but the card is supported by the most versions
of Linux. Because each individual distribution and kernel version of Linux is different,
sadly we cant provide a installation instruction. Please refer to the installation manual
for standard IO ports from your Linux version! In some newer versions the card will
even be installed automatically after starting Linux.
EX- - - 44292 44292 44292
PCI" „D800-D802 oxser 0 PCI" and „DC00-DC1F oxser 0 PCI"
6
English English English
Bedienungsanleitung
Bedienungsanleitung
Vers. 3.0 / 10.05.08
AUFBAU :
JP3 Power auf 9 Pin Stecker
ein schaltbar
S1 Interne Serieller
Anschluss
S2 9 Pin Stecker
Seriell Anschluss
S1 9 Pin Stecker
Seriell Anschluss
JP2 UART Mode Einstellung
(Nur für Testzwecke im Werk)
BESCHREIBUNG & TECHNISCHE DATEN :

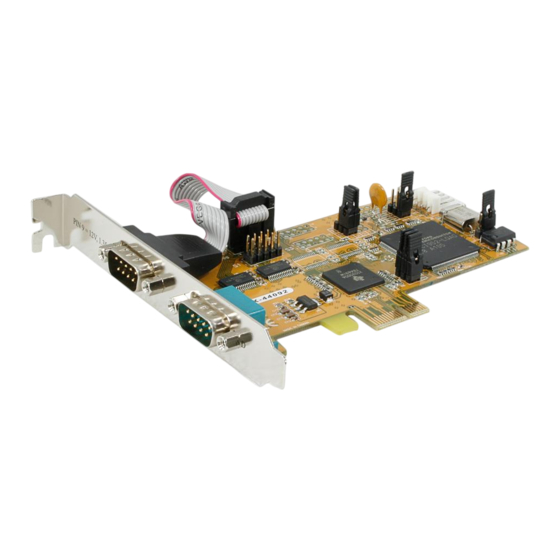

Die EX-44092/44292 ist eine PCI-Express serielle RS-232 Karte mit 2 seriellen FIFO
16C95x Ports, für den Anschluss von High-Speed seriellen RS-232 Peripherie Geräten
(z.B. Terminal, Modem, Plotter usw.). Der serielle PCI-Express Bus unterstützt dabei
optimal die Leistung des schnellen 16C95x Chipset mit 128byte FIFO Cache. Die EX-
44092/44292 gewährleistet so eine sichere Datenübertragung und exzellente Perfor-
mance von bis zu 921KBaud/s für jedes angeschlossene Gerät! Sie unterstützt alle PCI
-Express Slots von x1 bis x16. Es ist nicht möglich die I/O Adressen und Interrupts
manuell einzustellen, da die Einstellungen der Karte vom System (BIOS) und beim
Installieren des Betriebssystems automatisch vorgenommen werden. Mit dem Jumper
JP1 können Sie vom Standard Quarz (1.843MHz) auf den schnellen (14.7456MHz)
Quarz umschalten. Beachten Sie bitte falls Sie mit dem schnellen Quarz arbeiten, dass
die Peripheriegeräte dies auch unterstützen. Im Gerätemanager muss außerdem die
richtige Teilung (Divisor) und Geschwindigkeit manuell eingestellt werden.
Kompatibilität: PCI Express x1 bis x16
Betriebs Systeme: WIN 9x/ME/NT4/2000/XP/Server 2003/Vista/(Linux vom OS)
Anschlüsse: 2 x 9 Pin Sub-D Stecker
Lieferumfang: EX-44092 oder EX-44292, Treiber CD, Anleitung
CE
Zertifikate: / FCC / RoHS / WEEE
JUMPER EINSTELLUNG & ANSCHLÜSSE:
JP1: Mit dem Jumper JP1 können sie zwischen zwei Clock Geschwindigkei-
ten wählen für Kompatibilität oder höhere Baudraten.
LOW = Der Quarz ist auf 1.8432Mhz eingestellt für eine maximale
HI LOW
HI = Der Quarz ist auf 14.7456Mhz eingestellt für die maximale
Bemerkung: Bei der Einstellung HI müssen sie im Gerätemanager von
Windows bei den COM Port Einstellungen den Wert des Quarz automa-
tisch suchen und einstellen!
JP2: Die Jumper auf JP2 bitte nicht verändern. Sie sind nur für Testzwecke
im Werk!
M2 M2 = Jumper gesetzt
M1 M1 = Jumper gesetzt
M0 = Jumper gesetzt
M0
JP4 Jumper für die Strom-
quelle (Netzteil oder
PCI-Express Bus)
J8 Anschluss für den
Power vom Netzteil
JP1 Baudraten Umschalter
(für Geschwindigkeiten
über 115.2KBaud)
DE97424562 / WHQL
Baudrate von 115.2KBaud. (Werkseinstellung). Diese
Einstellung ist für die meisten Anwendungen optimal.
Baudrate von 921.6KBaud.
