JUMPER SETTING & CONNECTORS:
J3: 1 +5V
For aux power (JP2) J7 must be connected to pc power supply !
2 GND
If not, the card wont work.
3 GND
4 +12V
DB 9M:
Serial 9 Pin D-SUB connector:
Pin Signal Pin
1 CDC 4
2 RXD 5 GROUND
3 TXD 6
HPC68F:
68 Pin female connector (S1 - S8):
Pin Signal Pin
1 DCD 1 24
2 RXD 1 25
3 TXD 1 26
4 DTR 1 27
5 DSR 1 28
6 RTS 1 29
7 CTS 1 30
8 DCD 2 31
9 RXD 2 32
10 TXD 2 33
11 DTR 2 34
12 DSR 2 35
13 RTS 2 36
14 CTS 2 37
15 GND 38
16 DCD 3 39
17 CN_PWR 40
18 CN_PWR 41
19 RXD 3 42
20 GND 43
21 TXD 3 44
22 GND 45
23 DTR 3 46
HARDWARE INSTALLATION :
If you are ready with the jumper settings, please proceed with the following installation
instructions. Because the designs of computers are different, only general installation
instructions are given. Please refer your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Com-
puter and gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of your
computer. Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the expansion slot, and then gently but firmly, insert the card.
Make sure the card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
5
English English English EX EX EX- - - 44378 44378 44378
DRIVER INSTALLATION :
Windows 2000/XP/Vista:
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-Rom
drive. Now enter the Path "D:\IO\OXFORD2\" and then the directory of your operating
system "2000" "XP32" "XP64" "Vista32" or "Vista64" into the box for the Path/
Source and click at >next/continue<. Now Windows searches for the drivers in the
specified directory. Follow the hardware assistant and finish the installation. If Windows
Signal Pin Signal
recognizes other new devices repeat the above described steps. Attention! Restart
Windows in any case after installing the drivers.
DTR 7 RTS
8 CTS
CHECK THE INSTALLED DRIVER:
DSR 9 RI
Click at >Start< >Run< then enter "compmgmt.msc" and click at >OK<. In the win-
dows that opens select >Device Manager<. Under „Ports (COM and LPT)" you
should find a new „PCI Port" as sample (Com3). If you see this or similar entries the
card is installed correctly.
Signal Pin Signal
CHANGE PORT NUMBER:
DSR 3 47 RTS 6
If you like to change the port number for example COM 3 to COM5, open the >Device
RTS 3 48 CTS 6
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
CTS 3 49 GND
between COM 3 to 256.
DCD 4 50 DCD 7
Windows Server 2000/2003/2008:
RXD 4 51 RXD 7
TXD 4 52 TXD 7
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-Rom
DTR 4 53 DTR 7
drive. Now enter the Path "D:\IO\OXFORD2\" and then the directory of your operating
DSR 4 54 GND
system for Server 2000: "2000" for Server 2003: "XP32" or "XP64" and for Server
RTS 4 55 DSR 7 2008 "Vista32" or "Vista64" into the box for the Path/Source and click at >next/
continue<. Now Windows searches for the drivers in the specified directory. Follow the
CTS 4 56 GND
hardware assistant and finish the installation. If Windows recognizes other new devices
NC 57 RTS 7
repeat the above described steps. Attention! Restart Windows in any case after install-
DCD 5 58 CTS 7
ing the drivers.
RXD 5 59 GND
CHECK THE INSTALLED DRIVER:
TXD 5 60 DCD 8
Click at >Start< >Run< then enter "compmgmt.msc" and click at >OK<. In the win-
DTR 5 61 RXD 8
dows that opens select >Device Manager<. Under „Ports (COM and LPT)" you
should find a new „PCI Port" as sample (Com3). If you see this or similar entries the
DSR 5 62 GND
card is installed correctly.
RTS 5 63 TXD 8
CTS 5 64 DTR 8
CHANGE PORT NUMBER:
DCD 6 65 DSR 8
If you like to change the port number for example COM 3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
RXD 6 66 RTS 8
between COM 3 to 256.
TXD 6 67 CTS 8
DTR 6 68 NC
LINUX:
DSR 6
The drivers are located in the following folder on our driver CD:
"D:\IO\OXFORD2\LINUX"
Because each individual distribution and kernel version of Linux is different, sadly we
cant provide a installation instruction. Please refer to the installation manual for stan-
dard IO ports from your Linux version! In some newer versions of Linux the card will
even be installed automatically after starting Linux.
English English English
S1- 68 Pin Stecker zu
S8

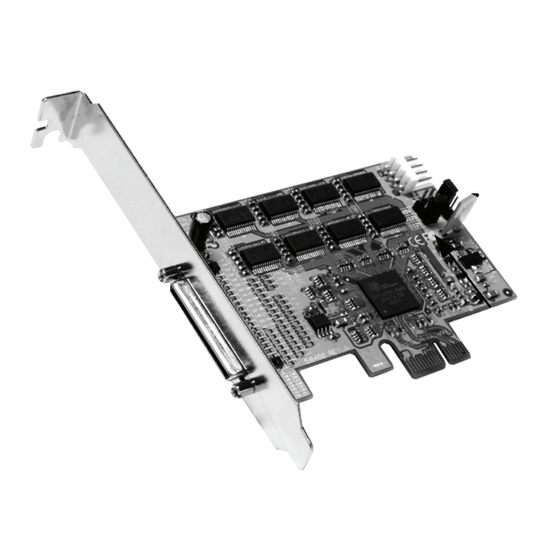

Die EX-44378 ist eine PCI-Express serielle RS-232 Karte mit 8 seriellen FIFO 16C95x
Port, für den Anschluss von High-Speed seriellen RS-232 Peripherie Geräten (z.B.
Terminal, Modem, Plotter usw.). Der serielle PCI-Express Bus unterstützt dabei optimal
die Leistung des schnellen 16C95x Chipset mit 128byte FIFO Cache. Die EX-44378
gewährleistet so eine sichere Datenübertragung und exzellente Performance von bis zu
921KBaud/s für jedes angeschlossene Gerät! Sie unterstützt alle PCI-Express Slots
von x1 bis x16. Es ist nicht möglich die I/O Adressen und Interrupts manuell einzustel-
len, da die Einstellungen der Karte vom System (BIOS) und beim Installieren des
Betriebssystems automatisch vorgenommen werden. Per Jumper können Sie 12V oder
5V auf Pin58 (GND) des seriellen Anschlusses leiten. Achten Sie bitte darauf dass die
Angeschlossenen Geräte dies auch unterstützen!
Kompatibilität:
Betriebs Systeme:
Anschlüsse:
Lieferumfang:
Zertifikate:
JP1:
JP2:
6
Bedienungsanleitung
Bedienungsanleitung
Vers. 1.0 / 12.01.09
AUFBAU :
8 x 9Pin Serieller Anschluss
BESCHREIBUNG & TECHNISCHE DATEN :
PCI Express x1 bis x16
WIN 2000/XP/Vista/Server 2000/2003/2008/Linux
8 x 9 Pin Seriell Stecker
EX-44378, Treiber CD, Anleitung, Octopuskabel
CE
/ FCC / RoHS / WEEE DE97424562 / WHQL
JUMPER EINSTELLUNG & ANSCHLÜSSE:
DIS = Am Pin 58 liegt das Standard Signal an (GND).
(Werkseinstellung)
PWR = PWR (POWER) = Achtung! Jumper nicht
auf diese Einstellung setzen! Karte, PC & Endgeräte
könnten beschädigt werden! Strom auf GND!!!
Die Einstellung der Spannung nehmen sie mit JP2 vor. Dieser sollte
aber bei Standard Anwendungen nicht verstellt werden!
(Nur in Verbindung mit speziellem Kabel & JP1 auf PWR!!!)
Für Strom vom Netzteil muss J3 mit PC Netzteil verbunden werden!
X5V
X12V
X 5V = 5Volt vom PC-Netzteil auf GND (Pin58)
I12V
X 12V = 12Volt vom PC-Netzteil auf GND (Pin58)
I 12V = 12Volt vom Mainboard (STANDARD)
1
J3 Anschluss für Power
vom PC Netzteil
JP1 Power auf 9 Pin
Stecker Ein/Aus
JP2 Jumper für die Strom-
quelle (Netzteil oder
PCI-Express Bus)
