Accessories and spare parts

3.3 Technical data

3.3.1 Performance data

Max. operating
temperature
Min. operating
temperature
Max. operating
pressure
k vs value

3.3.2 Dimensions

G1
G1

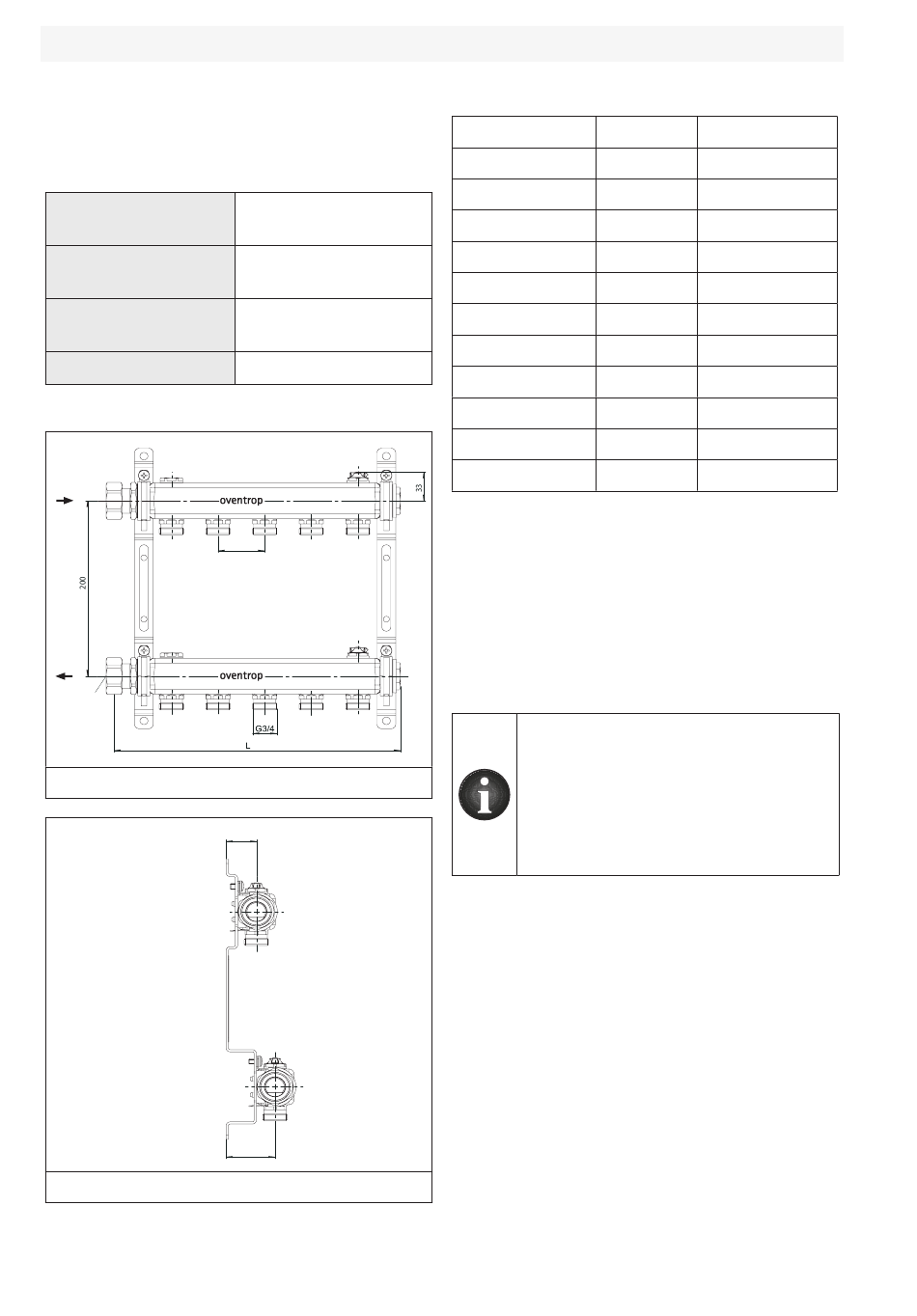

Illustr. 2: Dimensions in mm (front view)
Illustr. 3: Dimensions in mm (side view)
18
+90°C
-10°C
10 bar (1000 kPa)
1.5 m 3 /h
50
50
32
32
52
52
Item no. Circuits
1407252 2
1407253 3
1407254 4
1407255 5
1407256 6
1407257 7
1407258 8
1407259 9
1407260 10
1407261 11
1407262 12
4. Accessories and spare
parts
The product is supplied with extensive
accessories (see 1.2 on page 15). Ball valves
or a heat meter are not included in the delivery.
Spare parts and accessories are obtainable
from specialist stores.
When selecting the cabinet, please
take into consideration that the
depth and length of the stainless
steel distributor/collector "Multidis
SH" will be increased when using
accessories such as ball valves or
heat meters.
"Multidis SH"
Length (L)
157 mm
207 mm
257 mm
307 mm
357 mm
407 mm
457 mm
507 mm
557 mm
607 mm
657 mm
140725280-V03.01.2020
