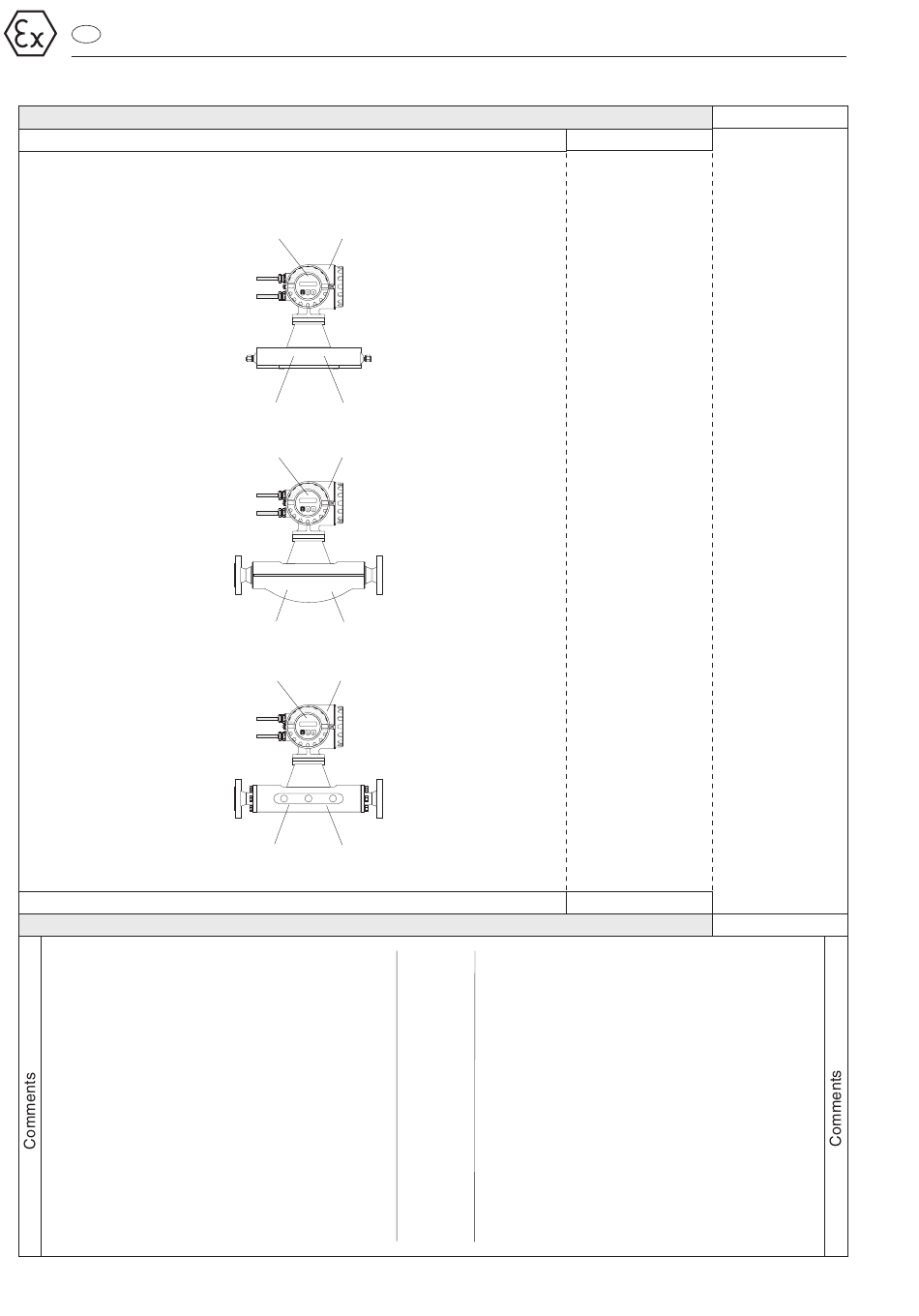

➀
Transmitter Promass 64 in:
EEx de ib IIC or EEx d ib IIC resp.
EEx de [ib/ia] IIC or EEx d [ib/ia] IIC
➁
PRO-LINE Ex d housing in:
EEx d resp. EEx de
(an appropriate cable entry is to be selected,
depending on the type of protection)
➂
Sensor in EEx ib IIC:
PROMASS A DN 2...4
PROMASS F DN 8...50
PROMASS M DN 8...50
➃
For ambient and fluid temperature ranges,
and temperature class, see page 4
2
Hazardous area
II2G (ATEX)
➀ ➁
➂ ➃
➀ ➁
➂ ➃
➀ ➁
➂ ➃
Zone 1 (CENELEC)
Hazardous area
PROMASS 64
Sensor A
PROMASS 64
Sensor F
PROMASS 64
Sensor M
➀
Transmitter Promass 64 in:
EEx de ib IIB or EEx d ib IIB resp.
EEx de [ib/ia] IIB or EEx d [ib/ia] IIB
➁
PRO-LINE Ex d housing in:
EEx d resp. EEx de
(an appropriate cable entry is to be selected,
depending on the type of protection)
➂
or
Sensor in EEx ib IIB:
PROMASS F
PROMASS M
➃
For ambient and fluid temperature ranges,
and temperature class, see page 4
Safe area
II3G (ATEX)
Zone 2 (CENELEC)
Safe area
DN 80...100
DN 80
