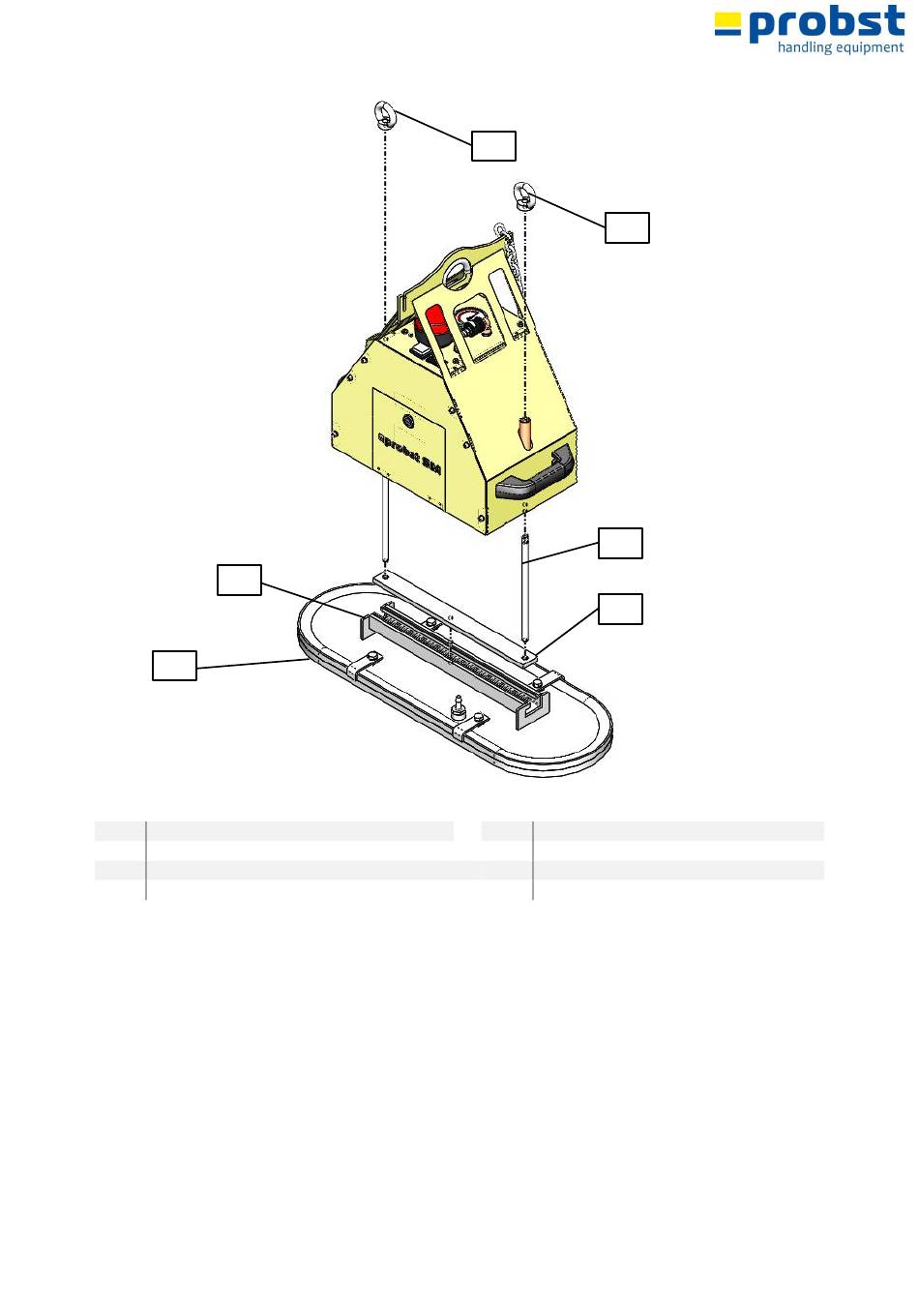

Suction plate mounting material is not included in delivery
Item
Description
10
Suction plate
13
C rail
22
Ring nut
1.
Both threaded spindles must be screwed into the sliding block so the thread is completely screwed in.
2.
Insert both threaded spindles into the two mounting holes from below until the threaded spindles
protrude out of the housing on top.
3.
Screw the ring nut/2-3 threads loosely onto the threaded spindles.
4. Slide the suction plate C rail over the sliding block from the side.
5.
Position the suction plate in the center.
6. Screw the ring nuts tightly and check to see if the suction plate is secure.
7.
Attach the vacuum hose to the suction plate.
8. Check airtightness (see section 9.5.3).
9. Inspect safety features before working with loads.
26/43
22
22
23
24
Item
Description
23
Threaded rod
24
Sliding block
