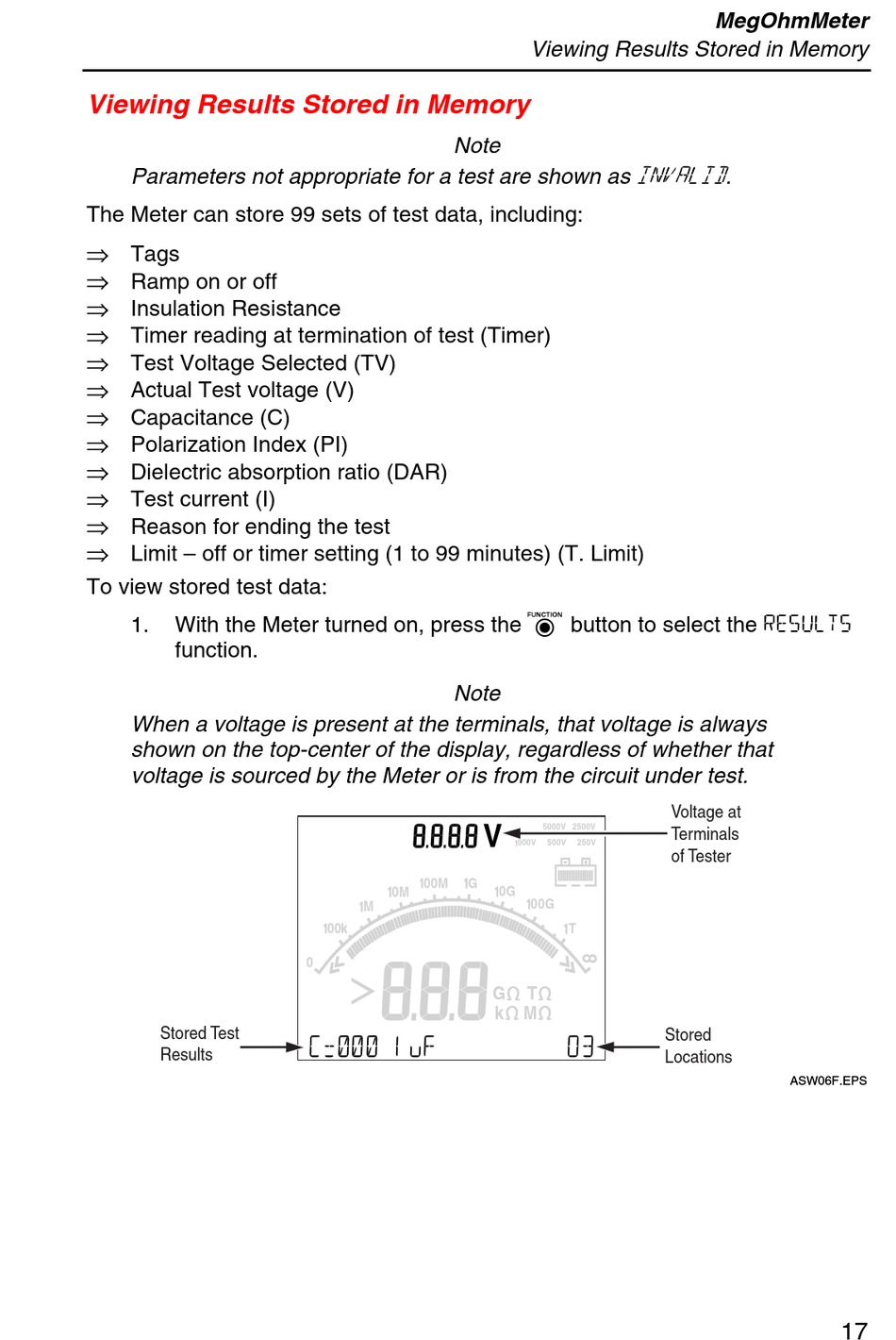

Viewing Results Stored in Memory

Parameters not appropriate for a test are shown as
The Meter can store 99 sets of test data, including:
⇒ Tags
⇒ Ramp on or off
⇒ Insulation Resistance
⇒ Timer reading at termination of test (Timer)
⇒ Test Voltage Selected (TV)
⇒ Actual Test voltage (V)
⇒ Capacitance (C)
⇒ Polarization Index (PI)
⇒ Dielectric absorption ratio (DAR)
⇒ Test current (I)
⇒ Reason for ending the test
⇒ Limit – off or timer setting (1 to 99 minutes) (T. Limit)
To view stored test data:
1. With the Meter turned on, press the
function.
When a voltage is present at the terminals, that voltage is always
shown on the top-center of the display, regardless of whether that
voltage is sourced by the Meter or is from the circuit under test.
Stored Test
Results
Note
Note
00M G
0M
M
00k
0
Viewing Results Stored in Memory
INVALID
H
button to select the RESULTS
V 5000V 2500V
000V 500V 250V
0G
00G
T
G T
k M
MegOhmMeter
.
Voltage at
Terminals
of Tester
Stored
Locations
ASW06F.EPS
