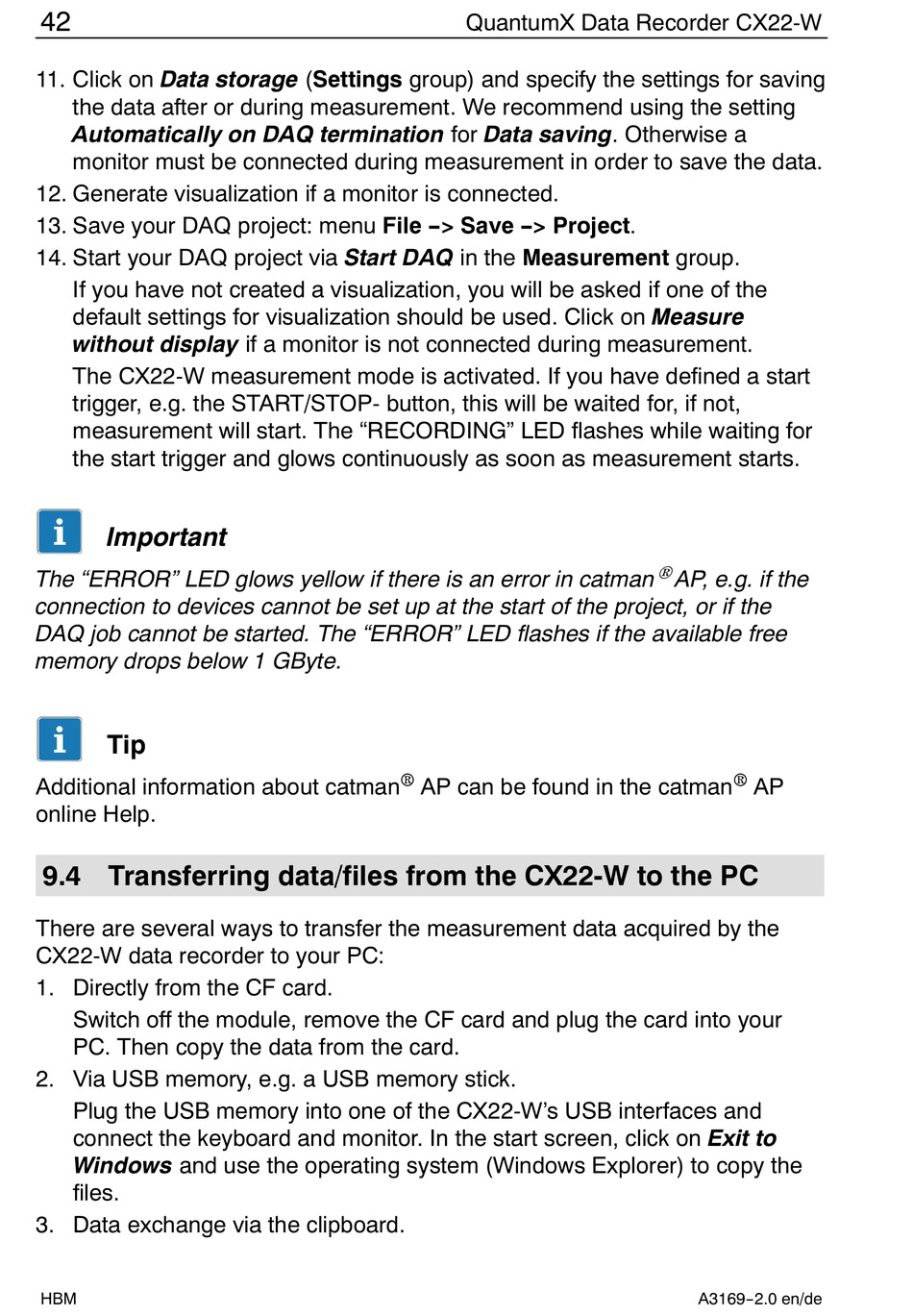

11. Click on Data storage (Settings group) and specify the settings for saving
the data after or during measurement. We recommend using the setting
Automatically on DAQ termination for Data saving. Otherwise a
monitor must be connected during measurement in order to save the data.
12. Generate visualization if a monitor is connected.
13. Save your DAQ project: menu File -> Save -> Project.
14. Start your DAQ project via Start DAQ in the Measurement group.
If you have not created a visualization, you will be asked if one of the
default settings for visualization should be used. Click on Measure
without display if a monitor is not connected during measurement.
The CX22‐W measurement mode is activated. If you have defined a start
trigger, e.g. the START/STOP‐ button, this will be waited for, if not,
measurement will start. The "RECORDING" LED flashes while waiting for
the start trigger and glows continuously as soon as measurement starts.
Important
The "ERROR" LED glows yellow if there is an error in catman
connection to devices cannot be set up at the start of the project, or if the
DAQ job cannot be started. The "ERROR" LED flashes if the available free
memory drops below 1 GByte.
Tip
Additional information about catman
online Help.
9.4 Transferring data/files from the CX22‐W to the PC
There are several ways to transfer the measurement data acquired by the
CX22‐W data recorder to your PC:
1. Directly from the CF card.
Switch off the module, remove the CF card and plug the card into your
PC. Then copy the data from the card.
2. Via USB memory, e.g. a USB memory stick.
Plug the USB memory into one of the CX22‐W's USB interfaces and
connect the keyboard and monitor. In the start screen, click on Exit to
Windows and use the operating system (Windows Explorer) to copy the
files.
3. Data exchange via the clipboard.
HBM
QuantumX Data Recorder CX22‐W
AP can be found in the catman
[
AP, e.g. if the
AP
A3169-2.0 en/de
