2. Place the appliance in the cut-out.

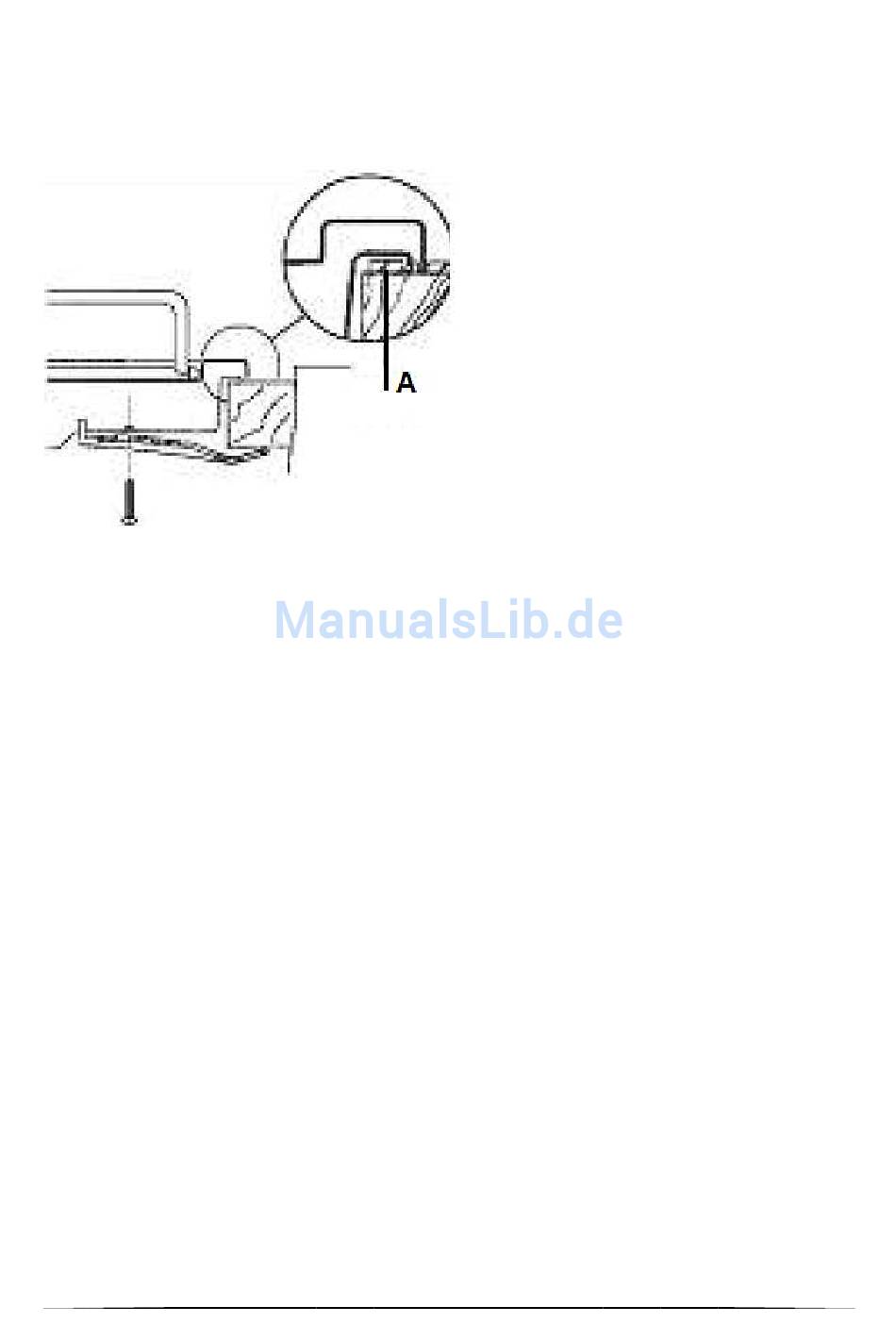

3. Fix the appliance using the clamps and screws. After installation
can be removed.
The edges form a double seal which protects the appliance from penetrating
liquids.

2.7 Before initial use

When the hob has been fully installed, it will be necessary to check the minimum
flame setting. Proceed as follows:
1. Turn the gas tap to MAX position and ignite.
2. Set the gas tap to the MIN flame position then turn the control knob from
MIN to MAX several times. If the flame is unstable or extinguishes, follow the
procedure below.
Procedure
1. Re-ignite the burner and set to MIN.
2. Remove the control knob and use a thin bladed screwdriver to turn the
adjustment screw until the flame is steady and does not extinguish while the
knob is turned from MIN to MAX.
3. The adjustment screw may be located at the centre of the gas tap control shaft
or on the gas tap body, left of the control shaft or below.
A. Seal
32
the excess seal
