Setting Up The Fan - Create AIR TRIPOD CLASSIC Bedienungsanleitung

TRIP OD AS SE MB LY
FIx the tripod connector securing screw (8),
spring (9) and tripod main nut (10).
Fix the base links (13) to the tripod using the
butterfly screws (11) and nuts (12).
E NGL I SH
8

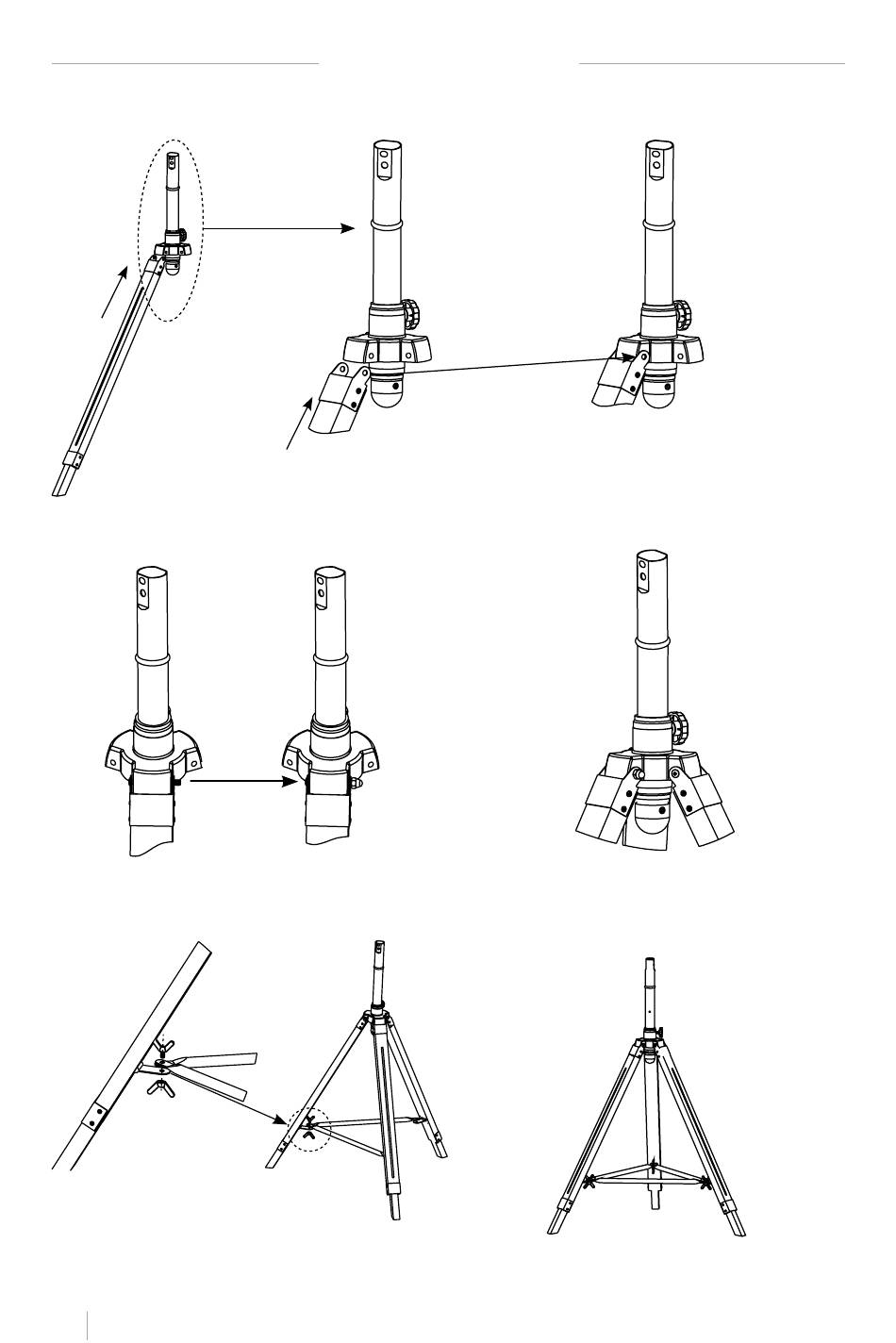

SETTING UP THE FAN

FIx every wooden leg to its metal connection part (5) and
then to the connection on the standing pipe.
2
4
1
Repeat previous step with the three legs of
the tripod.
Repeat the previous step with every base link
and tripod leg.
3
5
