• Trigger input (reversing detector activated)
Also make sure to connect the monitor's priority input. The vehicle must deliver +12 or +24 volts via the white wire when
placed in reverse gear. It connects to the reversing light's positive supply wire and allows the radar detection system to be
activated (audible warning in the cab, visual warning displayed on the monitor, and external alarm if this option has been
connected).
• Alarm output
The system provides an auxiliary output that triggers an external device every time the sensor detects an object. This output
can be used to activate an external backup alarm or a warning light. The output is switched to a high earth impedance state
when it is activated and is protected against overcurrents and short circuits. The maximum operating current is around
1 amp. The alarm supply cannot exceed 24V.

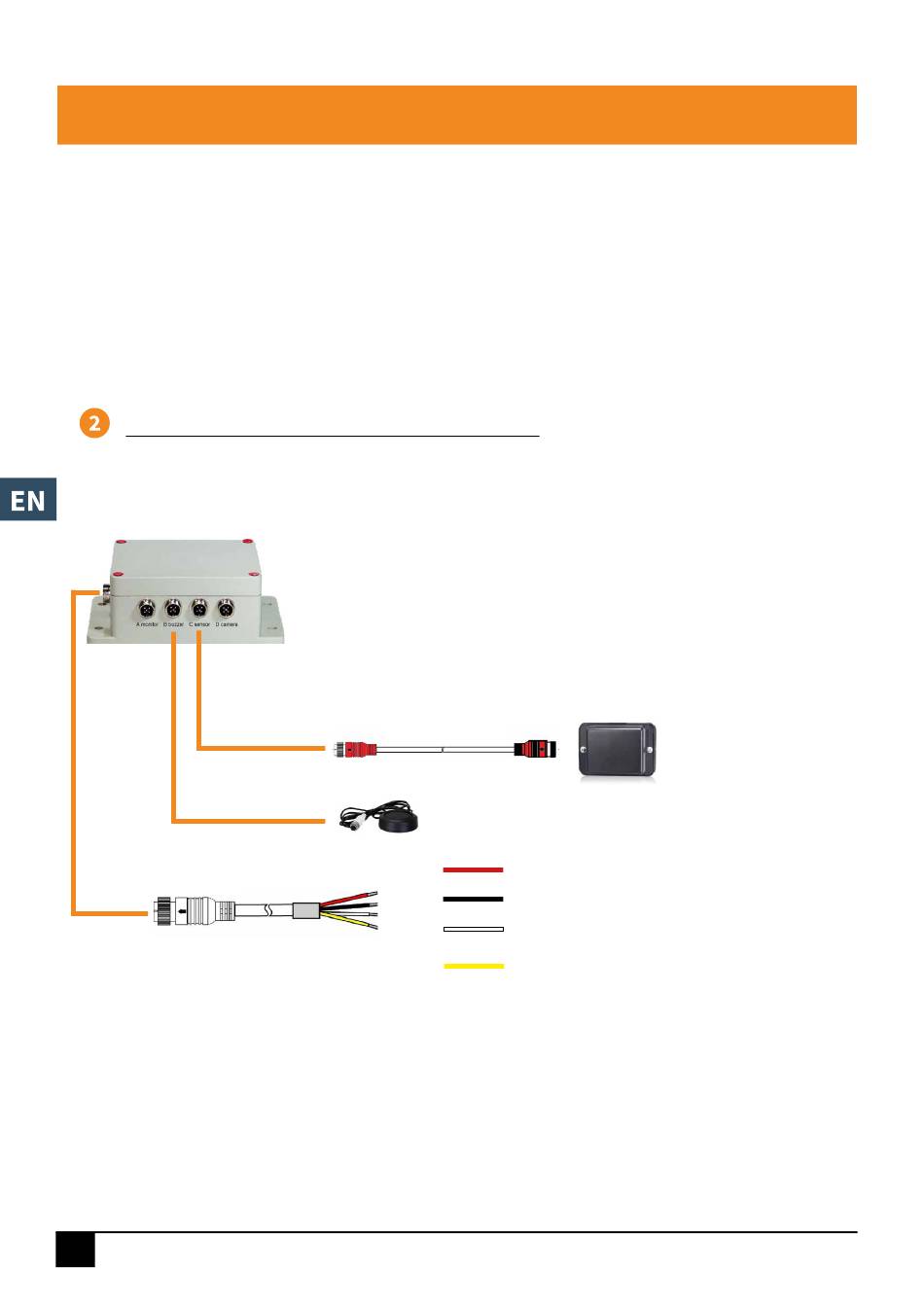

INSTALLING THE RADAR SYSTEM ONLY
Use a blanking plug on the unused entries for IP protection (entry A and entry D). The entire system is
powered by the vehicle battery via a 7.5 amp fuse.
Extension cable (1.5m)
• Trigger input (reversing detector activated)
The vehicle must deliver +12 or +24 volts via the white wire when placed in reverse gear. It connects to the reversing light's
positive supply wire and allows the radar detection system to be activated (audible warning in the cab and external alarm if
this option has been connected).
• Alarm output
The system provides an auxiliary output that triggers an external device every time the sensor detects an object. This output
can be used to activate an external backup alarm or a warning light. The output is switched to a high earth impedance state
when it is activated and is protected against overcurrents and short circuits. The maximum operating current is around
1 amp. The alarm supply cannot exceed 24V.
4
AMS Diffusion - Rue des Galeries - ZA du Chevalement - 59286 Roost Warendin - FRANCE - Tél. +33 (0)3.27.94.44.44 - Fax. +33 (0)3 27 94 44 45
Email : contact@ams-diffusion.fr - www.ams-diffusion.com RCS DOUAI A 451 360 382 - CODE APE 4531Z - SIRET 451 360 382 00035 - TVA FR 55 451 360 382
2. INSTALLATION
Sensor cable (3m)
Buzzer
red
black
white
yellow
10-32V DC power
Earth (GND)
Trigger input (reversing lights)
Alarm output (option to add a beacon or
audible warning)
Radar sensor
