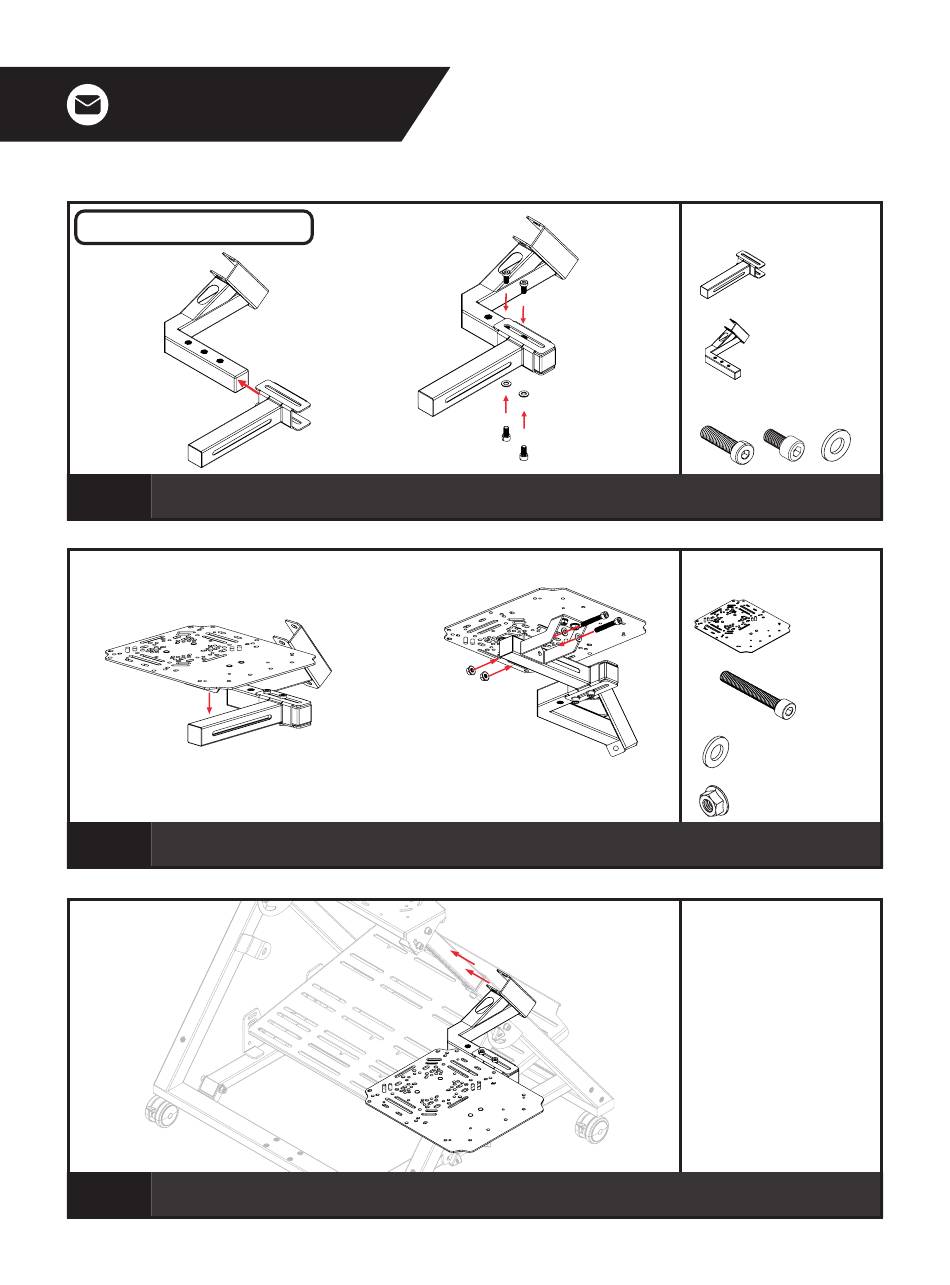

FLIGHT ARM ASSEMBLY

A)
19
A) Align the slots on the Adjustment Arm with the threaded inserts on the Mounting Bracket.
B) Bolt through and secure the top side with 2 x Low Profile Bolts and the underside with 2 x M8 Bolts and Wash ers.
A)
20
A) Align the mounting holes on the Mouse Plate with the slots on the Adjustment Arm.
B) Bolt through and secure with 2 x M8 Bolts, Washers and Flange Nuts.
21
Align the mounting holes on the collar of the Flight Arm assembly with the threaded inserts on the
Vertical Post.
B)
B)
18
PARTS:
• • 1 x Adjustment Arm
• • 1 x Mounting Bracket
• • 2 x M8 20mm Low Profile Bolt
• • 2 x M8 16mm Sockethead Bolt
• • 2 x M8 Washers
PARTS:
• • 1 x Mouse Plate
• • 2 x M8 55mm Sockethead Bolts
• • 2 x M8 Washers
• • 2 x M8 Flange Nuts
PARTS:
• • NIL
