10

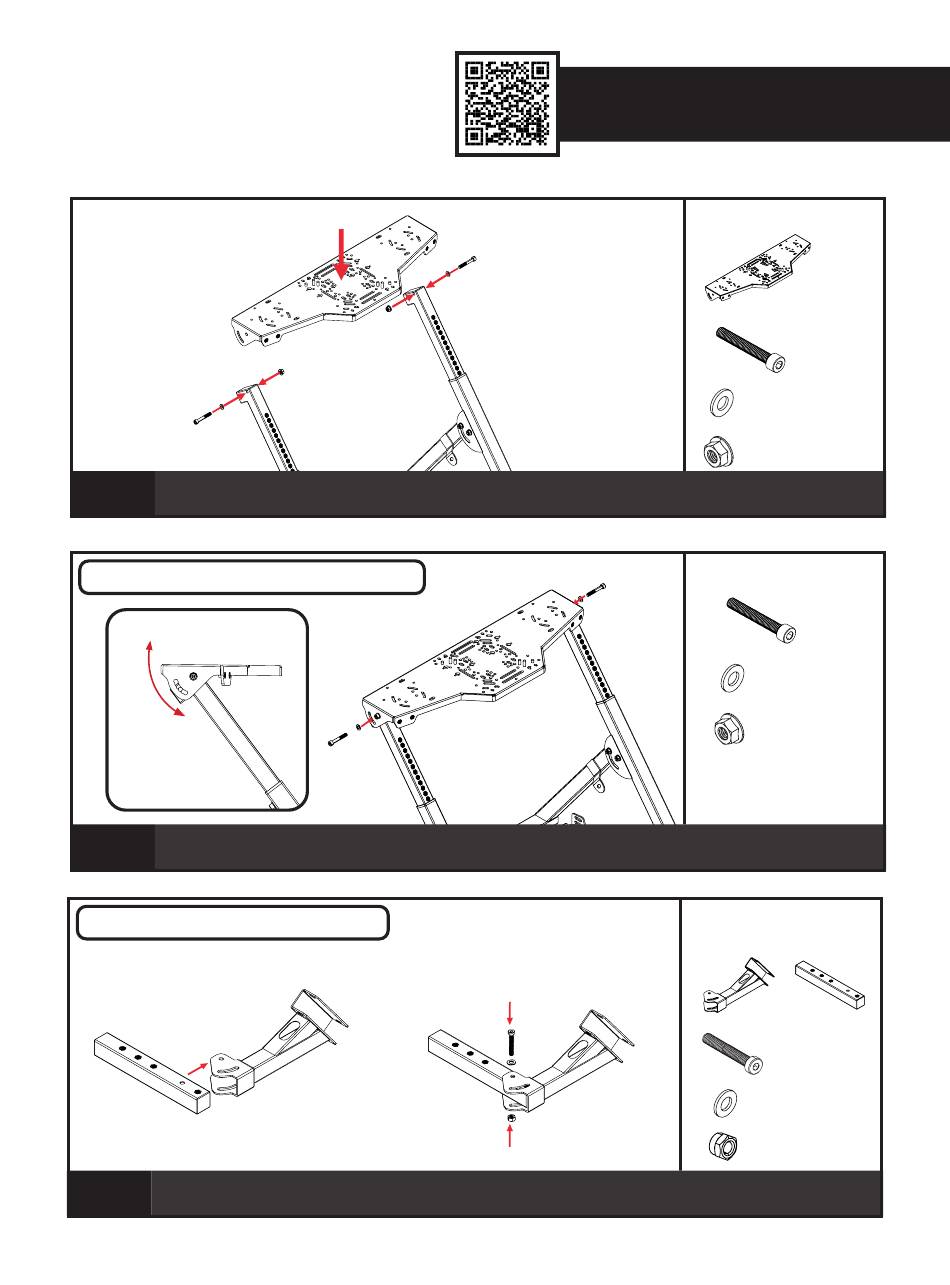

Align the mounting holes on the Flight Deck with the through holes on the Vertical Posts. Bolt through
and secure with 2 x M8 Bolts, Washers and Flange Nuts.

FLIGHT DECK ANGLE ADJUSTMENT

A)
11
A) Adjust the Flight Deck to the desired angle.
B) Bolt through and secure with 2 x M8 Bolts, Washers and Flange Nuts.

SWIVEL FLIGHT ARM ASSEMBLY

A)
12
A) Align the through hole on the Swivel Arm with the through hole on the Swivel Mounting Bracket.
B) Bolt through and secure with 1 x M8 Bolt, Washer and Ny-lock Nut.
Video Instruction: bit.ly/nlrbuild
B)
B)
15
PARTS:
• • 1 x Flight Deck
• • 2 x M8 55mm Sockethead Bolts
• • 2 x M8 Washers
• • 2 x M8 Flange Nuts
PARTS:
• • 2 x M8 55mm Sockethead Bolts
• • 2 x M8 Washers
• • 2 x M8 Flange Nuts
PARTS:
• • Swivel Mounting Bracket
• • Swivel Arm
• • 1 x M8 50mm Low Profile Bolt
• • 1 x M8 Washer
• • 1 x M8 Ny-lock Nut
