Pedal Plate Distance Adjustment; Pedal Plate Angle Adjustment - Next Level Racing FLIGHT STAND PRO Bedienungsanleitung

support@nextlevelracing.com
Note: The threaded inserts
on the Pedal Plate should
be mounted into the
corresponding holes on the
Pedal Brackets.
07

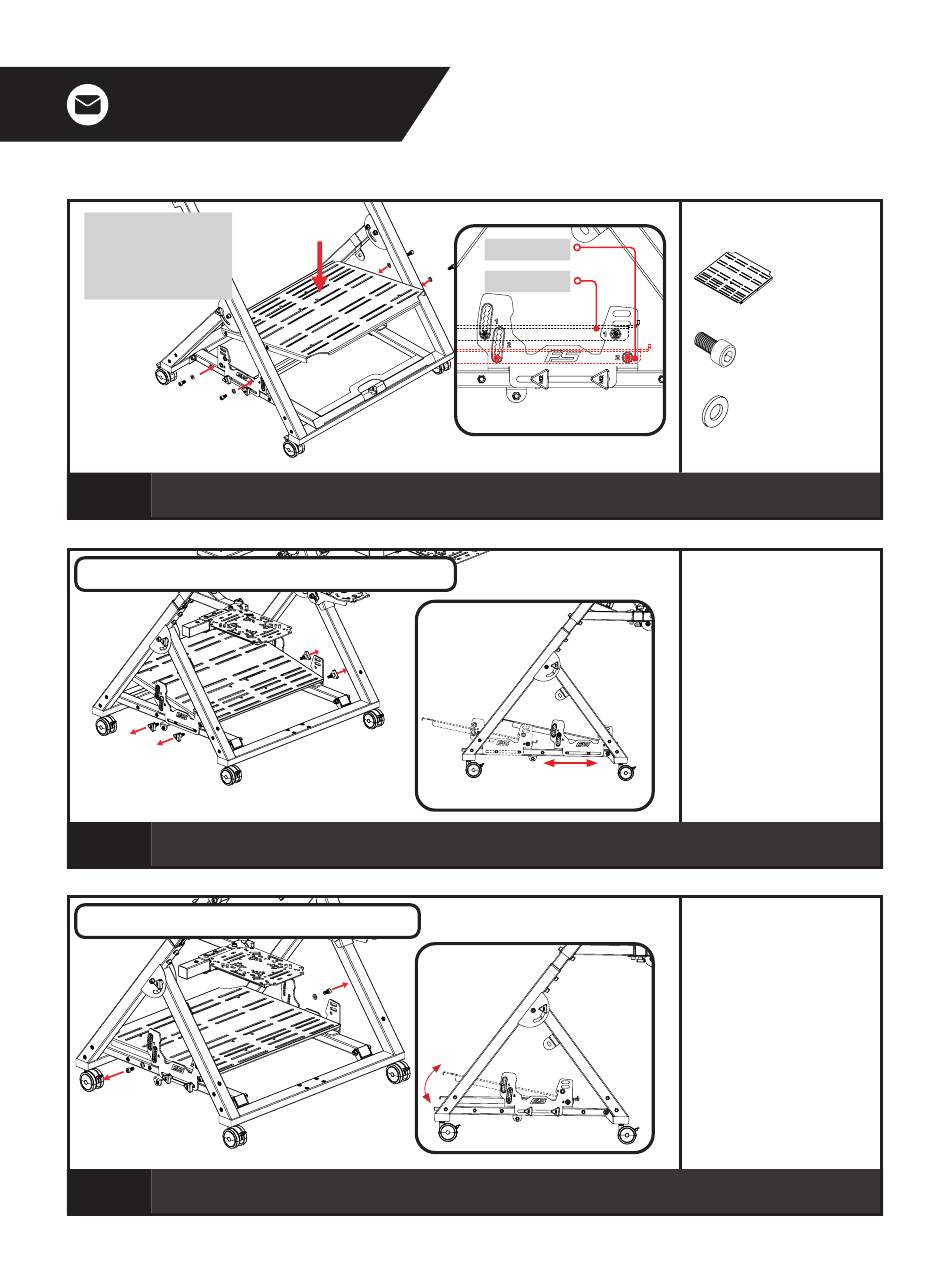

Align the threaded inserts on the Pedal Plate with the mounting holes on the Pedal Brackets. Bolt
through and secure with 4 x M8 Bolts and Washers.

PEDAL PLATE DISTANCE ADJUSTMENT

A)
08
A) Uninstall the M8 Knobs securing the Pedal Brackets to the Pedal Frame.
B) Adjust to the desired position, re-install the M8 Knobs and tighten to secure.

PEDAL PLATE ANGLE ADJUSTMENT

A)
09
A) Uninstall the front Bolts securing the Pedal Plate to the Pedal Brackets.
B) Adjust to the desired angle, re-install the Bolts and tighten to secure.
Hole Set 2
Hole Set 1
PEDAL BRACKET
B)
B)
14
PARTS:
• • 1 x Pedal Plate
• • 4 x M8 16mm Sockethead Bolts
• • 4 x M8 Washers
PARTS:
• • NIL
PARTS:
• • NIL
