inshape FB600S Gebrauchsanweisung Seite 28

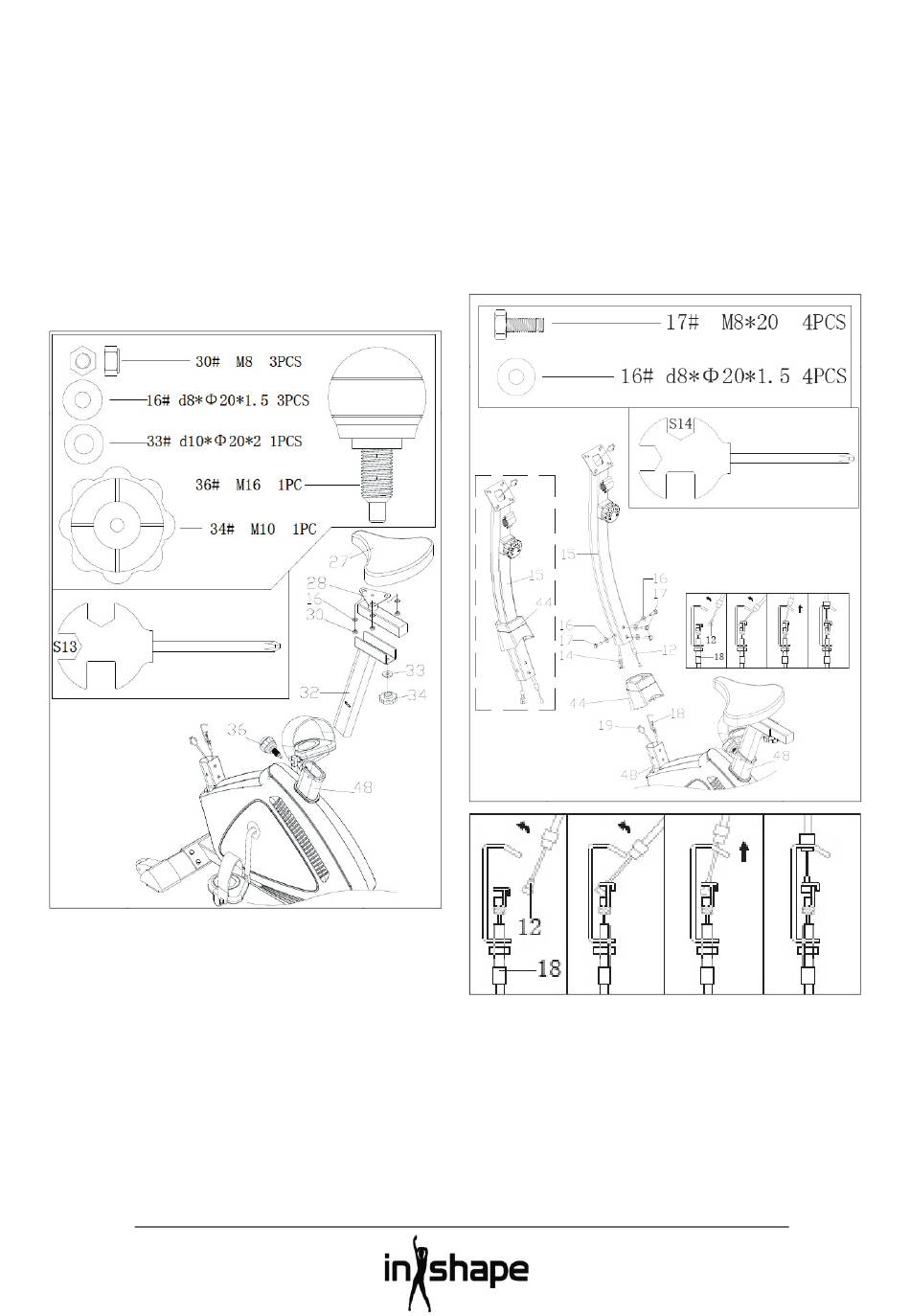

Step 2
Fit the saddle (27) on the horizontal slide rail
(28) using washers (16) and lock nuts (30).
Secure the slide rail (28) to the saddle post
(32) using a washer (33) and the knob (34).
Check that the slide rail is correctly tightened
before use.
Insert the saddle post (32) into the socket on
the frame (48), and screw it securely at the
required height using the knob (36).
28
Step 3
Place the coverplate (44) over the handlebar
post (15).
Connect the sensor cables (14, 19).
Insert the end of the tension cable (12) into
the � tting (18) as illustrated.
Insert the handlebar post (15) down into the
socket on the frame (48) and secure with
washers (16) and bolts (17).
