Heater Installation

The heater can be placed wherever in the sauna, but for safety and
convenience, follow the minimum safety distances as provided in Fig. 2. Follow
the cubic volumes given in the Technical Data (page 18.). Do not install the
heater to the floor or wall niche. Do not install more than one heater in a
sauna room unless you follow the special instructions for twin-heater
installations. In most countries, there is a law that requires heaters to be
screwed to the floor.
The heater gets very hot. To avoid the risk of accidental contact with the
heater, it is recommended that a heater guard be provided.
The cable used for sauna wiring must be HO7RN-F type or its equivalent. A
certified electrician must do the installation of the heater to ensure safety and
reliability. Improper electrical connection can cause electric shock or fire. Refer
to the electrical diagram in page (13).

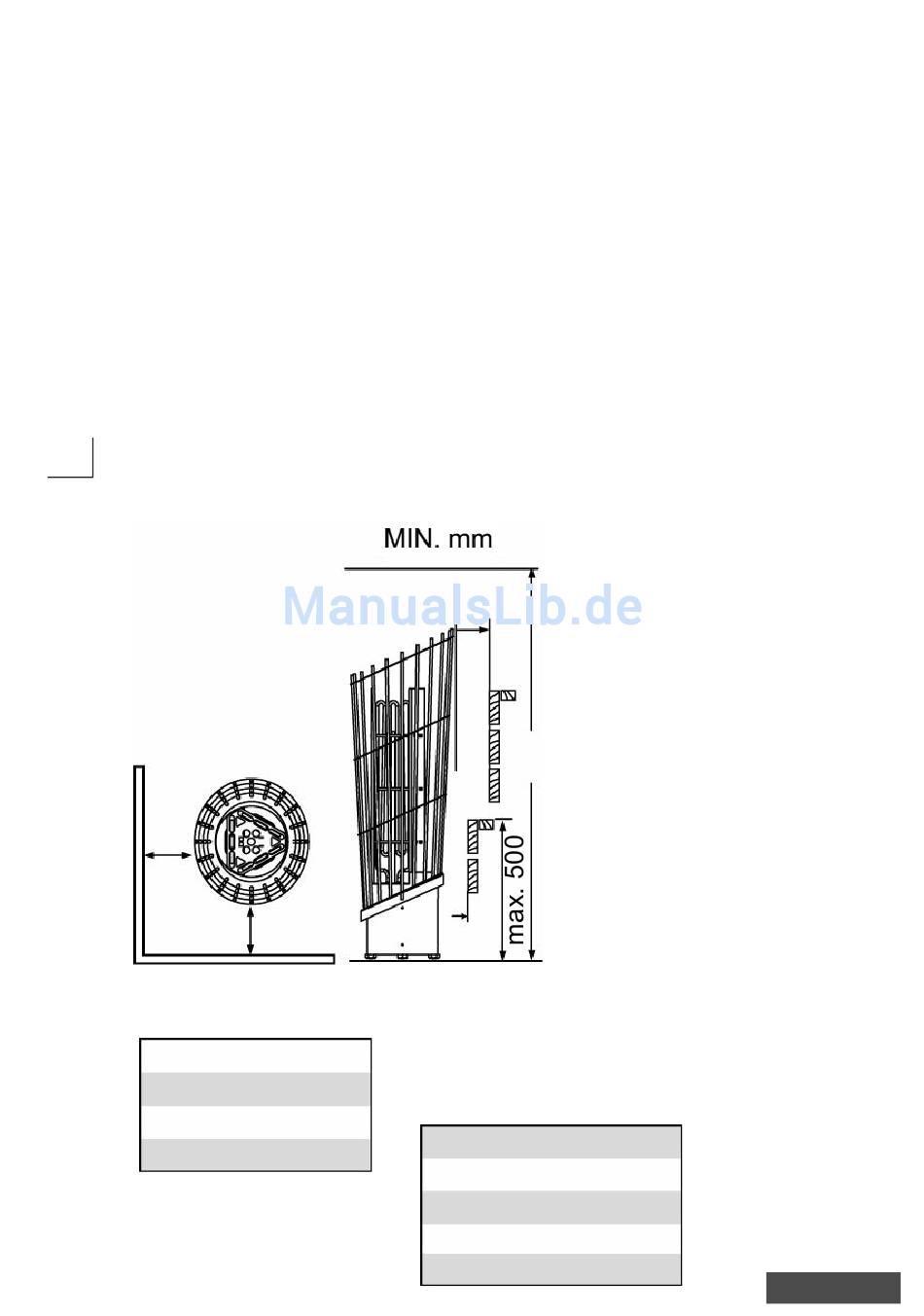

Minimale Sicherheitsabstände (mm)
Kuva. 2
Fig. 2
Minimum Safety Distances (mm)
A
PNX3-45NS
PNX3-60NS
PNX3-75NS
PNX3-90NS
A
A B
100 1900
125 1900
125 1900
150 1900
HINWEIS!
Bei Ofen mit externer Steuerung
Die maximale Leistung entnehmen Sie
bitte der Bedienungsanleitung für die
Steuerung. Wenn die Leistung des
Ofens die Leistungsstärke der
A
separaten Steuerung überschreitet,
wird ein Leistungsschütz benötigt.
Weitere Leistungs-Schütze können bei
den Öfen mit 10,5kW oder höher
angeschlossen werden
NOTE:
If using a separate control
Please refer to the control unit
B
manual for maximum power rating.
Contactor unit is needed if heater's
power rating exceeds separate
control unit's capacity. Additional
contactor unit can be connected to
the heaters 10,5kW and higher.
HINWEIS!
Vor Beginn der Installation des
Saunaofens entfernen Sie den Karton
20
von den Heizelementen, da dieser nur
für den Transport dient.
NOTE:
Remove the carton from the
heating elements before installing.
The carton helps to support the
frame that it won't deform.
A
PNX6-90N 150
PNX6-105N 150
PNX6-120N 150
PNX6-150N 150
PNX6-180N 175
B
1900
1900
2100
2100
2100
