marked clamp of the terminal. The electric supply of the appliance must be
equipped with an emergency switch with a distance between the contacts of at
least 3 mm which disconnects the entire appliance from the mains in a case of
emergency. Read the information on the rating label and the connection
diagram before connecting the appliance to the mains.
❖ When the socket is not accessible for the user or a fixed electrical connection
of the appliance is required, an all-pole disconnecting device must be
incorporated during installation. Disconnecting devices are switches with a
contact opening distance of at least 3 mm. These include LS-switches, fuses and
protectors (EN 30335).
Move a screwdriver (1) slightly downwards (2) to open the box.

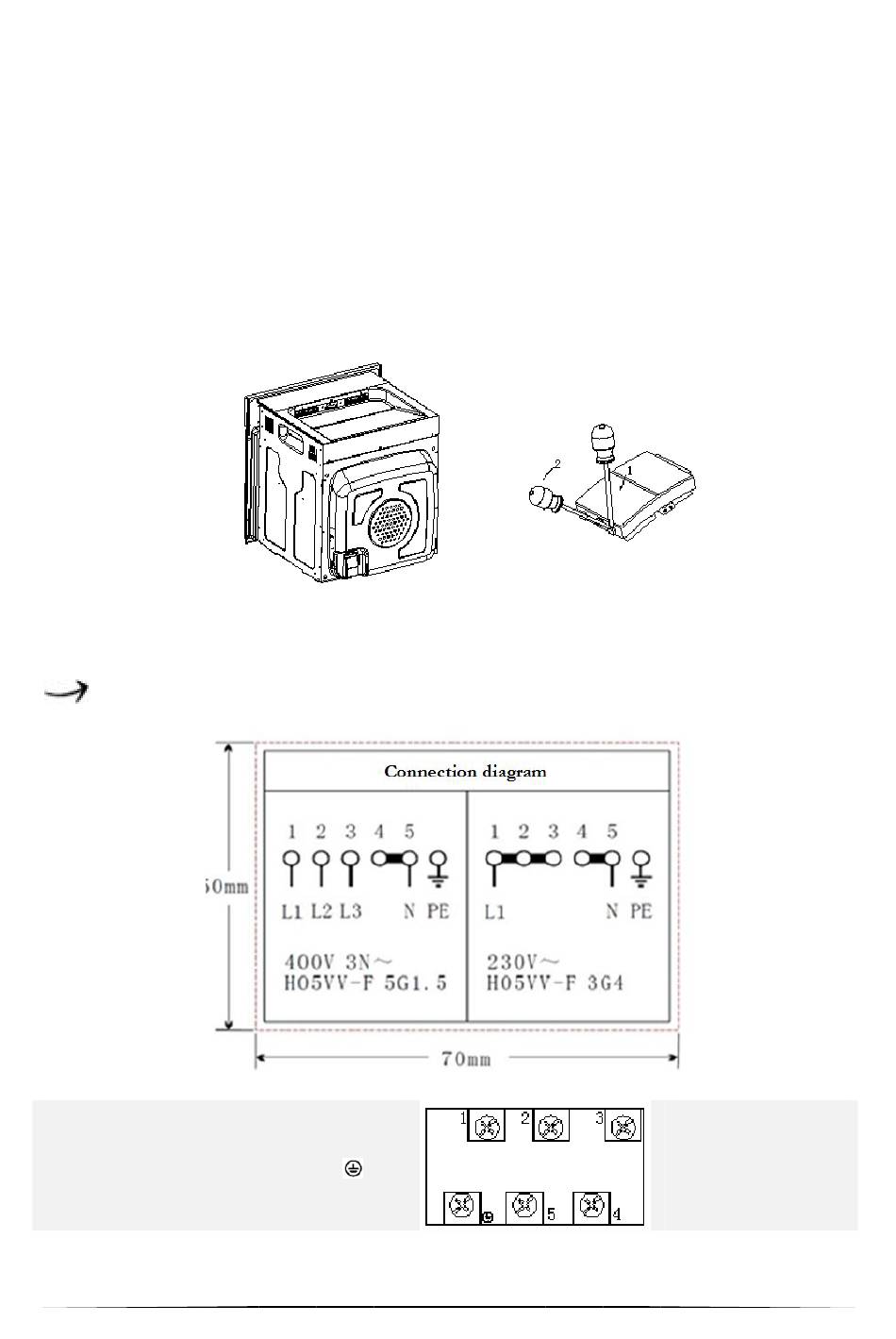

Connection diagram
Voltage heating elements 230V.
Any kind of connection: the safety
wire must be connected to the
terminal.
PE
32
Recommended
type of
connection lead.
