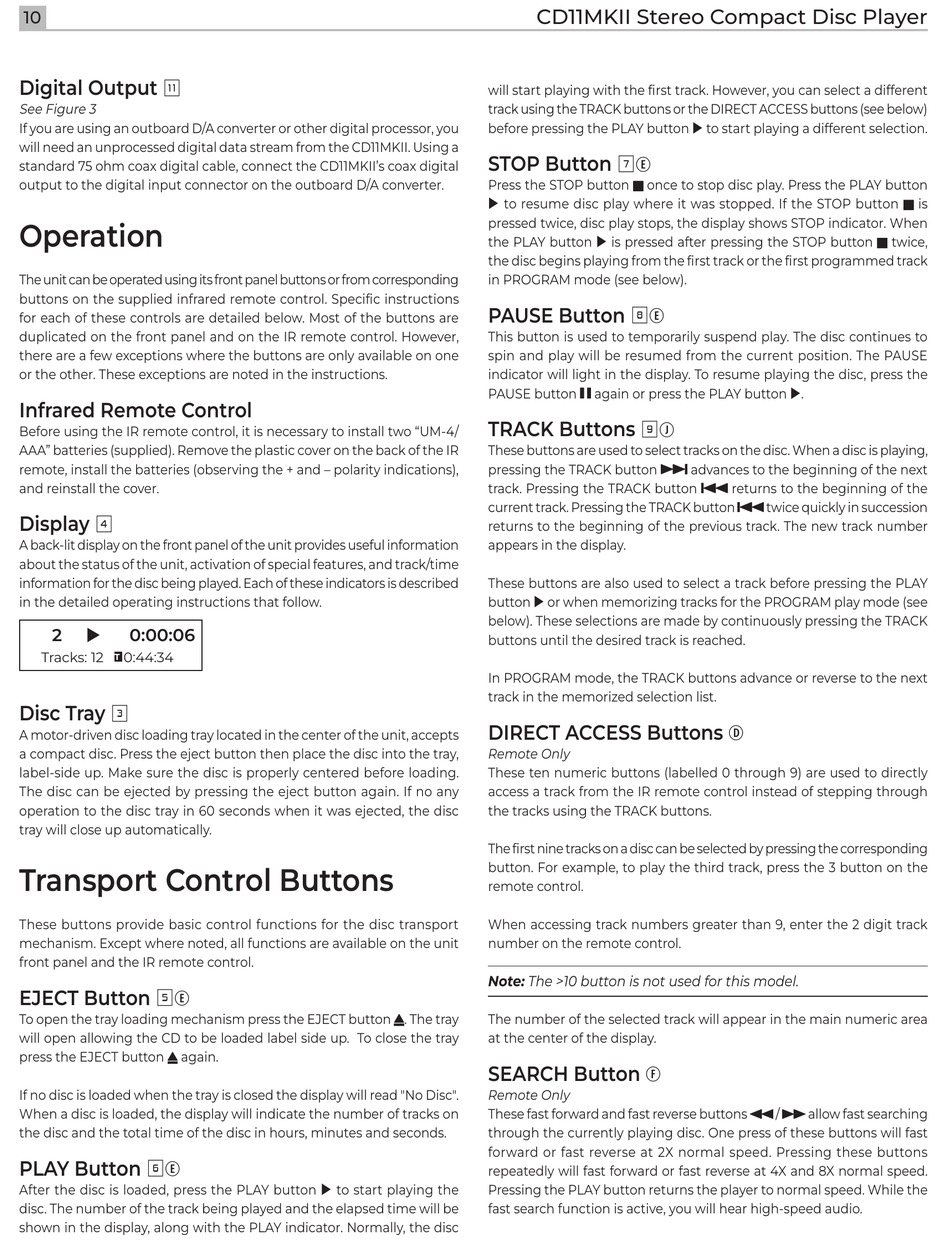

10

Digital Output -

See Figure 3
If you are using an outboard D/A converter or other digital processor, you
will need an unprocessed digital data stream from the CD11MKII. Using a
standard 75 ohm coax digital cable, connect the CD11MKII's coax digital
output to the digital input connector on the outboard D/A converter.

Operation

The unit can be operated using its front panel buttons or from corresponding
buttons on the supplied infrared remote control. Specific instructions
for each of these controls are detailed below. Most of the buttons are
duplicated on the front panel and on the IR remote control. However,
there are a few exceptions where the buttons are only available on one
or the other. These exceptions are noted in the instructions.

Infrared Remote Control

Before using the IR remote control, it is necessary to install two "UM-4/
AAA" batteries (supplied). Remove the plastic cover on the back of the IR
remote, install the batteries (observing the + and – polarity indications),
and reinstall the cover.

Display 4

A back-lit display on the front panel of the unit provides useful information
about the status of the unit, activation of special features, and track/time
information for the disc being played. Each of these indicators is described
in the detailed operating instructions that follow.
2 0:00:06
u
Tracks: 12 0:44:34
T

Disc Tray 3

A motor-driven disc loading tray located in the center of the unit, accepts
a compact disc. Press the eject button then place the disc into the tray,
label-side up. Make sure the disc is properly centered before loading.
The disc can be ejected by pressing the eject button again. If no any
operation to the disc tray in 60 seconds when it was ejected, the disc
tray will close up automatically.

Transport Control Buttons

These buttons provide basic control functions for the disc transport
mechanism. Except where noted, all functions are available on the unit
front panel and the IR remote control.

EJECT Button 5E

To open the tray loading mechanism press the EJECT button . The tray
will open allowing the CD to be loaded label side up. To close the tray
press the EJECT button again.
If no disc is loaded when the tray is closed the display will read "No Disc".
When a disc is loaded, the display will indicate the number of tracks on
the disc and the total time of the disc in hours, minutes and seconds.

PLAY Button 6E

After the disc is loaded, press the PLAY button u to start playing the
disc. The number of the track being played and the elapsed time will be
shown in the display, along with the PLAY indicator. Normally, the disc
CD11MKII Stereo Compact Disc Player
will start playing with the first track. However, you can select a different
track using the TRACK buttons or the DIRECT ACCESS buttons (see below)
before pressing the PLAY button u to start playing a different selection.

STOP Button 7E

Press the STOP button once to stop disc play. Press the PLAY button
u to resume disc play where it was stopped. If the STOP button
pressed twice, disc play stops, the display shows STOP indicator. When
the PLAY button u is pressed after pressing the STOP button
the disc begins playing from the first track or the first programmed track
in PROGRAM mode (see below).

PAUSE Button 8E

This button is used to temporarily suspend play. The disc continues to
spin and play will be resumed from the current position. The PAUSE
indicator will light in the display. To resume playing the disc, press the
PAUSE button again or press the PLAY button u.

TRACK Buttons 9J

These buttons are used to select tracks on the disc. When a disc is playing,
pressing the TRACK button
track. Pressing the TRACK button
current track. Pressing the TRACK button
returns to the beginning of the previous track. The new track number
appears in the display.
These buttons are also used to select a track before pressing the PLAY
button u or when memorizing tracks for the PROGRAM play mode (see
below). These selections are made by continuously pressing the TRACK
buttons until the desired track is reached.
In PROGRAM mode, the TRACK buttons advance or reverse to the next
track in the memorized selection list.

DIRECT ACCESS Buttons D

Remote Only
These ten numeric buttons (labelled 0 through 9) are used to directly
access a track from the IR remote control instead of stepping through
the tracks using the TRACK buttons.
The first nine tracks on a disc can be selected by pressing the corresponding
button. For example, to play the third track, press the 3 button on the
remote control.
When accessing track numbers greater than 9, enter the 2 digit track
number on the remote control.
Note: The >10 button is not used for this model.
The number of the selected track will appear in the main numeric area
at the center of the display.
SEARCH Button F
Remote Only
These fast forward and fast reverse buttons
through the currently playing disc. One press of these buttons will fast
forward or fast reverse at 2X normal speed. Pressing these buttons
repeatedly will fast forward or fast reverse at 4X and 8X normal speed.
Pressing the PLAY button returns the player to normal speed. While the
fast search function is active, you will hear high-speed audio.
advances to the beginning of the next
returns to the beginning of the
twice quickly in succession
/ allow fast searching
is
twice,
