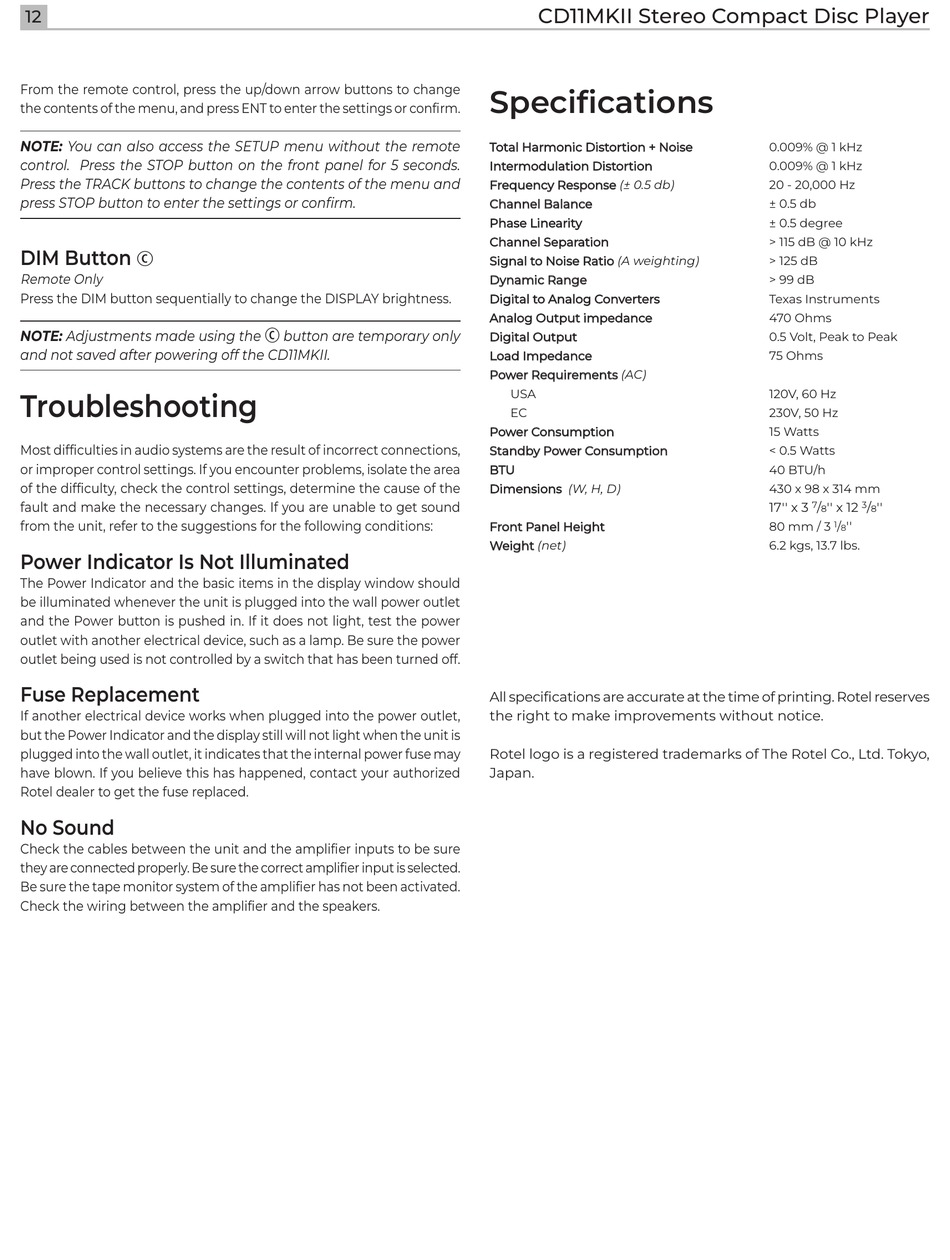

12
From the remote control, press the up/down arrow buttons to change
the contents of the menu, and press ENT to enter the settings or confirm.
NOTE: You can also access the SETUP menu without the remote
control. Press the STOP button on the front panel for 5 seconds.
Press the TRACK buttons to change the contents of the menu and
press STOP button to enter the settings or confirm.

DIM Button C

Remote Only
Press the DIM button sequentially to change the DISPLAY brightness.
NOTE: Adjustments made using the
and not saved after powering off the CD11MKII.

Troubleshooting

Most difficulties in audio systems are the result of incorrect connections,
or improper control settings. If you encounter problems, isolate the area
of the difficulty, check the control settings, determine the cause of the
fault and make the necessary changes. If you are unable to get sound
from the unit, refer to the suggestions for the following conditions:

Power Indicator Is Not Illuminated

The Power Indicator and the basic items in the display window should
be illuminated whenever the unit is plugged into the wall power outlet
and the Power button is pushed in. If it does not light, test the power
outlet with another electrical device, such as a lamp. Be sure the power
outlet being used is not controlled by a switch that has been turned off.

Fuse Replacement

If another electrical device works when plugged into the power outlet,
but the Power Indicator and the display still will not light when the unit is
plugged into the wall outlet, it indicates that the internal power fuse may
have blown. If you believe this has happened, contact your authorized
Rotel dealer to get the fuse replaced.

No Sound

Check the cables between the unit and the amplifier inputs to be sure
they are connected properly. Be sure the correct amplifier input is selected.
Be sure the tape monitor system of the amplifier has not been activated.
Check the wiring between the amplifier and the speakers.
button are temporary only
C
CD11MKII Stereo Compact Disc Player

Specifications

Total Harmonic Distortion + Noise Total Harmonic Distortion + Noise
Intermodulation Distortion Intermodulation Distortion
Frequency Response (± 0.5 db) Frequency Response
Channel Balance Channel Balance
Phase Linearity Phase Linearity
Channel Separation Channel Separation
Signal to Noise Ratio Signal to Noise Ratio (A weighting)
Dynamic Range Dynamic Range
Digital to Analog Converters Digital to Analog Converters
Analog Output impedance Analog Output impedance
Digital Output Digital Output
Load Impedance Load Impedance
Power Requirements Power Requirements (AC)
USA
EC
Power Consumption Power Consumption
Standby Power Consumption Standby Power Consumption
BTU BTU
Dimensions (W, H, D) Dimensions
Front Panel Height Front Panel Height
Weight Weight (net)
All specifications are accurate at the time of printing. Rotel reserves
the right to make improvements without notice.
Rotel logo is a registered trademarks of The Rotel Co., Ltd. Tokyo,
Japan.
0.009% @ 1 kHz
0.009% @ 1 kHz
20 - 20,000 Hz
± 0.5 db
± 0.5 degree
> 115 dB @ 10 kHz
> 125 dB
> 99 dB
Texas Instruments
470 Ohms
0.5 Volt, Peak to Peak
75 Ohms
120V, 60 Hz
230V, 50 Hz
15 Watts
< 0.5 Watts
40 BTU/h
430 x 98 x 314 mm
17'' x 3 7 / '' x 12 3 / ''
8 8
''
80 mm / 3 1 /
8
6.2 kgs, 13.7 lbs.
