Rotel CD11MKI Bedienungsanleitung Seite 4

4

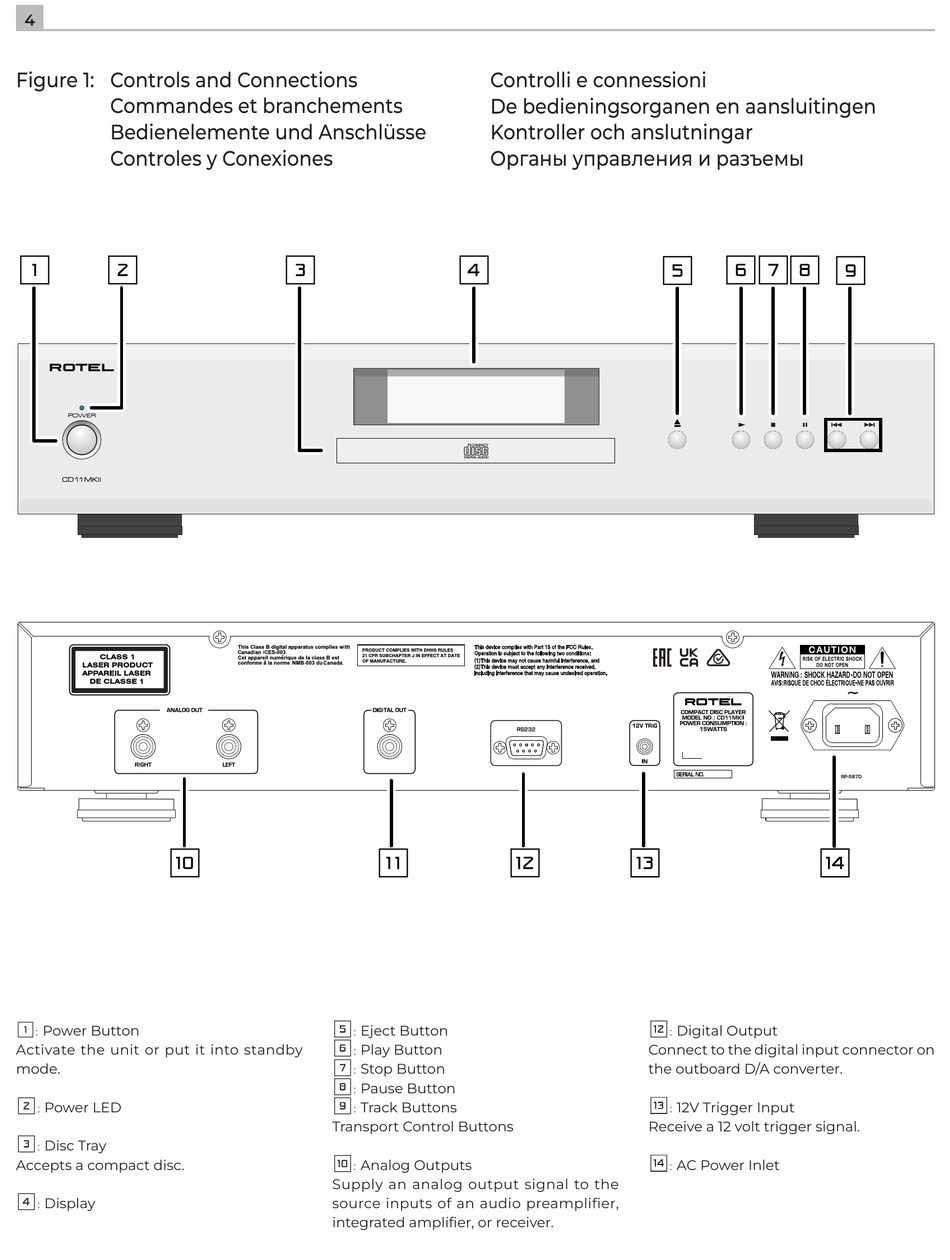

Figure 1: Controls and Connections
Commandes et branchements
Bedienelemente und Anschlüsse
Controles y Conexiones
1 2
POWER
0
: Power Button
1
Activate the unit or put it into standby
mode.
2 : Power LED
3
: Disc Tray
Accepts a compact disc.
4
: Display
3 4
-
5 : Eject Button
6 : Play Button
7 : Stop Button
8 : Pause Button
9 : Track Buttons
Transport Control Buttons
0
: Analog Outputs
Supply an analog output signal to the
source inputs of an audio preamplifier,
integrated amplifier, or receiver.
Controlli e connessioni
De bedieningsorganen en aansluitingen
Kontroller och anslutningar
Органы управления и разъемы
5 678 9
= q
= : Digital Output
Connect to the digital input connector on
the outboard D/A converter.
q : 12V Trigger Input
Receive a 12 volt trigger signal.
w
: AC Power Inlet
w
