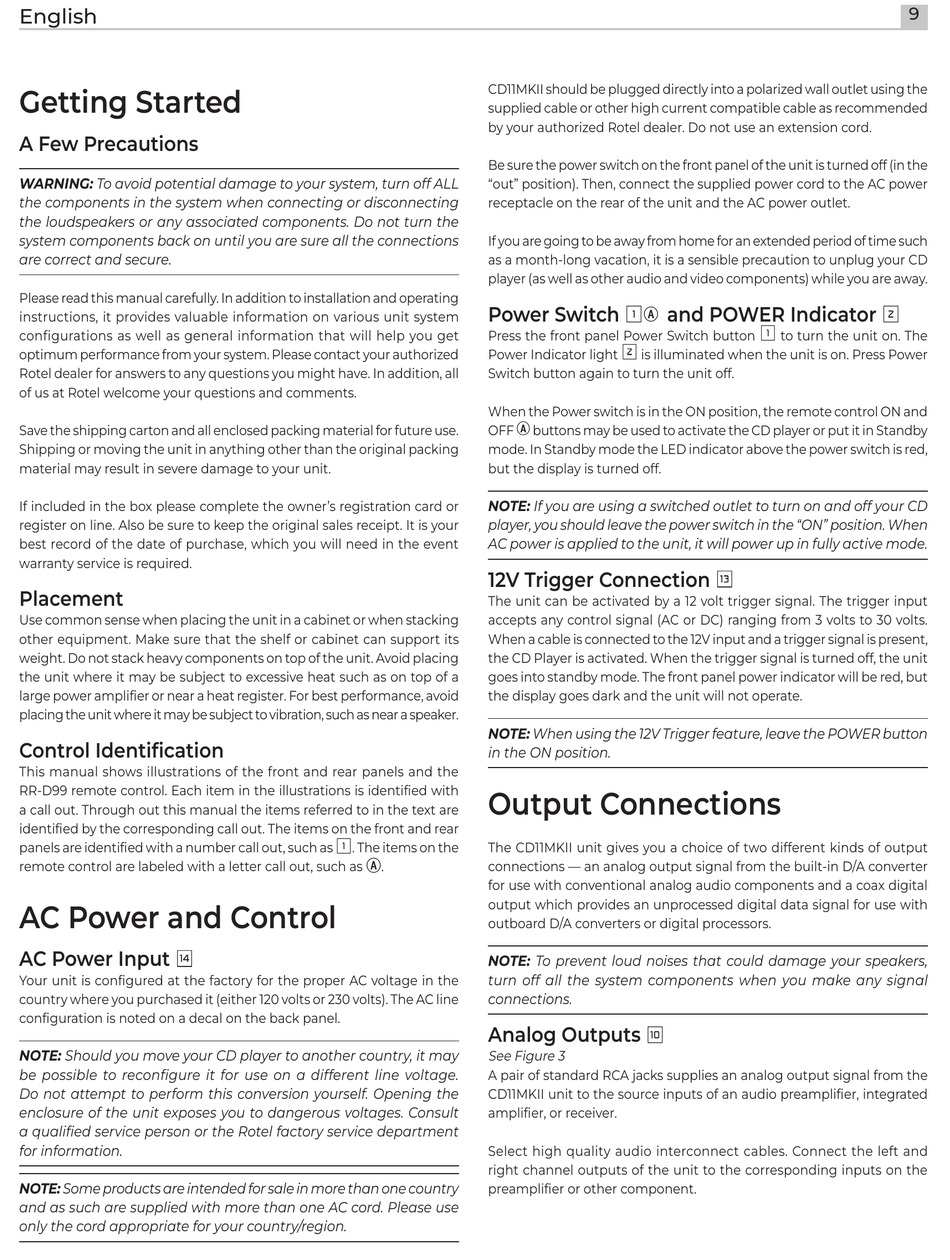

English

Getting Started

A Few Precautions

WARNING: To avoid potential damage to your system, turn off ALL
the components in the system when connecting or disconnecting
the loudspeakers or any associated components. Do not turn the
system components back on until you are sure all the connections
are correct and secure.
Please read this manual carefully. In addition to installation and operating
instructions, it provides valuable information on various unit system
configurations as well as general information that will help you get
optimum performance from your system. Please contact your authorized
Rotel dealer for answers to any questions you might have. In addition, all
of us at Rotel welcome your questions and comments.
Save the shipping carton and all enclosed packing material for future use.
Shipping or moving the unit in anything other than the original packing
material may result in severe damage to your unit.
If included in the box please complete the owner's registration card or
register on line. Also be sure to keep the original sales receipt. It is your
best record of the date of purchase, which you will need in the event
warranty service is required.

Placement

Use common sense when placing the unit in a cabinet or when stacking
other equipment. Make sure that the shelf or cabinet can support its
weight. Do not stack heavy components on top of the unit. Avoid placing
the unit where it may be subject to excessive heat such as on top of a
large power amplifier or near a heat register. For best performance, avoid
placing the unit where it may be subject to vibration, such as near a speaker.

Control Identification

This manual shows illustrations of the front and rear panels and the
RR-D99 remote control. Each item in the illustrations is identified with
a call out. Through out this manual the items referred to in the text are
identified by the corresponding call out. The items on the front and rear
panels are identified with a number call out, such as
remote control are labeled with a letter call out, such as

AC Power and Control

AC Power Input w

Your unit is configured at the factory for the proper AC voltage in the
country where you purchased it (either 120 volts or 230 volts). The AC line
configuration is noted on a decal on the back panel.
NOTE: Should you move your CD player to another country, it may
be possible to reconfigure it for use on a different line voltage.
Do not attempt to perform this conversion yourself. Opening the
enclosure of the unit exposes you to dangerous voltages. Consult
a qualified service person or the Rotel factory service department
for information.
NOTE: Some products are intended for sale in more than one country
and as such are supplied with more than one AC cord. Please use
only the cord appropriate for your country/region.
CD11MKII should be plugged directly into a polarized wall outlet using the
supplied cable or other high current compatible cable as recommended
by your authorized Rotel dealer. Do not use an extension cord.
Be sure the power switch on the front panel of the unit is turned off (in the
"out" position). Then, connect the supplied power cord to the AC power
receptacle on the rear of the unit and the AC power outlet.
If you are going to be away from home for an extended period of time such
as a month-long vacation, it is a sensible precaution to unplug your CD
player (as well as other audio and video components) while you are away.

Power Switch 1 A and POWER Indicator 2

Press the front panel Power Switch button
Power Indicator light
Switch button again to turn the unit off.
When the Power switch is in the ON position, the remote control ON and
OFF
mode. In Standby mode the LED indicator above the power switch is red,
but the display is turned off.
NOTE: If you are using a switched outlet to turn on and off your CD
player, you should leave the power switch in the "ON" position. When
AC power is applied to the unit, it will power up in fully active mode.

12V Trigger Connection q

The unit can be activated by a 12 volt trigger signal. The trigger input
accepts any control signal (AC or DC) ranging from 3 volts to 30 volts.
When a cable is connected to the 12V input and a trigger signal is present,
the CD Player is activated. When the trigger signal is turned off, the unit
goes into standby mode. The front panel power indicator will be red, but
the display goes dark and the unit will not operate.
NOTE: When using the 12V Trigger feature, leave the POWER button
in the ON position.

Output Connections

1
. The items on the The CD11MKII unit gives you a choice of two different kinds of output
A . connections — an analog output signal from the built-in D/A converter
for use with conventional analog audio components and a coax digital
output which provides an unprocessed digital data signal for use with
outboard D/A converters or digital processors.
NOTE: To prevent loud noises that could damage your speakers,
turn off all the system components when you make any signal
connections.

Analog Outputs 0

See Figure 3
A pair of standard RCA jacks supplies an analog output signal from the
CD11MKII unit to the source inputs of an audio preamplifier, integrated
amplifier, or receiver.
Select high quality audio interconnect cables. Connect the left and
right channel outputs of the unit to the corresponding inputs on the
preamplifier or other component.
2
is illuminated when the unit is on. Press Power
A buttons may be used to activate the CD player or put it in Standby
9
1
to turn the unit on. The
