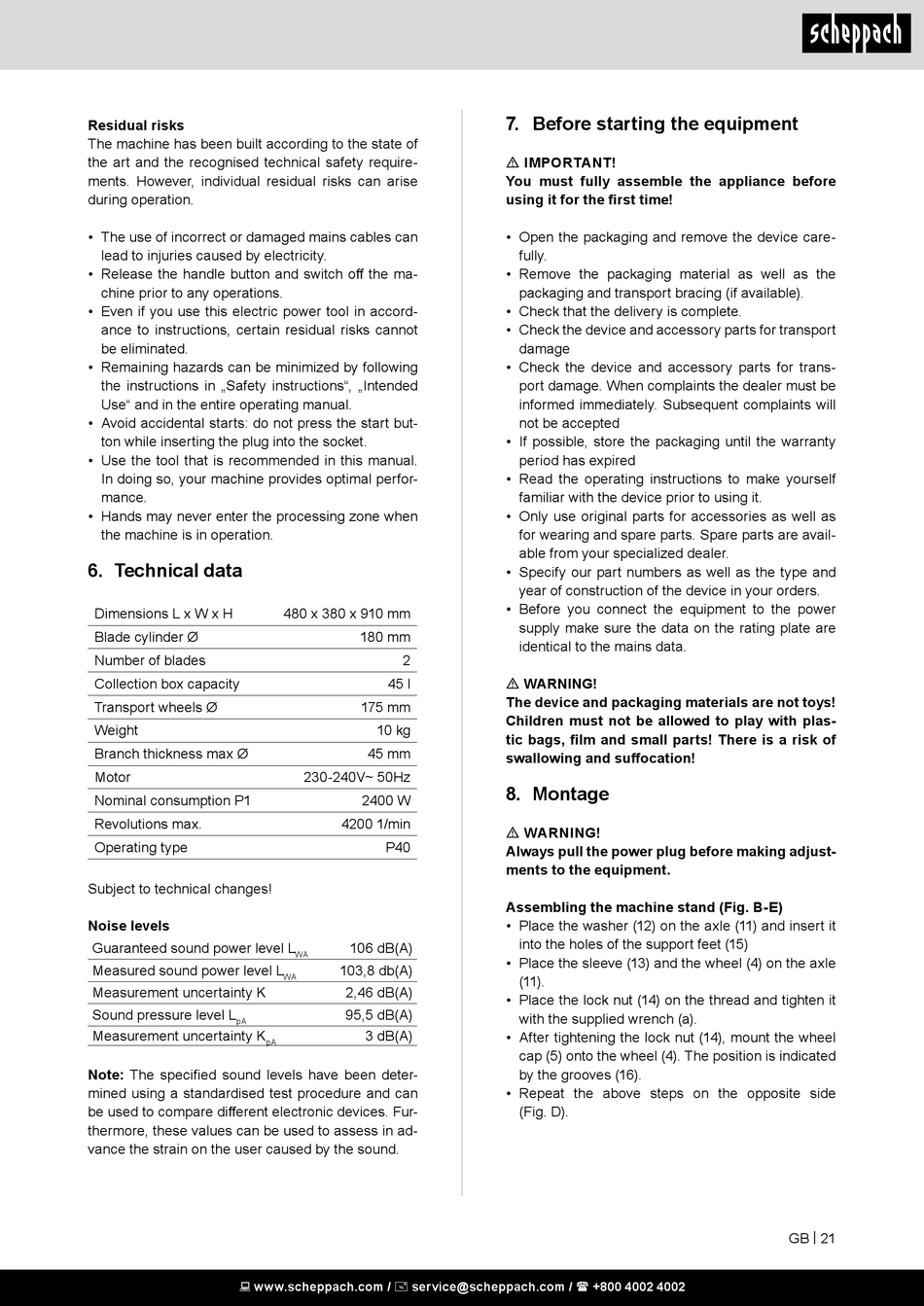

Residual risks
The machine has been built according to the state of
the art and the recognised technical safety require-
ments. However, individual residual risks can arise
during operation.
• The use of incorrect or damaged mains cables can
lead to injuries caused by electricity.
• Release the handle button and switch off the ma-
chine prior to any operations.
• Even if you use this electric power tool in accord-
ance to instructions, certain residual risks cannot
be eliminated.
• Remaining hazards can be minimized by following
the instructions in „Safety instructions", „Intended
Use" and in the entire operating manual.
• Avoid accidental starts: do not press the start but-
ton while inserting the plug into the socket.
• Use the tool that is recommended in this manual.
In doing so, your machine provides optimal perfor-
mance.
• Hands may never enter the processing zone when
the machine is in operation.

6. Technical data

Dimensions L x W x H
Blade cylinder Ø
Number of blades
Collection box capacity
Transport wheels Ø
Weight
Branch thickness max Ø
Motor
Nominal consumption P1
Revolutions max.
Operating type
Subject to technical changes!
Noise levels
Guaranteed sound power level L
Measured sound power level L
Measurement uncertainty K
Sound pressure level L
pA
Measurement uncertainty K
Note: The specified sound levels have been deter-
mined using a standardised test procedure and can
be used to compare different electronic devices. Fur-
thermore, these values can be used to assess in ad-
vance the strain on the user caused by the sound.
 www.scheppach.com /  service@scheppach.com /  +800 4002 4002
480 x 380 x 910 mm
180 mm
2
45 l
175 mm
10 kg
45 mm
230-240V~ 50Hz
2400 W
4200 1/min
P40
106 dB(A)
WA
103,8 db(A)
WA
2,46 dB(A)
95,5 dB(A)
3 dB(A)
pA

7. Before starting the equipment

m IMPORTANT!
You must fully assemble the appliance before
using it for the first time!
• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the
packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport
damage
• Check the device and accessory parts for trans-
port damage. When complaints the dealer must be
informed immediately. Subsequent complaints will
not be accepted
• If possible, store the packaging until the warranty
period has expired
• Read the operating instructions to make yourself
familiar with the device prior to using it.
• Only use original parts for accessories as well as
for wearing and spare parts. Spare parts are avail-
able from your specialized dealer.
• Specify our part numbers as well as the type and
year of construction of the device in your orders.
• Before you connect the equipment to the power
supply make sure the data on the rating plate are
identical to the mains data.
m WARNING!
The device and packaging materials are not toys!
Children must not be allowed to play with plas-
tic bags, film and small parts! There is a risk of
swallowing and suffocation!

8. Montage

m WARNING!
Always pull the power plug before making adjust-
ments to the equipment.
Assembling the machine stand (Fig. B-E)
• Place the washer (12) on the axle (11) and insert it
into the holes of the support feet (15)
• Place the sleeve (13) and the wheel (4) on the axle
(11).
• Place the lock nut (14) on the thread and tighten it
with the supplied wrench (a).
• After tightening the lock nut (14), mount the wheel
cap (5) onto the wheel (4). The position is indicated
by the grooves (16).
• Repeat the above steps on the opposite side
(Fig. D).
