INSTALLATION
Installation dimensions
inside the cabinet
x<51 mm: y = 51 mm - x
x>= 51 mm: y = 0 mm
EN 22
Installation dimensions

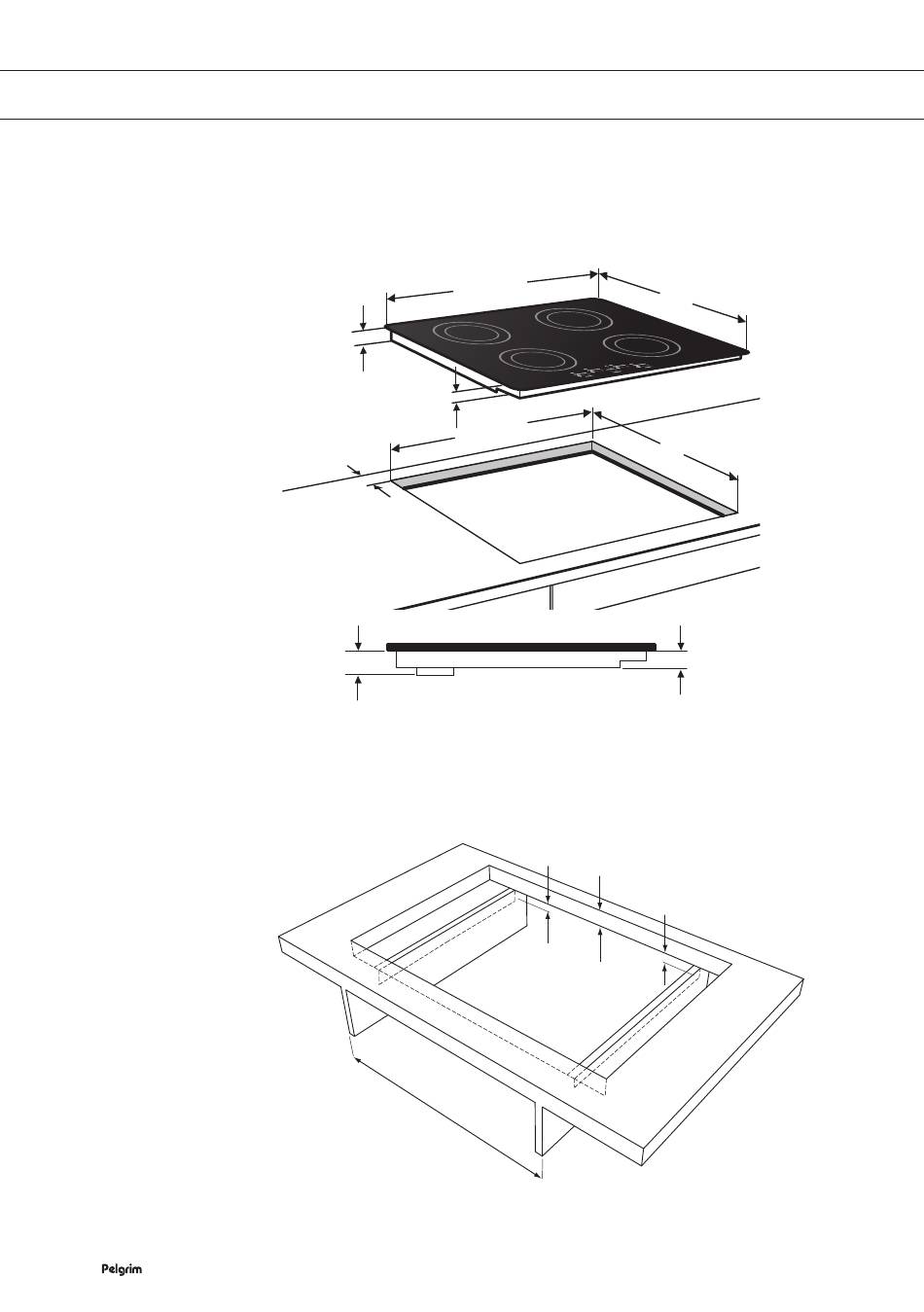

The dimensions and recesses are shown in the illustrations beneath.
64
51
min.50
64
If the hob is wider than the cupboard, with a worktop less than 51 mm
thick, saw a cut-out in both sides of the cupboard, so the appliance is
detached from the cupboard.
600
580/770
560/750
Y
X
510
490
51
Y
