M O D E L I C B 4 3 0
M O D E L S I D E PA N E L
I C B 4 3 0
If you're installing a Model ICB430 with side
panels, check with your installer or use one of
the following Side Panel Installation Options.

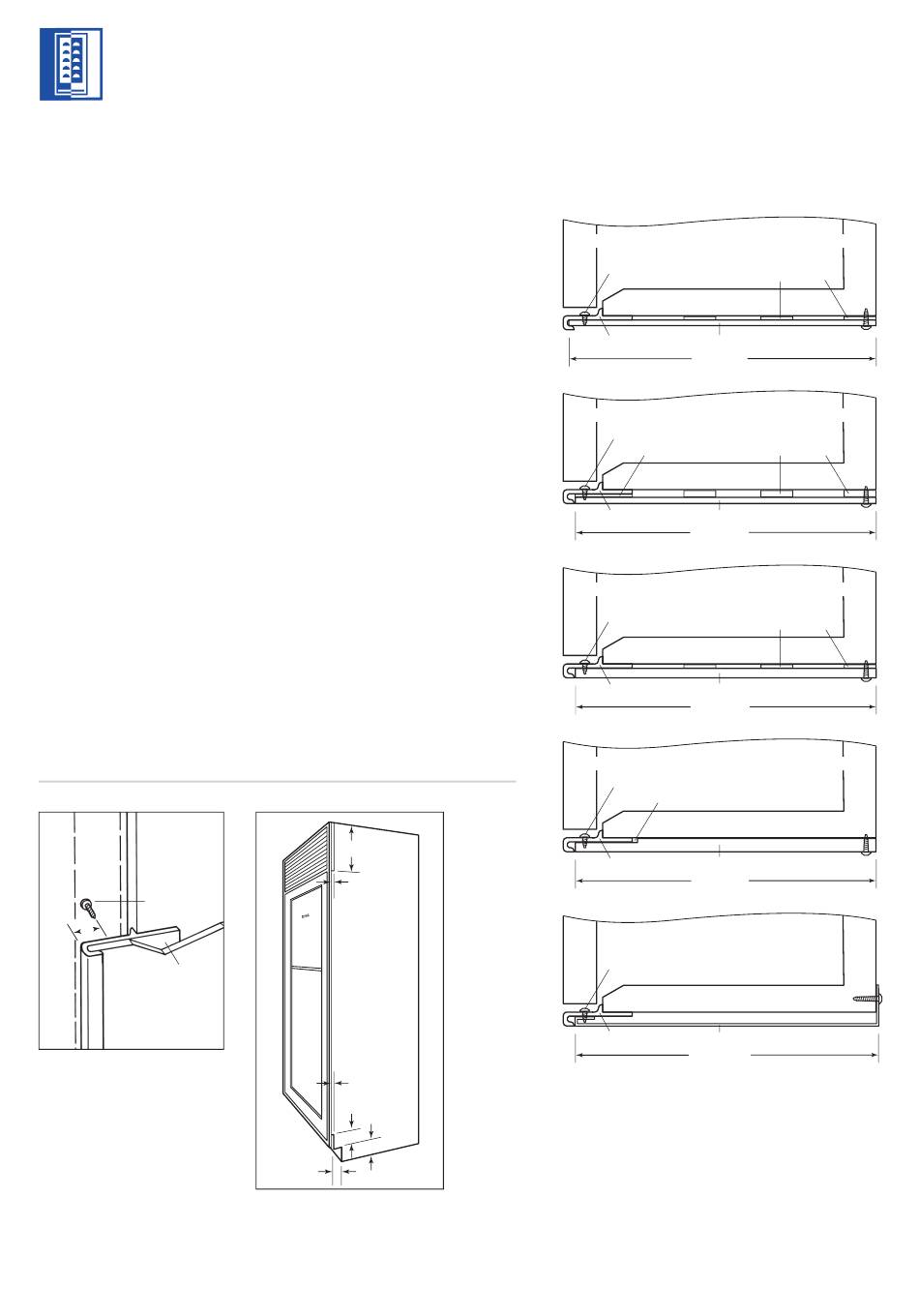

Drill three holes equidistant in a vertical
section of the aluminum frame, and install pan
head screws. Do not drill through model and
serial number plate. Anchor the side panel
with decorative screws or finishing nails from
a local hardware store. Do not use adhesives.
Refer to illustration 9 below.
The dimensions given in the Side Panel
Installation Options are for typical wood side
panels. If a 6 mm thick or less panel is used
and inserted into the return channel extrusion,
then a 616 mm wide panel is necessary. In this
application, the panel must be notched for the
grille and other brackets or screws that are in
the return channel. Toe kick cut-outs will be
necessary for all side panel applications. Refer
to illustration 10 below.
IMPORTANT NOTE: The use of side panels
may change the width of your rough opening.
IMPORTANT NOTE: The overall height on the
side panel will vary with the height of the grille
being used. Make sure you know your finished
height before cutting any panels.
DOOR
PAN HEAD
29
SCREW
mm
FRAME

SIDE PANEL

Illus. 9
32
All manuals and user guides at all-guides.com
I N S TA L L AT I O N I N S T R U C T I O N S
I N S TA L L AT I O N
337 mm
6 mm
6 mm
76 mm
76 mm
102 mm
Illus. 10
S I D E PA N E L I N S TA L L AT I O N O P T I O N S
6 mm THICK SIDE PANEL FITTED IN TO UNIT FRAME
DOOR PAN HEAD SCREW
3 mm THICK BATTENS
SIDE OF SUB-ZERO UNIT
FRAME 6 mm SIDE PANEL MATERIAL
616 mm
6 mm THICK SIDE PANEL FITTED UP TO UNIT FRAME
DOOR PAN HEAD SCREW
3 mm THICK BACK-UP
SIDE OF SUB-ZERO UNIT
FRAME 6 mm SIDE PANEL MATERIAL
610 mm
10 mm THICK SIDE PANEL FITTED UP TO UNIT FRAME
DOOR PAN HEAD SCREW
3 mm THICK BATTENS
SIDE OF SUB-ZERO UNIT
FRAME 10 mm SIDE PANEL MATERIAL
610 mm
13 mm THICK SIDE PANEL FITTED UP TO UNIT FRAME
DOOR PAN HEAD SCREW
3 mm ROUT
SIDE OF SUB-ZERO UNIT
FRAME
13 mm SIDE PANEL MATERIAL
610 mm
METAL SIDE PANEL FITTED UP TO UNIT FRAME
DOOR PAN HEAD SCREW
SIDE OF SUB-ZERO UNIT
FRAME
METAL SIDE PANEL MATERIAL
610 mm
Top Views
6 mm
THICK BATTENS
