M O D E L S I C B 4 2 7
M O D E L S A N T I - T I P B R AC K E T
I C B 4 2 7
I C B 4 2 7 R
To prevent the unit from tipping forward
and provide a stable installation, install
the anti-tip bracket and extend the front
leveling legs to the floor.
An anti-tip bracket and hardware is provided
with the Wine Storage unit. The anti-tip
bracket must be installed on a solid base to
prevent tipover in case several loaded wine
shelves are extended at the same time.
If you are installing the Model ICB427 or
ICB427R in a space deeper than 610 mm, the
anti-tip bracket must be installed no more than
610 mm deep, so it engages the unit properly.
It is important that this measurement be made
from the front of the unit without panels, to
the back of the anti-tip bracket.
S P E C I F I C A T I O N S
Dimension A
14
All manuals and user guides at all-guides.com
A N D I C B 4 2 7 R
I N S TA L L AT I O N
343 mm

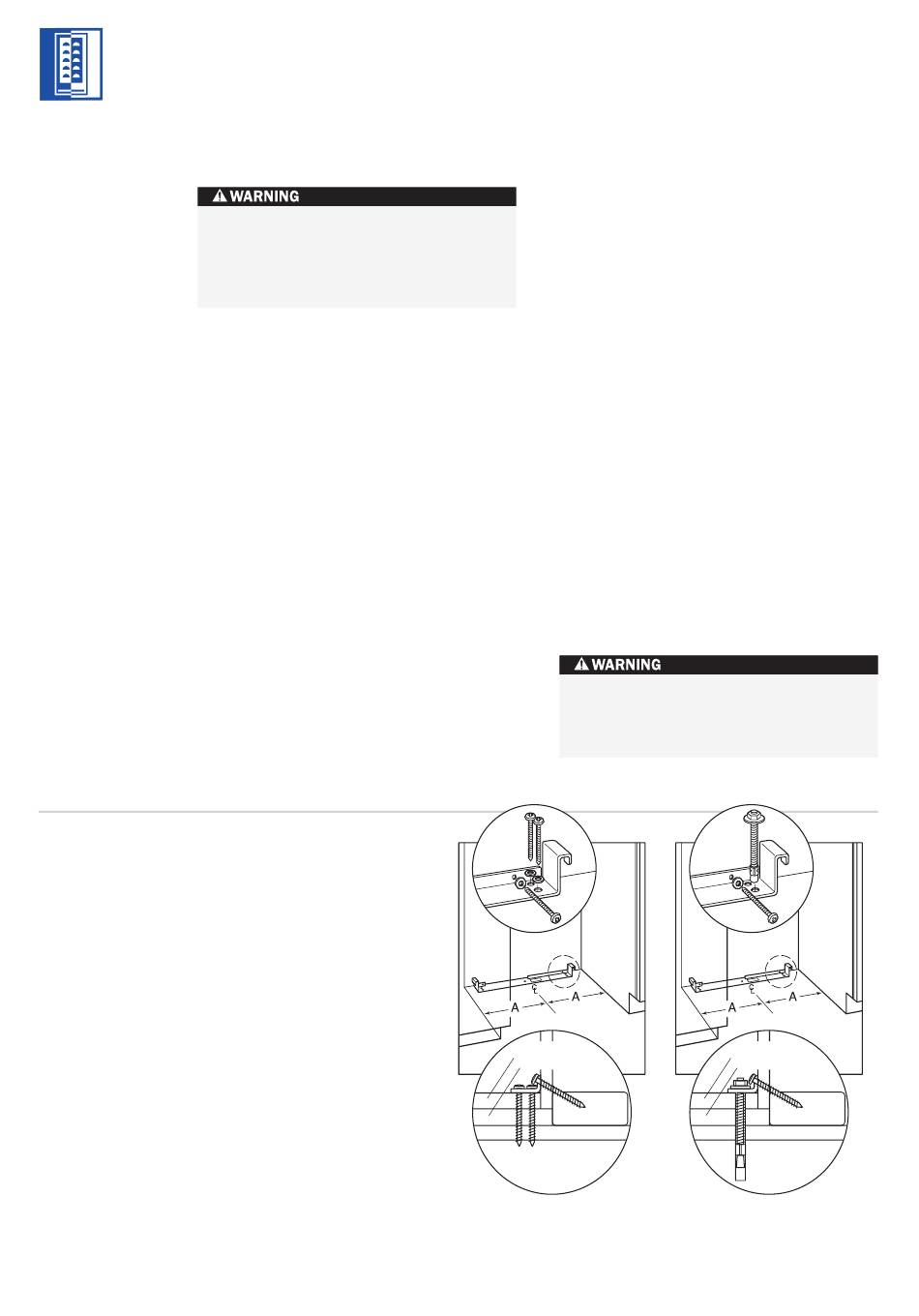

Illus. 1
I N S TA L L AT I O N
W O O D F L O O R A P P L I C AT I O N S
Use the six #12 x 64 mm wood screws and the
six 6 mm flat washers provided. Drill pilot
holes 5 mm diameter maximum, and be sure
that the screws penetrate through the flooring
material and into the wall plate a minimum of
19 mm. Be sure that the screws hold tight.
Refer to illustration 1 below.
C O N C R E T E F L O O R A P P L I C AT I O N S
Use the two 10 mm x 95 mm concrete wedge
anchors, two # 12 x 64 mm wood screws and
two 6 mm flat washers provided. Be sure that
the anchors and screws hold tight. Refer to
illustration 2 below.
IMPORTANT NOTE: In some installations the
subflooring or finished floor may require
angling the wood screws used to fasten the
anti-tip bracket to the back wall. Refer to illus-
trations 1 and 2 below.
Make sure that there are no electrical
wires in the area which the screws could
penetrate.
Finished Flooring
Underlayment
Wall Plate
Subflooring
WOOD FLOOR
Finished Flooring
Underlayment
Wall Plate
Subflooring
38
mm
CONCRETE
min
FLOOR
Illus. 2
