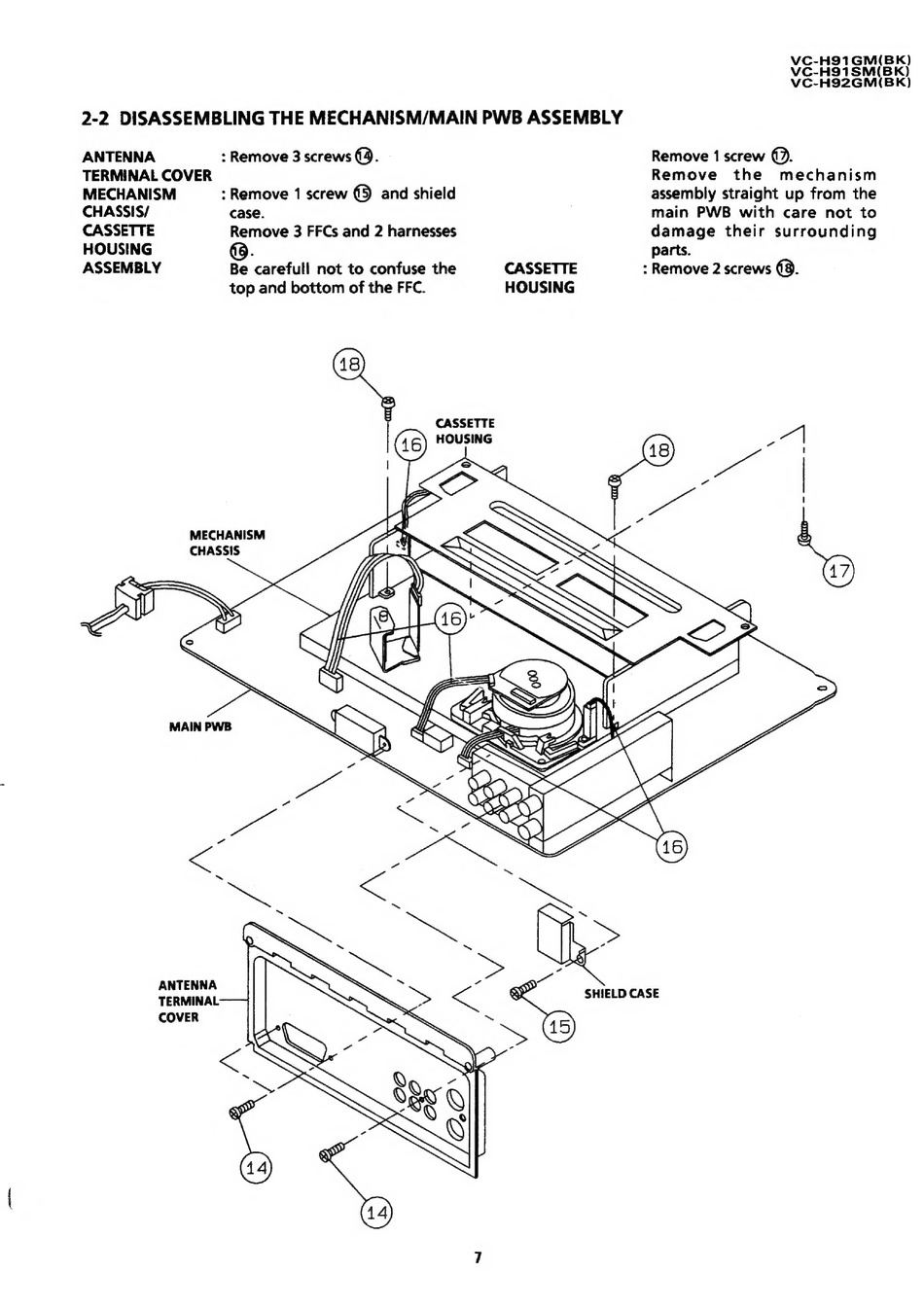

2-2 DISASSEMBLING THE MECHANISM/MAIN PWB ASSEMBLY
ANTENNA
: Remove 3 screws (4.
Remove 1 screw @.
TERMINAL COVER
Remove
the
mechanism
MECHANISM
: Remove 1 screw (3 and shield
assembly straight up from the
CHASSIS/
case.
main PWB with care not to
CASSETTE
Remove 3 FFCs and 2 harnesses
damage their surrounding
HOUSING
(9.
parts.
ASSEMBLY
Be carefull not to confuse the
CASSETTE
: Remove 2 screws (8.
top and bottom of the FFC.
HOUSING
CASSETTE
HOUSING
MECHANISM
CHASSIS
ANTENNA
TERMINAL
COVER
SHIELD CASE
