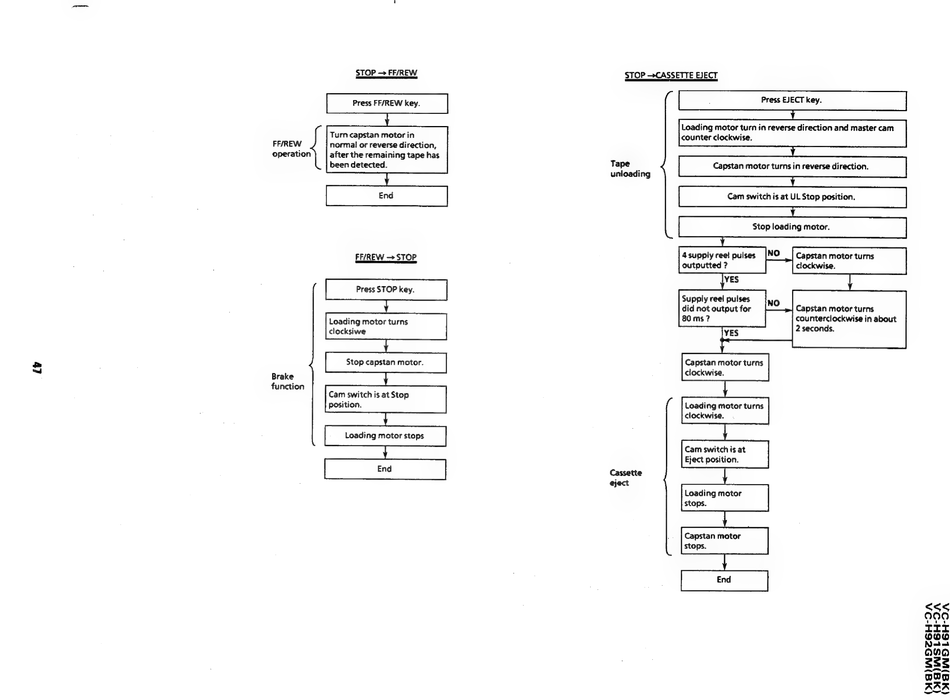

STOP —> FF/REW
Press FF/REW key.
Turn capstan motor in
normal or reverse direction,
after the remaining tape has
been detected.
FF/REW
operation
FF/REW — STOP
Press STOP key.
Loading motor turns
clocksiwe
Stop capstan motor.
Brake
function
;
Cam switch is at Stop
position.
Loading motor stops
STOP
—-CASSETTE EJECT
Tape
unloading
Cassette
eject
Press EJECT key.
Loading motor turn in reverse direction and master cam
counter clockwise.
Capstan motor turns in reverse direction.
Cam switch is at UL Stop position.
Stop loading motor.
4supplyreet pulses
|NO | capstan motor turns
outputted ?
clockwise.
Supply reel pulses
did not output for
Capstan motor turns
80 ms ?
counterclockwise in about
2 seconds.
Capstan motor turns
clockwise.
Loading motor turns
clockwise.
Cam switch is at
Eject position.
Loading motor
stops.
Capstan motor
stops.
(1)
INDZ6GH-DA
OIG@)INSLG
ONDINDLG
