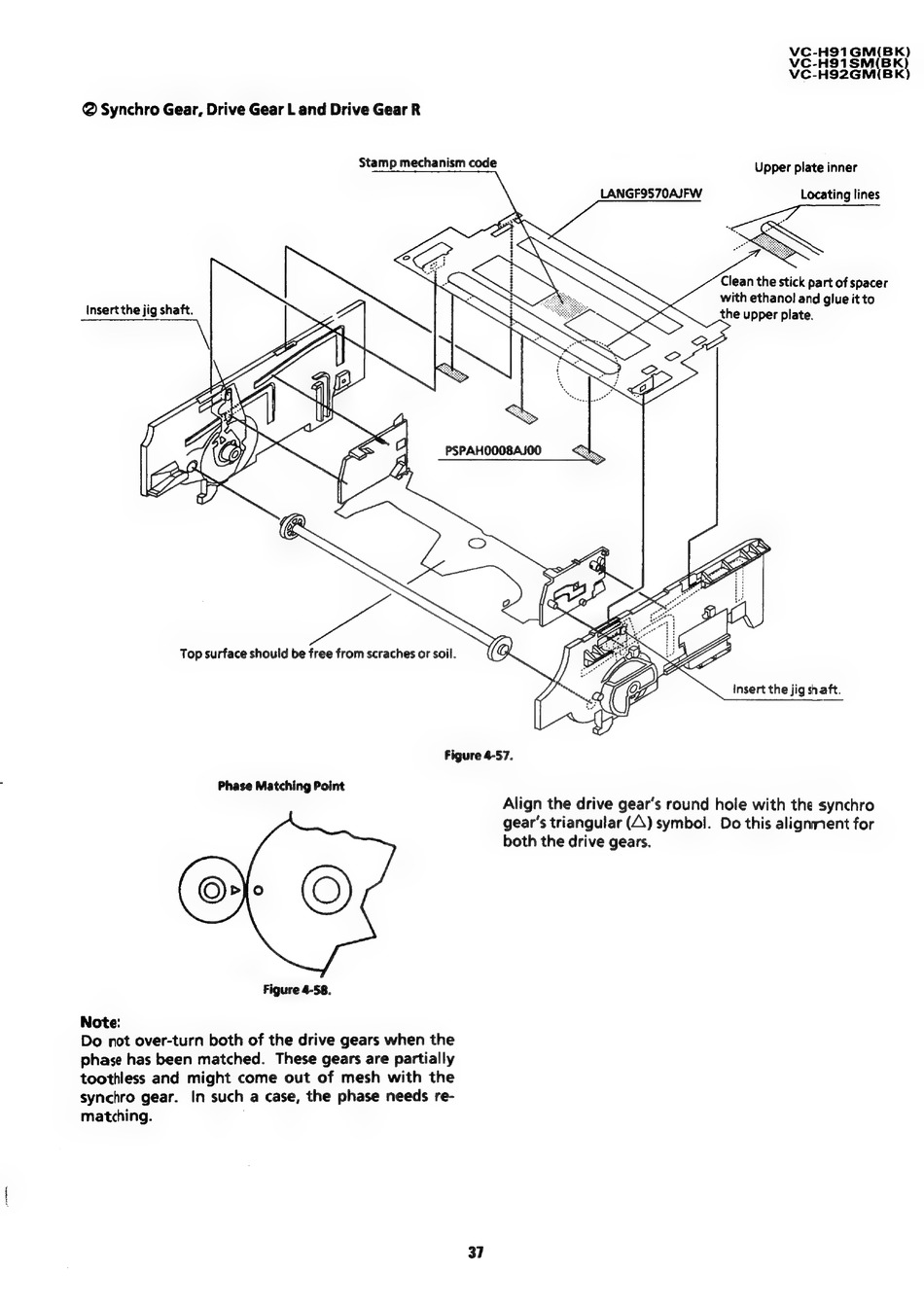

@ Synchro Gear, Drive Gear L and Drive Gear R
LANGF9570AJFW
Locating lines
Clean the stick part of spacer
with ethanol and glue it to
o
Y
i
Top surface should be free from scraches or soil.
(@
Insert the jig shaft.
Figure 4-57.
Phase Matching Point
Align the drive gear's round hole with the synchro
gear's triangular (A) symbol. Do this alignment for
both the drive gears.
©ry\e (©)
Figure 4-58.
Note:
Do not over-turn both of the drive gears when the
phase has been matched.
These gears are partially
toothless and might come out of mesh with the
synchro gear.
In such a case, the phase needs re-
matching.
