Drucksicherheitsplatte - SINTERIT LISA X Übersetzung Des Original-Benutzerhandbuchs

26
MAGNETVERSCHLÜSSE
27
T-STECKER MIT EINEM
DRUCKSENSOR
28
LUFTFILTER DER DEHYDRIERUNG
29
ROTAMETER
30
DROSSELRÜCKSCHLAGVENTIL

3.5 DRUCKSICHERHEITSPLATTE

Manufacturer
Sinterit sp. z o.o. ul. Nad Drwiną 10 bud. B3, 30-741 Kraków, Poland
www.sinterit.com support@sinterit.com
IEC Protection Class
Class 1
IP Code
Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed.3., as described in Laser Notice No. 56, dated May 8, 2019.
21
WI-FI-ANTENNE
22
ETHERNET-ANSCHLUSS
23
GASEINLASSNIPPEL
(SCHNELLKUPPLUNG)
24
NETZTEILANSCHLUSS
25
NETZSCHALTER (EIN/AUS)

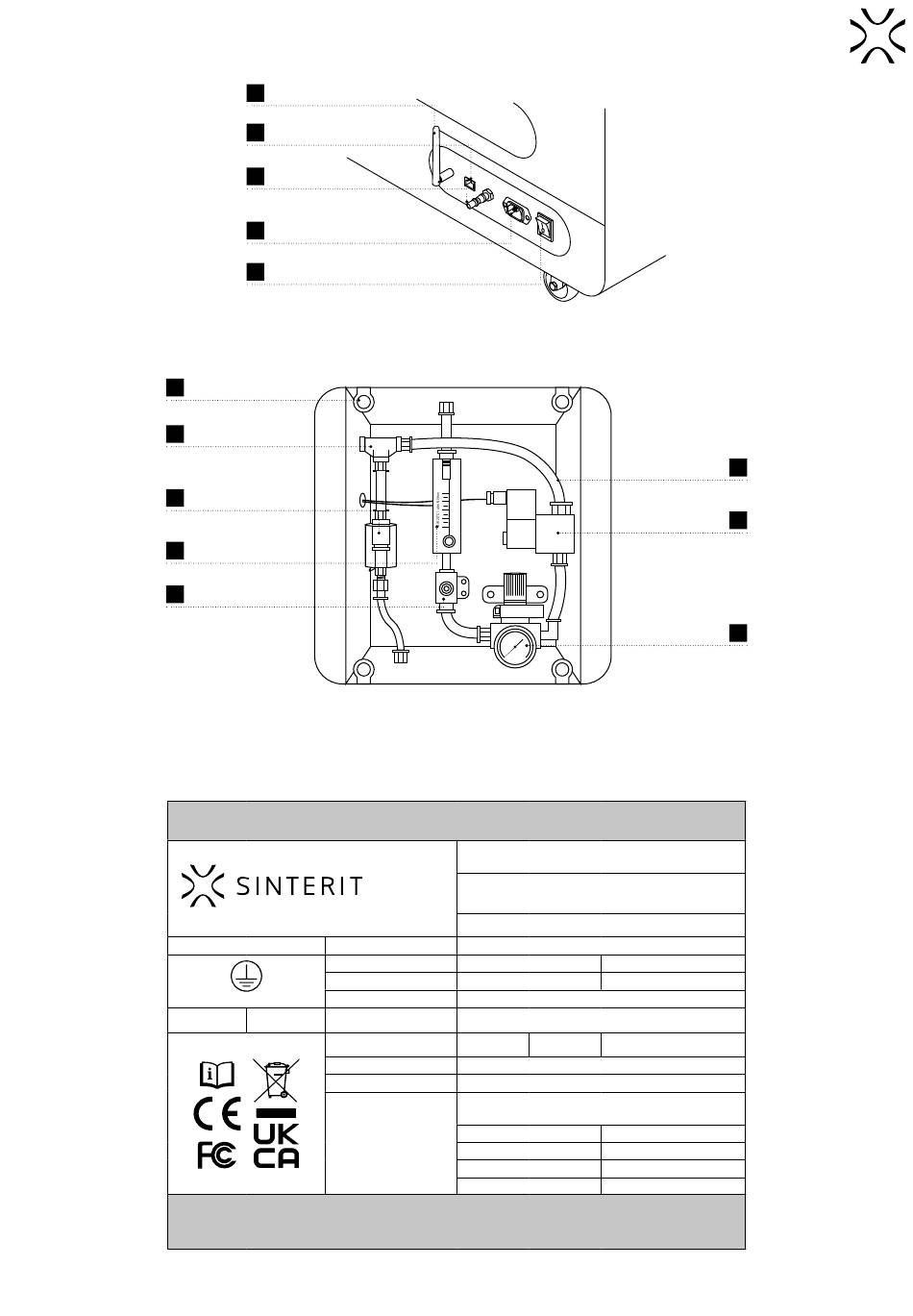

Abb. 3.4 Blick auf die Rückseite des Druckers.
Abb. 3.5 Blick auf das Inertgas-Kontrollsystem.
DO NOT REMOVE THIS LABEL!
Machine type
Dimensions
Total weight
Power consumption
IP20
AC current
Short-circuit
current rating
Contains devices FCC
Laser product class
Embedded laser
product class
WARNUNG! Read and understand operator's manual and all other safety instructions before using this machine.
Failure to follow operating instructions could result in serious injury.
10
8
6
4
2
Lisa X
Name
Serial number
Manufactured Made in EU / POLAND
SELECTIVE LASER SINTERING 3D PRINTER
650 x 610 x 1200 [mm] 25.6 x 24.0 x 47.2 [in]
145 [kg] 319 [lbs]
190-240 [V] AC, 50-60 [Hz], 1.65 [kW]
8 [A] / 230 [V] AC
Number
6 [kA] 1
of phases
FCC ID: 2ABCB-RPICM4
CLASS 1 IR LASER PRODUCT INVISIBLE LASER RADIATION
CLASS 4 IR LASER PRODUCT
INVISIBLE LASER RADIATION
wavelength λ = 976 ± 3 [nm]
beam divergence θ = 13°
beam output CW (CONTINUOUS WAVE)
maximum power 30 [W]
Sinterit LISA X SLS 3D-DRUCKER Benutzerhandbuchs | 14
33
PNEUMATIKSCHLAUCH
32
PNEUMATIK-
MAGNETVENTIL
31
DRUCKMINDERER MIT
EINGEBAUTEM
MANOMETER
