Installation

Mounting

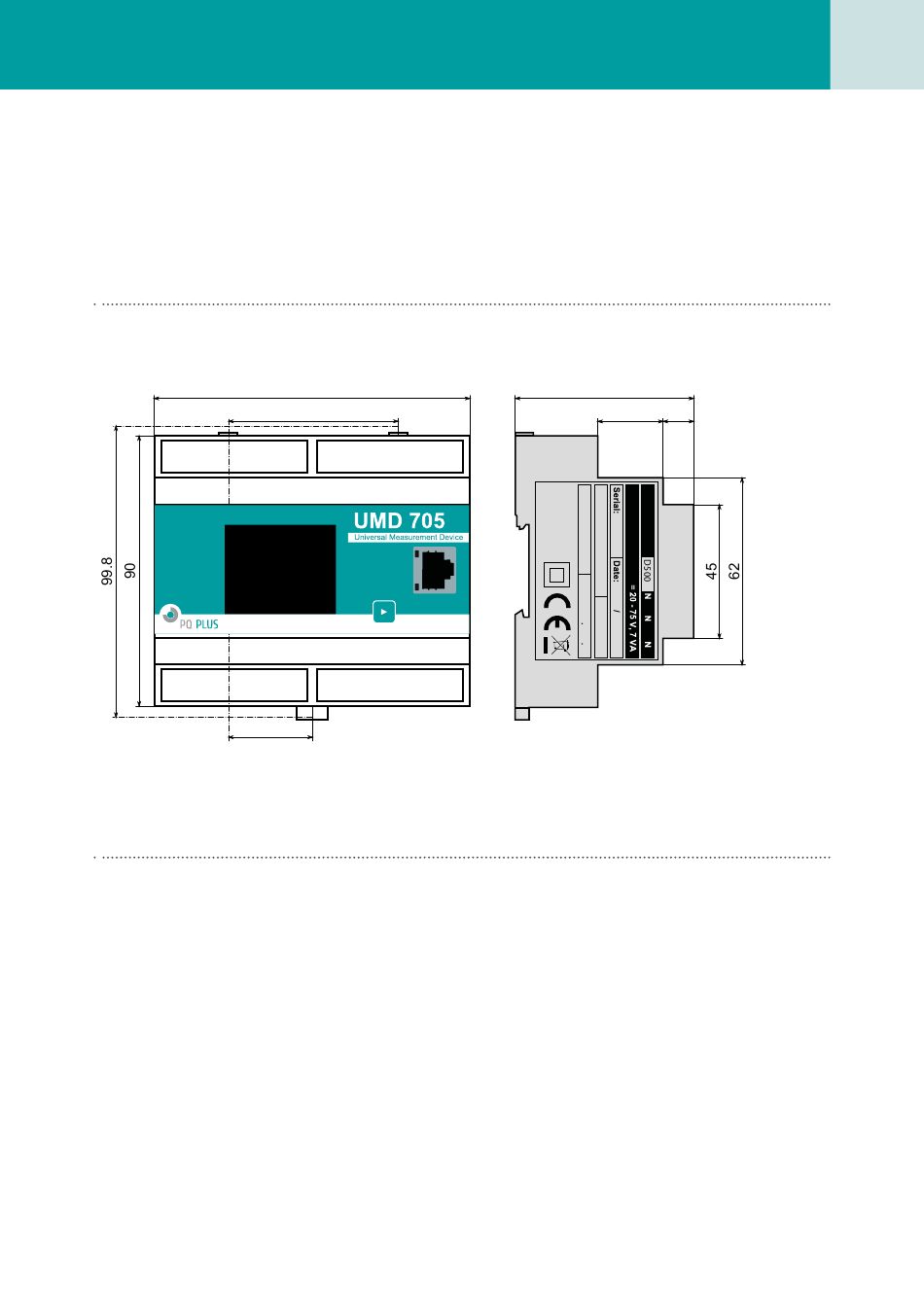

The UMD 705 is intended for mounting on the DIN top-hat rail.
5
30.3

Voltage supply

The UMD 705 is available with 2 different voltage supplies:
The 24 V version requires a voltage of:
•
The 230 V version requires a voltage of:
•
The connections for this are located at the bottom of the UMD and labelled
X1 and X2. It is recommended to protect the voltage supply with a 1 A
circuit breaker.
106
60.6
ETH
PQ Plus – UMD 705
58
21.5 10
20 ... 50 V
AC
20 ... 75 V
DC
85 ... 510 V
AC
85 ... 350 V
DC
