Product description

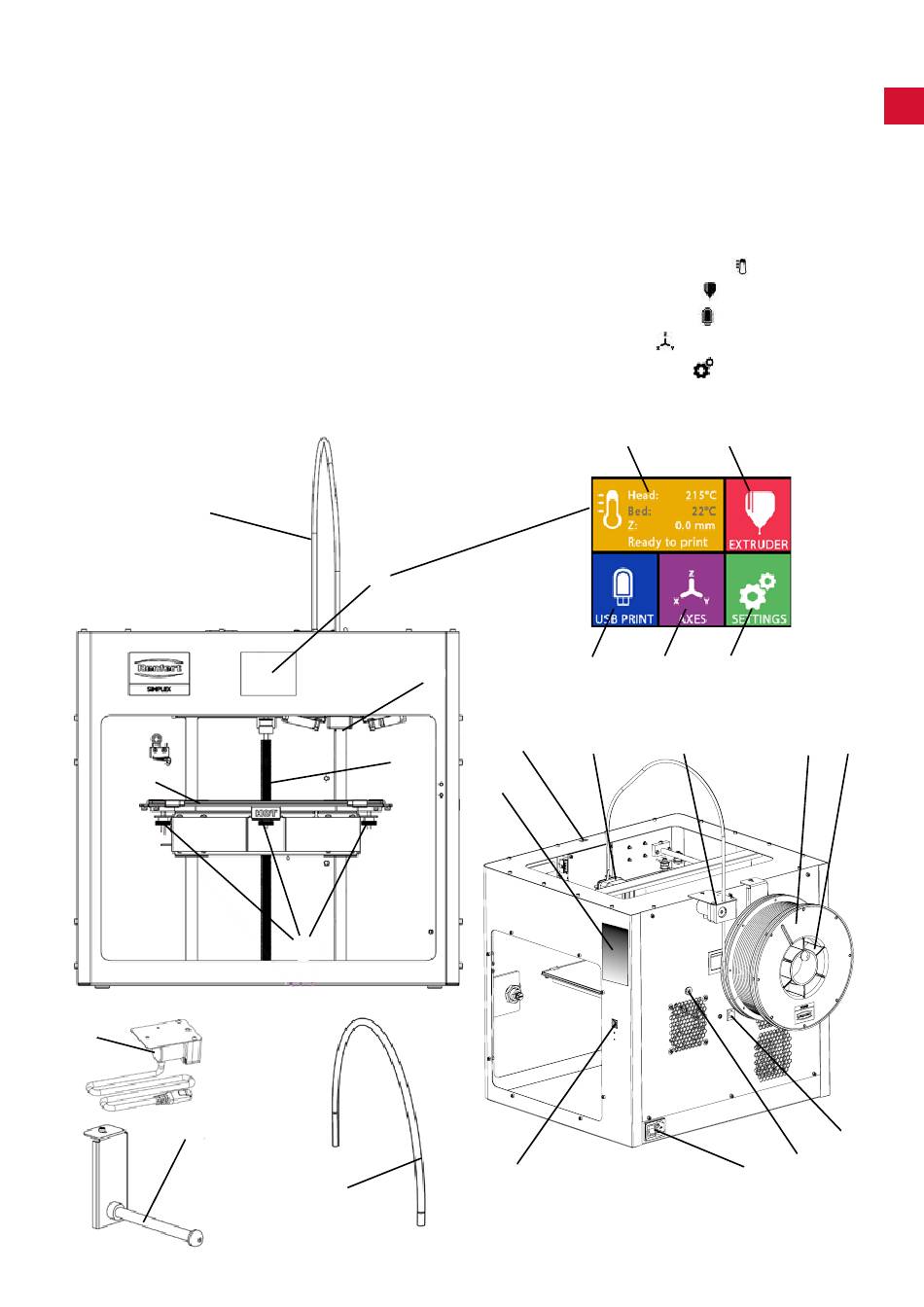

3.1 Assemblies and functional elements
1
Touchscreen LCD display / main menu
2 Filament guiding tube
3 Nozzle
4
Removable glass plate
5 Leveling knobs
6 Z-Axis rod
7
Filament spool holder
8 Filament spool
9 Filament sensor
10 Extruder
11 USB A port for USB flash drive
2
4
9
7
1
3
6
5
2
- 7 -
12 USB B port for connection to a PC
13 ON/OFF switch / connection for mains
power supply
14 Port for filament sensor
15 Port for cover fan
16 Distance card
17 Menu - TEMPERATURE
18 Menu - EXTRUDER
19 Menu - USB PRINT
20 Menu - AXES
21 Menu - SETTINGS
