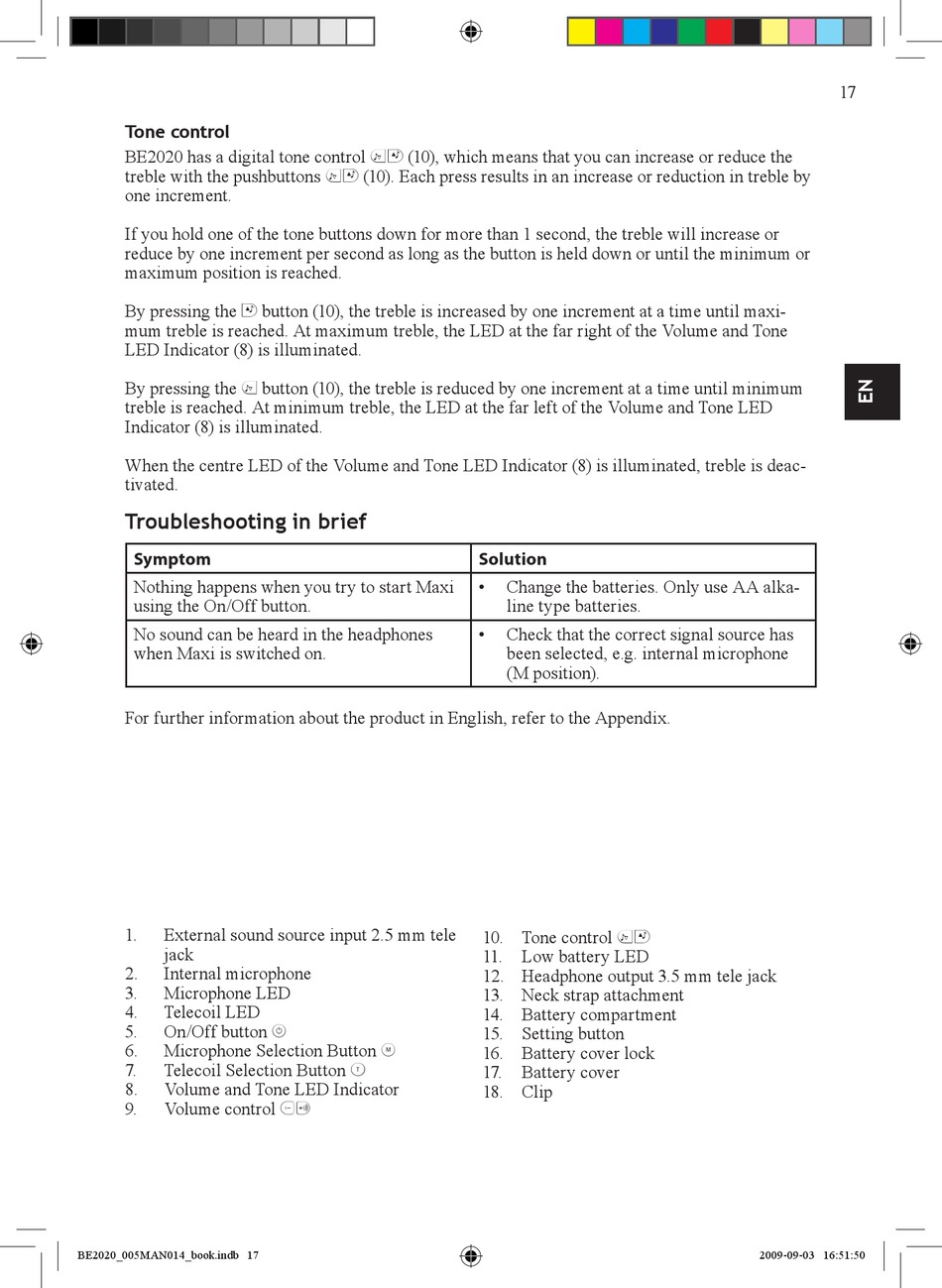

Tone Control; Troubleshooting In Brief - Bellman & Symfon Audio Maxi BE2020 Gebrauchsanweisung

Tone control

BE2020 has a digital tone control fg (10), which means that you can increase or reduce the
treble with the pushbuttons fg (10). Each press results in an increase or reduction in treble by
one increment.
If you hold one of the tone buttons down for more than 1 second, the treble will increase or
reduce by one increment per second as long as the button is held down or until the minimum or
maximum position is reached.
By pressing the g button (10), the treble is increased by one increment at a time until maxi-
mum treble is reached. At maximum treble, the LED at the far right of the Volume and Tone
LED Indicator (8) is illuminated.
By pressing the f button (10), the treble is reduced by one increment at a time until minimum
treble is reached. At minimum treble, the LED at the far left of the Volume and Tone LED
Indicator (8) is illuminated.
When the centre LED of the Volume and Tone LED Indicator (8) is illuminated, treble is deac-
tivated.

Troubleshooting in brief

Symptom
Nothing happens when you try to start Maxi
using the On/Off button.
No sound can be heard in the headphones
when Maxi is switched on.
For further information about the product in English, refer to the Appendix.
1. External sound source input 2.5 mm tele
jack
2. Internal microphone
3. Microphone LED
4. Telecoil LED
5. On/Off button h
6. Microphone Selection Button a
7. Telecoil Selection Button d
8. Volume and Tone LED Indicator
9. Volume control bc
BE2020_005MAN014_book.indb 17
Solution
• Change the batteries. Only use AA alka-
line type batteries.
• Check that the correct signal source has
been selected, e.g. internal microphone
(M position).
10. Tone control fg
11. Low battery LED
12. Headphone output 3.5 mm tele jack
13. Neck strap attachment
14. Battery compartment
15. Setting button
16. Battery cover lock
17. Battery cover
18. Clip
17
2009-09-03 16:51:50
