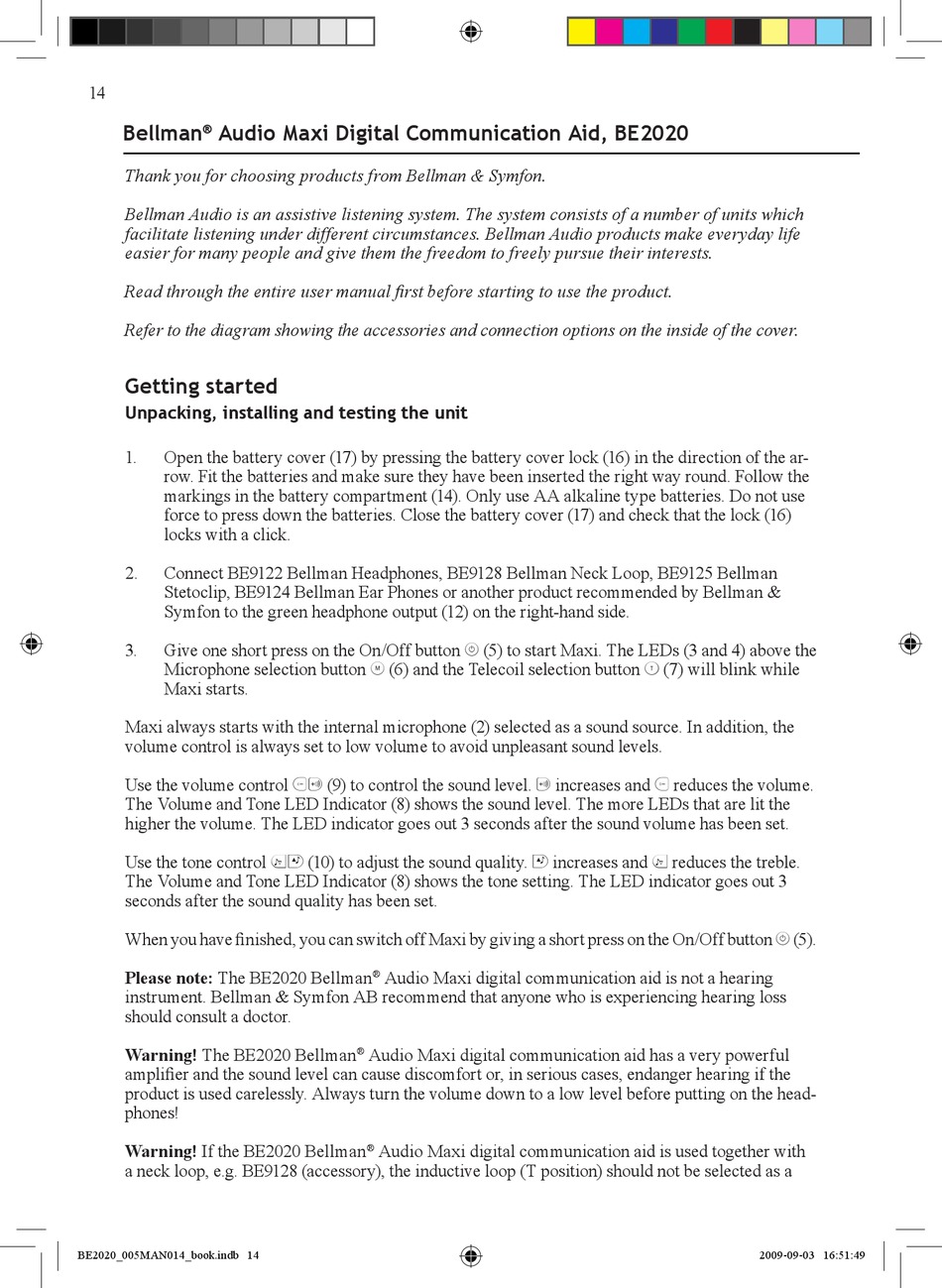

Bellman Audio Maxi Digital Communication Aid, BE2020
®
Thank you for choosing products from Bellman & Symfon.
Bellman Audio is an assistive listening system. The system consists of a number of units which
facilitate listening under different circumstances. Bellman Audio products make everyday life
easier for many people and give them the freedom to freely pursue their interests.
Read through the entire user manual first before starting to use the product.
Refer to the diagram showing the accessories and connection options on the inside of the cover.

Getting started

Unpacking, installing and testing the unit
1. Open the battery cover (17) by pressing the battery cover lock (16) in the direction of the ar-
row. Fit the batteries and make sure they have been inserted the right way round. Follow the
markings in the battery compartment (14). Only use AA alkaline type batteries. Do not use
force to press down the batteries. Close the battery cover (17) and check that the lock (16)
locks with a click.
2. Connect BE9122 Bellman Headphones, BE9128 Bellman Neck Loop, BE9125 Bellman
Stetoclip, BE9124 Bellman Ear Phones or another product recommended by Bellman &
Symfon to the green headphone output (12) on the right-hand side.
3. Give one short press on the On/Off button h (5) to start Maxi. The LEDs (3 and 4) above the
Microphone selection button a (6) and the Telecoil selection button d (7) will blink while
Maxi starts.
Maxi always starts with the internal microphone (2) selected as a sound source. In addition, the
volume control is always set to low volume to avoid unpleasant sound levels.
Use the volume control bc (9) to control the sound level. c increases and b reduces the volume.
The Volume and Tone LED Indicator (8) shows the sound level. The more LEDs that are lit the
higher the volume. The LED indicator goes out 3 seconds after the sound volume has been set.
Use the tone control fg (10) to adjust the sound quality. g increases and f reduces the treble.
The Volume and Tone LED Indicator (8) shows the tone setting. The LED indicator goes out 3
seconds after the sound quality has been set.
When you have finished, you can switch off Maxi by giving a short press on the On/Off button h (5).
Please note: The BE2020 Bellman
instrument. Bellman & Symfon AB recommend that anyone who is experiencing hearing loss
should consult a doctor.
Warning! The BE2020 Bellman
amplifier and the sound level can cause discomfort or, in serious cases, endanger hearing if the
product is used carelessly. Always turn the volume down to a low level before putting on the head-
phones!
Warning! If the BE2020 Bellman
a neck loop, e.g. BE9128 (accessory), the inductive loop (T position) should not be selected as a
BE2020_005MAN014_book.indb 14
Audio Maxi digital communication aid is not a hearing
®
Audio Maxi digital communication aid has a very powerful
®
Audio Maxi digital communication aid is used together with
®
