Intensity
In Intensity mode, the intensity can be adjusted.
Press the encoder and then turn the encoder until the Intensity function is indicated in the display. Confirm
by pressing the encoder. Now you can set the desired brightness from 000 – 255 by turning the encoder.
Confirm by pressing the encoder.
Strobe
In Strobe mode, you can set the speed for strobe.
Press the encoder and then turn the encoder until the Strobe function is indicated in the display. Confirm by
pressing the encoder. Now you can set the desired speed from 000 – 012. Confirm by pressing the encoder.
Curve
With this function, you can set various dimmer curves.
Press the encoder and then turn the encoder until the function Curve appears in the display.
Linear: the increase in light intensity appears to be linear as DMX value is increased. Confirm by pressing
the encoder. Turning the encoder takes you to a further dimmer curve.
Exponential: light intensity control is finer at low levels and coarser at high levels. Confirm by pressing the
encoder. Turning the encoder takes you to a further dimmer curve.
Logarythmic: light intensity control is coarser at low levels and finer at high levels. Confirm by pressing the
encoder. Turning the encoder takes you to a further dimmer curve.
S-type: light intensity control is fine at low levels and high levels and coarser at medium levels. Confirm by
pressing the encoder.

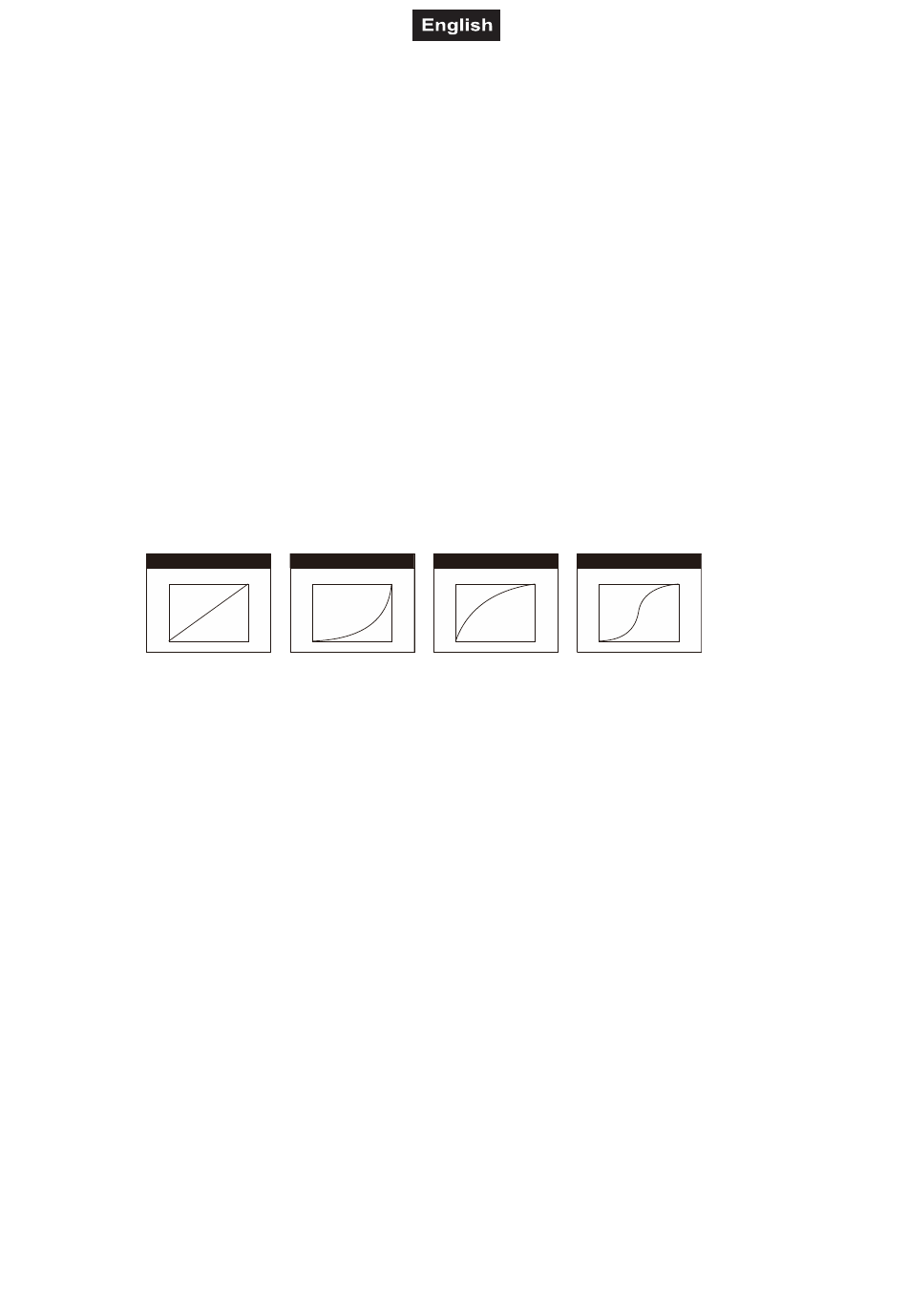

Curve 50C Curve 50C Curve 50C Curve 50C
Linear Exponential Logarythmic S-type
Mode
This function is used to set the DMX channel mode.
Set the DMX start address A001 by turning the encoder.
Press the encoder and then turn the encoder until the default setting mode 9CH appears in the display. By
pressing the encoder, the desired mode is indicated in color. By turning the encoder, you can now also
select 5CH or 6CHmode. Confirm by pressing the encoder.
PWM rate
With this function you can change the frequency of the pulse width modulation.
Press the encoder and then turn the encoder until the default setting of 1200 Hz is indicated in the display.
Confirm by pressing the encoder.
By turning the encoder you can now change the pulse width modulation from 800 Hz – 25000 Hz. Confirm by
pressing the encoder.
Correcting
Color correction
With this function a Color correction can be activated or deactivated. (ON/OFF).
