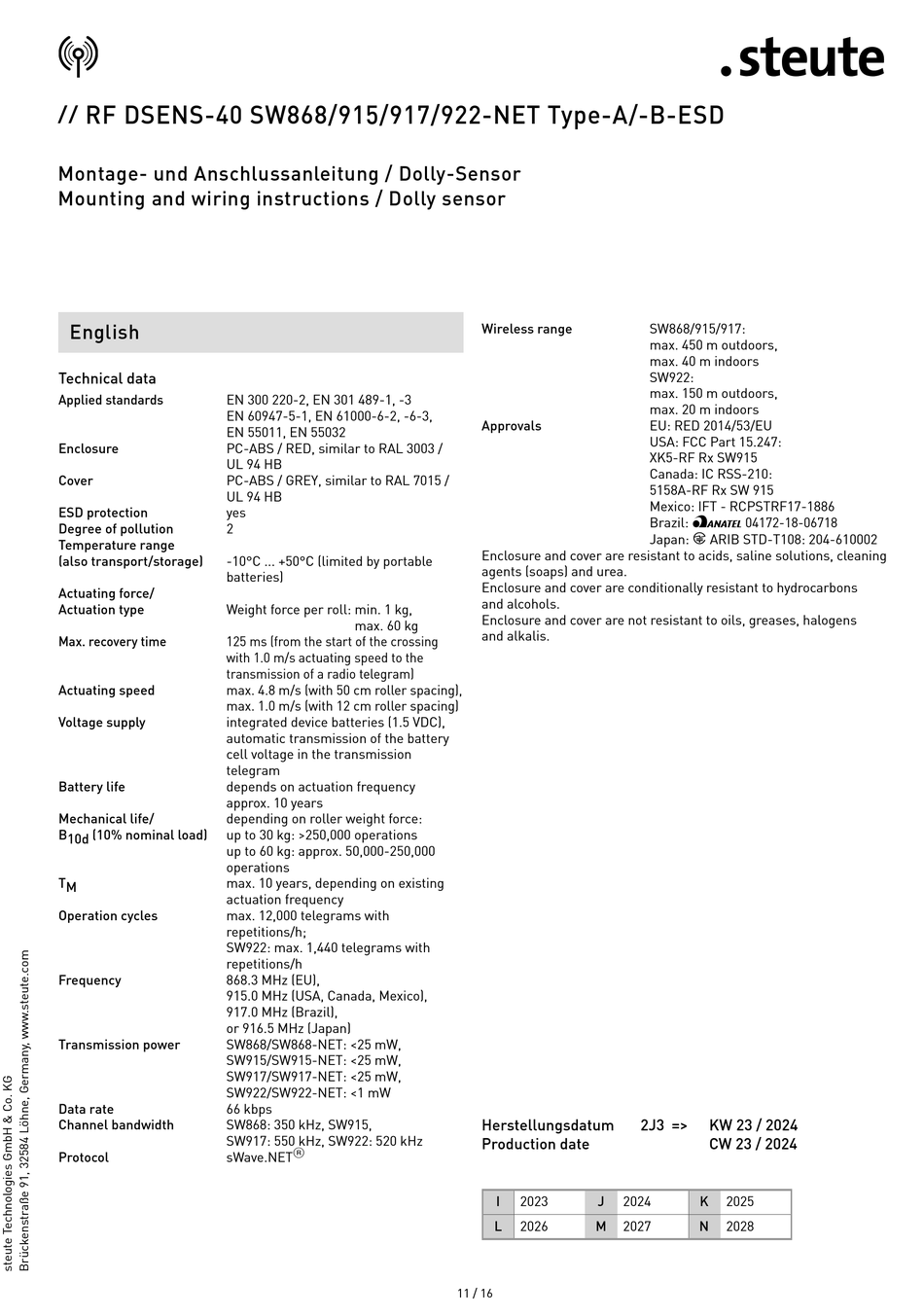

RF DSENS-40 SW868/915/917/922-NET Type-A/-B-ESD
//
Montage- und Anschlussanleitung / Dolly-Sensor
Mounting and wiring instructions / Dolly sensor
English
Technical data
Applied standards
EN 300 220-2, EN 301 489-1, -3
EN 60947-5-1, EN 61000-6-2, -6-3,
EN 55011, EN 55032
Enclosure
PC-ABS / RED, similar to RAL 3003 /
UL 94 HB
Cover
PC-ABS / GREY, similar to RAL 7015 /
UL 94 HB
ESD protection
yes
Degree of pollution
2
Temperature range
(also transport/storage)
-10°C ... +50°C (limited by portable
batteries)
Actuating force/
Actuation type
Weight force per roll: min. 1 kg,
Max. recovery time
125 ms (from the start of the crossing
with 1.0 m/s actuating speed to the
transmission of a radio telegram)
Actuating speed
max. 4.8 m/s (with 50 cm roller spacing),
max. 1.0 m/s (with 12 cm roller spacing)
Voltage supply
integrated device batteries (1.5 VDC),
automatic transmission of the battery
cell voltage in the transmission
telegram
Battery life
depends on actuation frequency
approx. 10 years
Mechanical life/
depending on roller weight force:
B 10d (10% nominal load)
up to 30 kg: >250,000 operations
up to 60 kg: approx. 50,000-250,000
operations
T M
max. 10 years, depending on existing
actuation frequency
Operation cycles
max. 12,000 telegrams with
repetitions/h;
SW922: max. 1,440 telegrams with
repetitions/h
Frequency
868.3 MHz (EU),
915.0 MHz (USA, Canada, Mexico),
917.0 MHz (Brazil),
or 916.5 MHz (Japan)
Transmission power
SW868/SW868-NET: <25 mW,
SW915/SW915-NET: <25 mW,
SW917/SW917-NET: <25 mW,
SW922/SW922-NET: <1 mW
Data rate
66 kbps
Channel bandwidth
SW868: 350 kHz, SW915,
SW917: 550 kHz, SW922: 520 kHz
Protocol
sWave.NET r
Wireless range
Approvals
Enclosure and cover are resistant to acids, saline solutions, cleaning
agents (soaps) and urea.
Enclosure and cover are conditionally resistant to hydrocarbons
and alcohols.
Enclosure and cover are not resistant to oils, greases, halogens
max. 60 kg
and alkalis.
Herstellungsdatum
Production date
I
2023
L
2026
11 / 16
SW868/915/917:
max. 450 m outdoors,
max. 40 m indoors
SW922:
max. 150 m outdoors,
max. 20 m indoors
EU: RED 2014/53/EU
USA: FCC Part 15.247:
XK5-RF Rx SW915
Canada: IC RSS-210:
5158A-RF Rx SW 915
Mexico: IFT - RCPSTRF17-1886
Brazil:
04172-18-06718
ö
Japan:
ARIB STD-T108: 204-610002
?
2J3 =>
KW 23 / 2024
CW 23 / 2024
J
2024
K
2025
M
2027
N
2028
