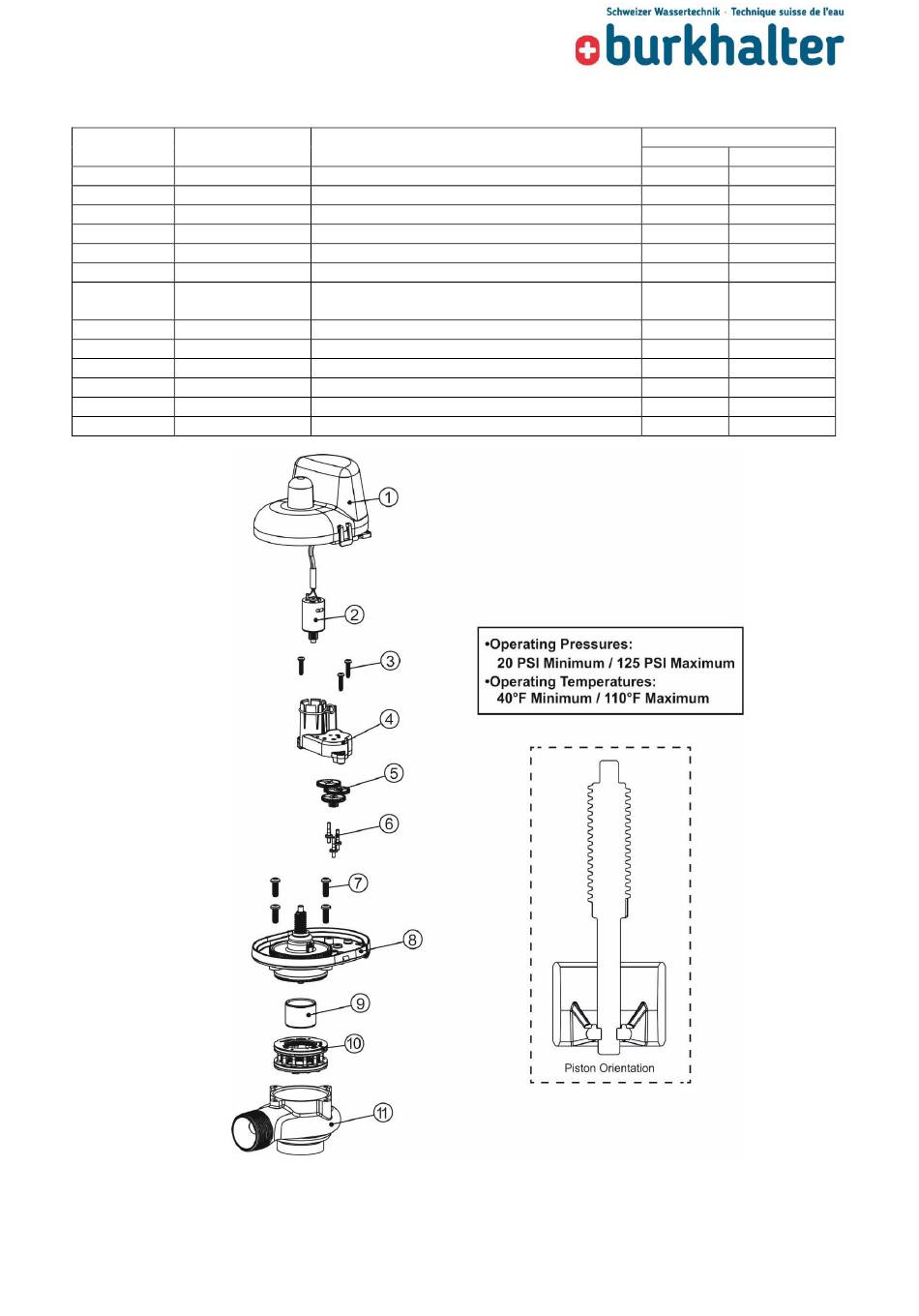

Steuerventil 1 1/2" (Neptun Magna)
Drawing
Order No.
No.
1
V3073
2
V3476
3
V3592
4
V3262-01
5
V3110-01
6
V3264
7
V3527
8
V3072
9
V3506-01
10
V3886
11
V3832-01
V3832BSPT-01
Not Shown
V3805
_______________________________________________________________________________________________________________________________________________
Seite 54 von 60
Description
MAV/NOHWBY COVER ASY
WS MOTOR ASY 8 FT
SCREW #8-1 PHPN T-25 SS
WS1.5&2ALT/2BY REDUCGEARCVRASY
WS1 DRIVE REDUCING GEAR PLAIN
WS2 BYPASS REDUCTION GEAR AXLE
SCREW 1/4-20 X 3/4 BHSCS SS
(5/32" HEX ALLEN WRENCH REQUIRED)
MAV/NOHWBY 1/125/15 DRIVE ASY
MAV/NOHRD 1/125/15 PISTON
WS15 NHWBY STACK ASY
WS15 NHWBY BODY M X F NPT
WS15 NHWBY BODY M X F BSPT
STRAIN RELIEF COVER KIT
14.0 Zeichnungen und Stücklisten der Steuerventile
Quantity
V3097
V3097BSPT
1
1
1
1
3
3
1
1
3
3
3
3
4
4
1
1
1
1
1
1
1
N/A
N/A
1
1
1
