Exsys EX-44044 Bedienungsanleitung

EX- EX EX - - 44044 44044 44044
JUMPER SETTING & CONNECTORS:
DB 9M:
Seriell 9 Pin D-SUB connector:
Pin Signal Pin
1 CDC 4
2 RXD 5
3 TXD 6
HARDWARE INSTALLATION :
Attention! Do not install the card before running the setup utility. Please install
the drivers for the card first. If not the card might not be installed correctly!!! If
you already do install the drivers please proceed with the following Instructions.
If you are ready with the jumper settings, please proceed with the following installation
instructions. Because the designs of computers are different, only general installation
instructions are given. Please refer your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Com-
puter and gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of your
computer. Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the expansion slot, and then gently but firmly, insert the card. Make
sure the card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION :
Windows 2000/XP & Server 2003 32-Bit:
Please insert the driver CD into your CD-Rom drive (for example D:\ ) and open the
folder D:\IO\MOSCHIP\MCS9901\XP32_2K_2003 on the CD.
Now start the file "PCIeSetup32.exe" by double click on it and follow the setup program
to finish installation process. After that shut down windows and follow the instructions for
the Hardware installation. After installing the card simply start your computer and the
card will be recognized automatically by your system.
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that open select >Device Manager<. Under "Ports (COM and LPT)" you should find
one more new "PCI Ports" as sample (COM3). If you see this or similar entries the card
is installed correctly.
CHANGE PORT NUMBER:
If you like to change the port number COM 3 to COM5, open the >Device Manager< click
at >COM3<, >Settings< and then >Advance<. There you can choose from COM 3 to 256.
Windows XP/Server 2003 64-Bit:
Please insert the driver CD into your CD-Rom drive (for example D:\ ) and open the
folder D:\IO\MOSCHIP\MCS9901\XP64 on the CD.
Now start the file "PCIeSetup64.exe" by double click on it and follow the setup program
to finish installation process. After that shut down windows and follow the instructions for
the Hardware installation. After installing the card simply start your computer and the
card will be recognized automatically by your system.
5
English English English EX EX- EX - - 44044 44044 44044
DRIVER INSTALLATION :
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
Signal Pin Signal that open select >Device Manager<. Under "Ports (COM and LPT)" you should find
one more new "PCI Ports" as sample (COM3). If you see this or similar entries the card
DTR 7 RTS
is installed correctly.
GROUND 8 CTS
CHANGE PORT NUMBER:
DSR 9 RI
If you like to change the port number COM 3 to COM5, open the >Device Manager< click
at >COM3<, >Settings< and then >Advance<. There you can choose from COM 3 to 256.
Windows Vista 32-Bit:
Please insert the driver CD into your CD-Rom drive (for example D:\ ) and open the
folder D:\IO\MOSCHIP\MCS9901\Vista32 on the CD.
Now start the file "PCIeSetup32.exe" by double click on it and follow the setup program
to finish installation process. After that shut down windows and follow the instructions for
the Hardware installation. After installing the card simply start your computer and the
card will be recognized automatically by your system.
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that open select >Device Manager<. Under "Ports (COM and LPT)" you should find
one more new "PCI Ports" as sample (COM3). If you see this or similar entries the card
is installed correctly.
CHANGE PORT NUMBER:
If you like to change the port number COM 3 to COM5, open the >Device Manager< click
at >COM3<, >Settings< and then >Advance<. There you can choose from COM 3 to 256.
Windows Vista 64-Bit:
Please insert the driver CD into your CD-Rom drive (for example D:\ ) and open the
folder D:\IO\MOSCHIP\MCS9901\Vista64 on the CD.
Now start the file "PCIeSetup64.exe" by double click on it and follow the setup program
to finish installation process. After that shut down windows and follow the instructions for
the Hardware installation. After installing the card simply start your computer and the
card will be recognized automatically by your system.
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that open select >Device Manager<. Under "Ports (COM and LPT)" you should find
one more new "PCI Ports" as sample (COM3). If you see this or similar entries the card
is installed correctly.
CHANGE PORT NUMBER:
If you like to change the port number COM 3 to COM5, open the >Device Manager< click
at >COM3<, >Settings< and then >Advance<. There you can choose from COM 3 to 256.
MAC:
The drivers for Mac are located in the following directory: (D:\IO\MOSCHIP\MCS9901
\Mac ) Please follow the installation procedure of your specific Mac OS Version.
LINUX:
The drivers for Linux are located in the following directory: (D:\IO\MOSCHIP\MCS9901
\Linux ) Please follow the installation procedure of your specific Linux Version.
MS-DOS:
Copy the DOS driver file from the CD (D:\IO\MOSCHIP\MCS9901\Dos\Version1.0.0.0\
SxDosln.exe) to the root directory on your hard disk (C:\). Modify the "AUTOEXEC.BAT"
with the following line:
C:\SxDosln -a
After you reboot DOS , you can see the card with COM3. The IRQ its set from System-
BIOS and can't be changed.
English English English

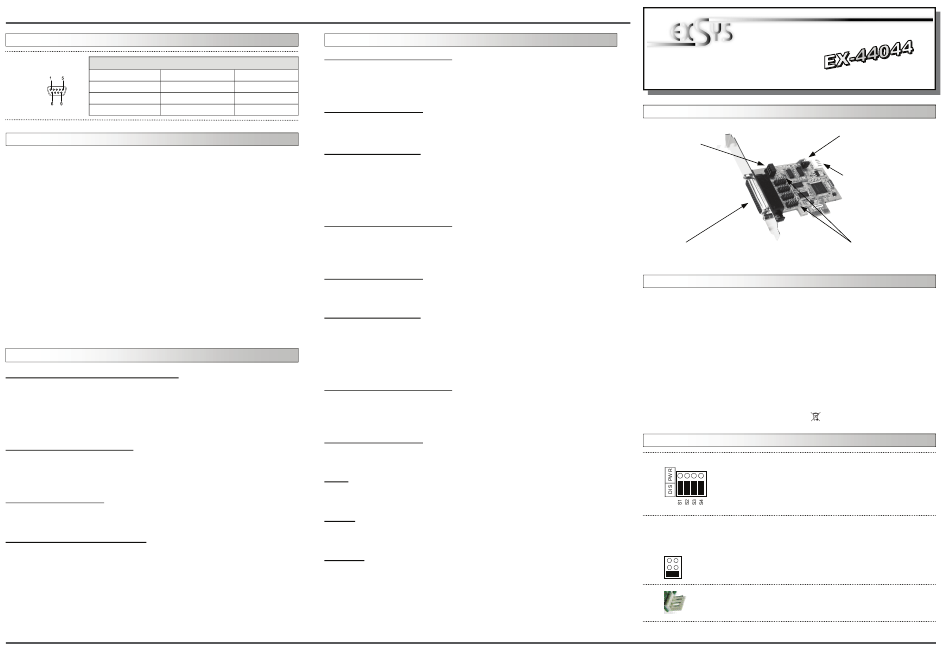

AUFBAU :
JP2 Power auf 9 Pin
S1-S4 44 Pin Stecker
BESCHREIBUNG & TECHNISCHE DATEN :
Die EX-44044 ist eine PCI-Express serielle RS-232 Karte mit 4 seriellen FIFO 16C550
Ports, für den Anschluss von High-Speed seriellen RS-232 Peripherie Geräten (z.B.
Terminal, Modem, Plotter usw.). Der serielle PCI-Express Bus unterstützt dabei optimal
die Leistung des schnellen 16C550 Chipsets mit 256byte FIFO Cache. Die Karte ge-
währleistet so eine sichere Datenübertragung und exzellente Performance von bis zu
115,2KBaud/s ! Sie unterstützt alle PCI-Express Slots von x1 bis x16. Es ist nicht mög-
lich die I/O Adressen und Interrupts manuell einzustellen, da die Einstellungen der Karte
vom System (BIOS) und beim Installieren des Betriebssystems automatisch vorgenom-
men werden.
Kompatibilität:
Betriebs Systeme:
Anschlüsse:
Lieferumfang:
Zertifikate:
JUMPER EINSTELLUNG & ANSCHLÜSSE:
JP2:
JP1:
J3:
6
Bedienungsanleitung
Bedienungsanleitung
Vers. 1.0 / 08.05.08
Stecker Ein/Aus
J4 - J7 Interner serieller Anschluss
Seriell Anschluss
PCI Express x1 bis x16
DOS/2000/XP/Server 2003 & 2008/Vista//Mac/Linux
4 x 9 Pin Sub-D Stecker
EX-44044, Treiber CD, Deutsche Anleitung, 4 x 9Pin Kabel
CE
/ FCC / RoHS / WEEE DE97424562 / WHQL
DIS = Am Pin 9 liegt das Standard Signal RI (Ring Indicator).
(Werkseinstellung)
PWR = Am Pin 9 kann jetzt eine Spannung von DC5V oder DC12V
eingestellt werden.
Die Einstellung der Spannung nehmen sie mit dem JP1 vor. Dies sollte
aber bei Standard Anwendungen nicht verstellt werden.
Wenn sie den Jumper JP2 für S1 auf PWR gesetzt haben, können sie
jetzt mit dem JP1 den Spannungswert einstellen. Es gibt 3 verschiede-
ne Spannungsquellen.
(Nur in Verbindung mit JP2 auf PWR!!!)
X 5V = 5Volt vom PC-Netzteil
X5V
X12V X 12V = 12Volt vom PC-Netzteil
I12V
I 12V = 12Volt vom Mainboard (STANDARD)
Für AUX Einstellung (JP1) muss J3 mit PC Netzteil verbunden werden!
1 +5V
2 GND Sonst wird die Karte nicht mit Strom versorgt.
3 GND
4 +12V
1
JP1 Jumper für die Strom-
quelle (Netzteil
oder PCI-Express Bus)
J3 Anschluss für den
Power vom Netzteil
