Switch Names and Functions

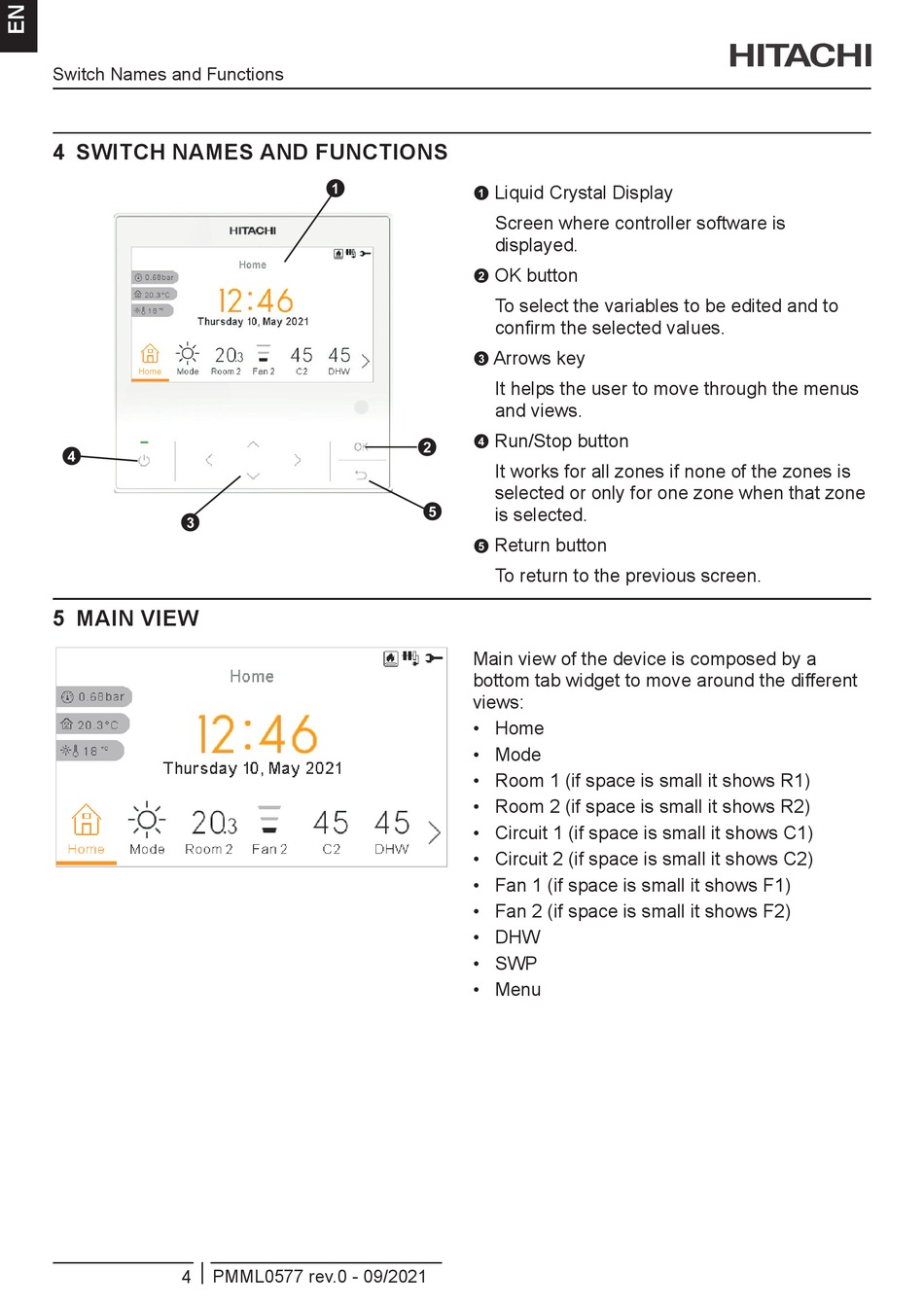

4 SWITCH NAMES AND FUNCTIONS



5 MAIN VIEW

4 PMML0577 rev.0 - 09/2021
 Liquid Crystal Display

Screen where controller software is
displayed.
OK button

To select the variables to be edited and to
confirm the selected values.
Arrows key

It helps the user to move through the menus
and views.
Run/Stop button


It works for all zones if none of the zones is
selected or only for one zone when that zone
is selected.

Return button

To return to the previous screen.
Main view of the device is composed by a
bottom tab widget to move around the different
views:
• Home
• Mode
• Room 1 (if space is small it shows R1)
• Room 2 (if space is small it shows R2)
• Circuit 1 (if space is small it shows C1)
• Circuit 2 (if space is small it shows C2)
• Fan 1 (if space is small it shows F1)
• Fan 2 (if space is small it shows F2)
• DHW
• SWP
• Menu
